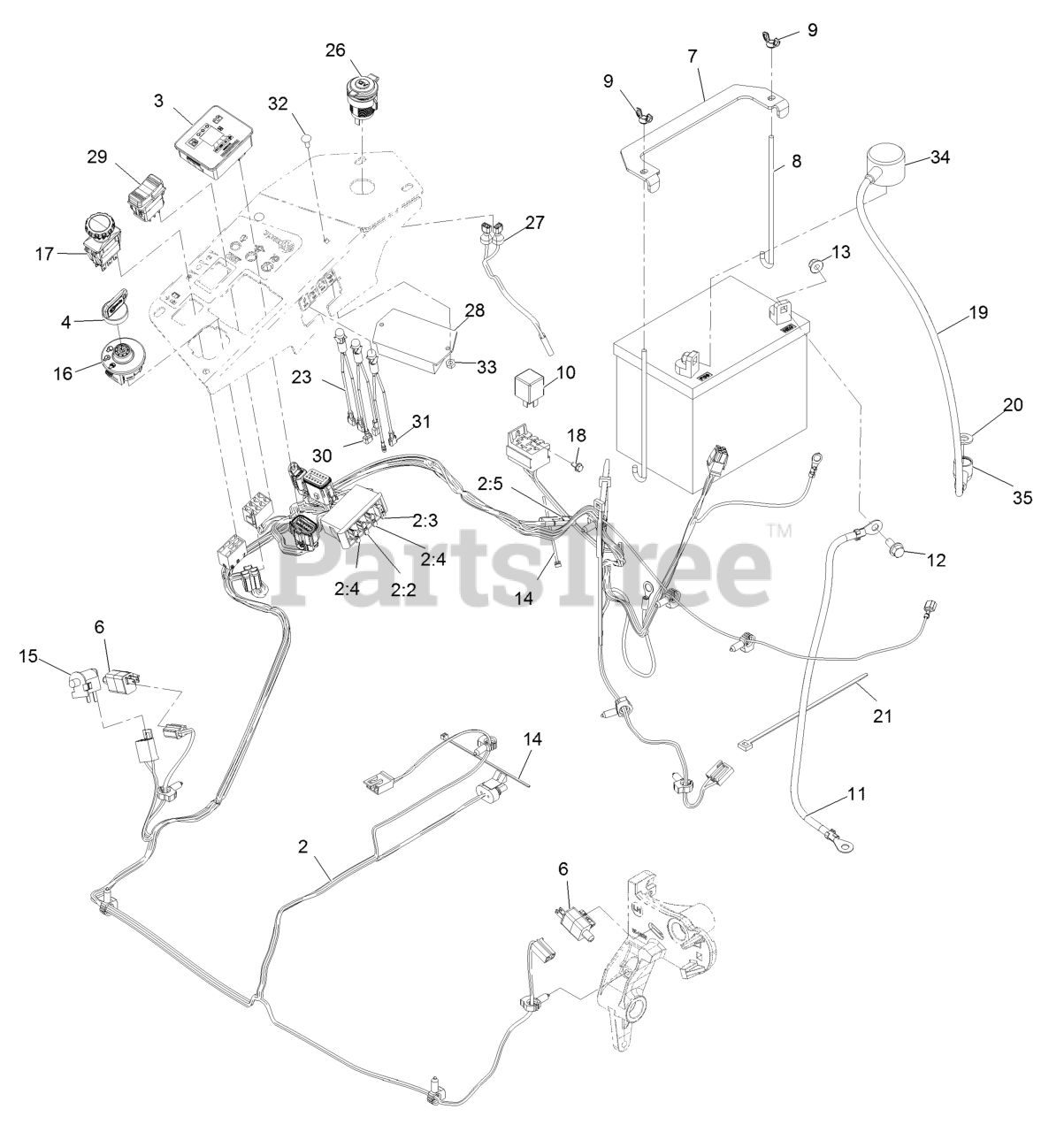

LZX980EKC726T0 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kohler ECV980 (SN: 315000000 - 315999999) (2015) Electrical Assembly Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, Kohler ECV980

Electrical Assembly Parts Diagram

  • Title

2

Exmark 126-1682

HARNESS-WIRE

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$300.99

$

Usually ships in 3-6 days

0

2:2

Exmark 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 6

0

2:3

Exmark 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

2:4

Exmark 109102

FUSE-BLADE, 25 AMP

$5.49

$

In Stock, only 1 left!

0

2:5

Exmark 116-0053

CAP-PLUG

$38.99

$

Usually ships in 3-6 days

0

3

Exmark 117-3882

FUEL/HOUR METER ASM

$156.99

$

In Stock, only 4 left!

0

4

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

4

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

6

Exmark 110-6765

SWITCH

$13.99

$

In Stock, Qty 20+

0

7

Exmark 116-0042-03

STRAP-TIE DOWN, BATTERY

$21.99

$

In Stock, only 4 left!

0

8

Exmark 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 17

0

9

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 20+

0

10

Exmark 1-643275

RELAY

$22.99

$

In Stock, Qty 20+

0

11

Exmark 114-1218

CABLE-BATTERY, NEGATIVE

$22.99

$

In Stock, only 1 left!

0

12

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

13

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

15

Exmark 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0

16

Exmark 117-2221

137-4100
(Superseded to 137-4100)

$37.99

$

In Stock, Qty 20+

0

17

Exmark 116-0124

SWITCH-PTO, 10 AMP
(Superseded to 135-3653)

$66.99

$

In Stock, Qty 20+

0

18

Exmark 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

19

Exmark 115-3864

CABLE-BATTERY, POSITIVE

$29.99

$

In Stock, only 2 left!

0

20

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

23

Exmark 1-643267

INDICATOR-LED, RED

$23.99

$

In Stock, Qty 5

0

26

Exmark 109-9376

RECEPTACLE-12V

$47.99

$

Usually ships in 3-6 days

0

27

Exmark 109-9693

HARNESS, RECEPTACLE 12V

$15.99

$

Usually ships in 3-6 days

0

28

Exmark 126-2722

CONTROLLER-RED

$308.99

$

Usually ships in 3-6 days

0

29

Exmark 116-9669

SWITCH-ROCKER

$31.99

$

In Stock, only 3 left!

0

30

Exmark 116-9651

LIGHT-LED, RED

$22.99

$

Usually ships in 3-6 days

0

31

Exmark 116-9652

LIGHT-LED, RED

$22.99

$

Usually ships in 3-6 days

0

32

Exmark 3229-34

SCREW-CARR

$2.49

$

Usually ships in 3-6 days

0

33

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Exmark 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, only 4 left!

0

35

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0
