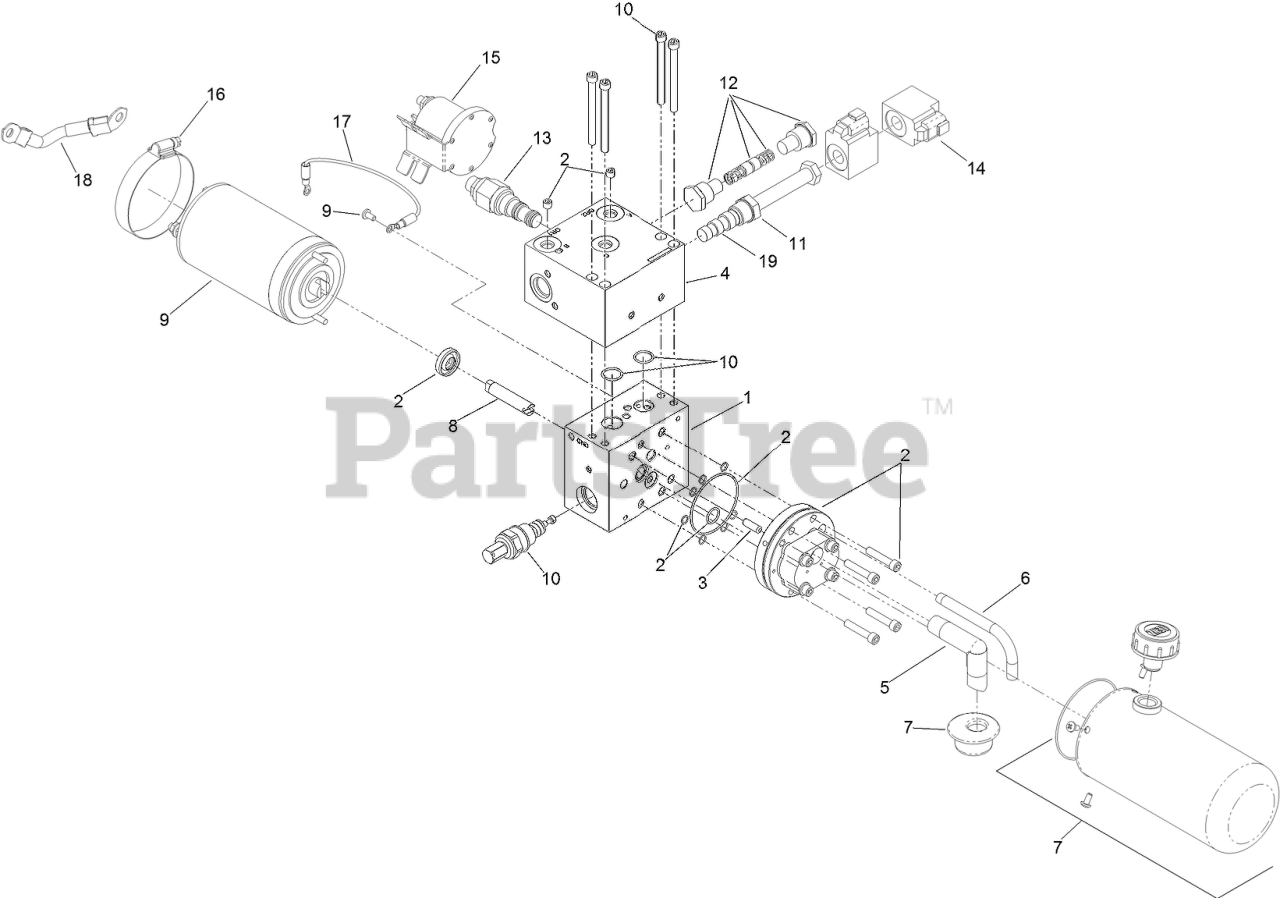

LZX980EKC96RW0 - Exmark 96" Lazer Z X-Series Zero-Turn Mower, Kohler (SN: 406294345 - 408644345) (Rev A) (2020) Power Unit Assembly Parts Diagram

96" Lazer Z X-Series Zero-Turn Mower, Kohler

Power Unit Assembly Parts Diagram

  • Title

1

Exmark 135-7603

Base Assy, M3298, 3.0 Mtr

$524.99

$

Usually ships in 3-6 days

0

2

Exmark 135-7604

P Assy,Kit,I,M3298,-100

$364.99

$

Usually ships in 3-6 days

0

3

Exmark 135-7605

Pin, Dowel, 1/4 X 3/4

$1.99

$

Usually ships in 3-6 days

0

4

Exmark 135-7606

Valve,Relief,Vm01,210-320 Bar

$64.99

$

Usually ships in 3-6 days

0

5

Exmark HYD09361

Inlet Tube,Bu

$3.49

$

Usually ships in 3-6 days

0

6

Exmark 135-7608

Tube, Return, 90DEG, 1/8NPTF

$12.99

$

Usually ships in 3-6 days

0

7

Exmark 135-7609

Parts Kit,Resv,Stl,3.375 X 7.0

$284.99

$

Usually ships in 3-6 days

0

8

Exmark 135-7610

Shaft, Intermediate, Micro, DC

$101.99

$

Usually ships in 3-6 days

0

9

Exmark 135-7611

Motor, DC, 12V, 3In, 1 Term

$734.99

$

Usually ships in 3-6 days

0

10

Exmark 135-7612

Parts Kit,Manifold Assy,M3200

$826.99

$

Usually ships in 3-6 days

0

11

Exmark 135-7613

Cartridge, 4W/3P, 3000PSI, Mc, #8

$391.99

$

Usually ships in 3-6 days

0

12

Exmark 135-7614

Parts Kit,Dbl Po Ck Vlv,4Inman

$392.99

$

Usually ships in 3-6 days

0

13

Exmark 135-7615

Counterbalance, 08, 5000-PSI

$223.99

$

Usually ships in 3-6 days

0

14

Exmark 135-7616

Coil, 12Vdc, 16W, Rect, Deutsch

$111.99

$

Usually ships in 3-6 days

0

15

Exmark HYD13624

Power Unit Solenoid Kit,ATV/Ms-UTV

$101.99

$

Usually ships in 3-6 days

0

16

Exmark HYD13634

Clamp,Hose,Worm GR,2.3-3.25

$30.99

$

Usually ships in 3-6 days

0

17

Exmark 135-7619

Wire Assy, Cntrl, 16Awg, Hs, Ring

$28.99

$

Usually ships in 3-6 days

0

18

Exmark 135-7620

Cable, Insulated, W/Lugs, 5In, 6GA

$42.99

$

Usually ships in 3-6 days

0

19

Exmark 135-7880

Parts Kit, Seal, 4W/3P Valve

$69.99

$

Usually ships in 3-6 days

0

99

Exmark 135-2834

RUBY TRAN-1 GAL

Note: Not illustrated

$62.99

$

Usually ships in 3-6 days

0
