LZX980EKC96RW0 - Exmark 96" Lazer Z X-Series Zero-Turn Mower, Kohler (SN: 406294345 - 408644345) (Rev C) (2020) Caster Tire Assembly Parts Diagram

96" Lazer Z X-Series Zero-Turn Mower, Kohler

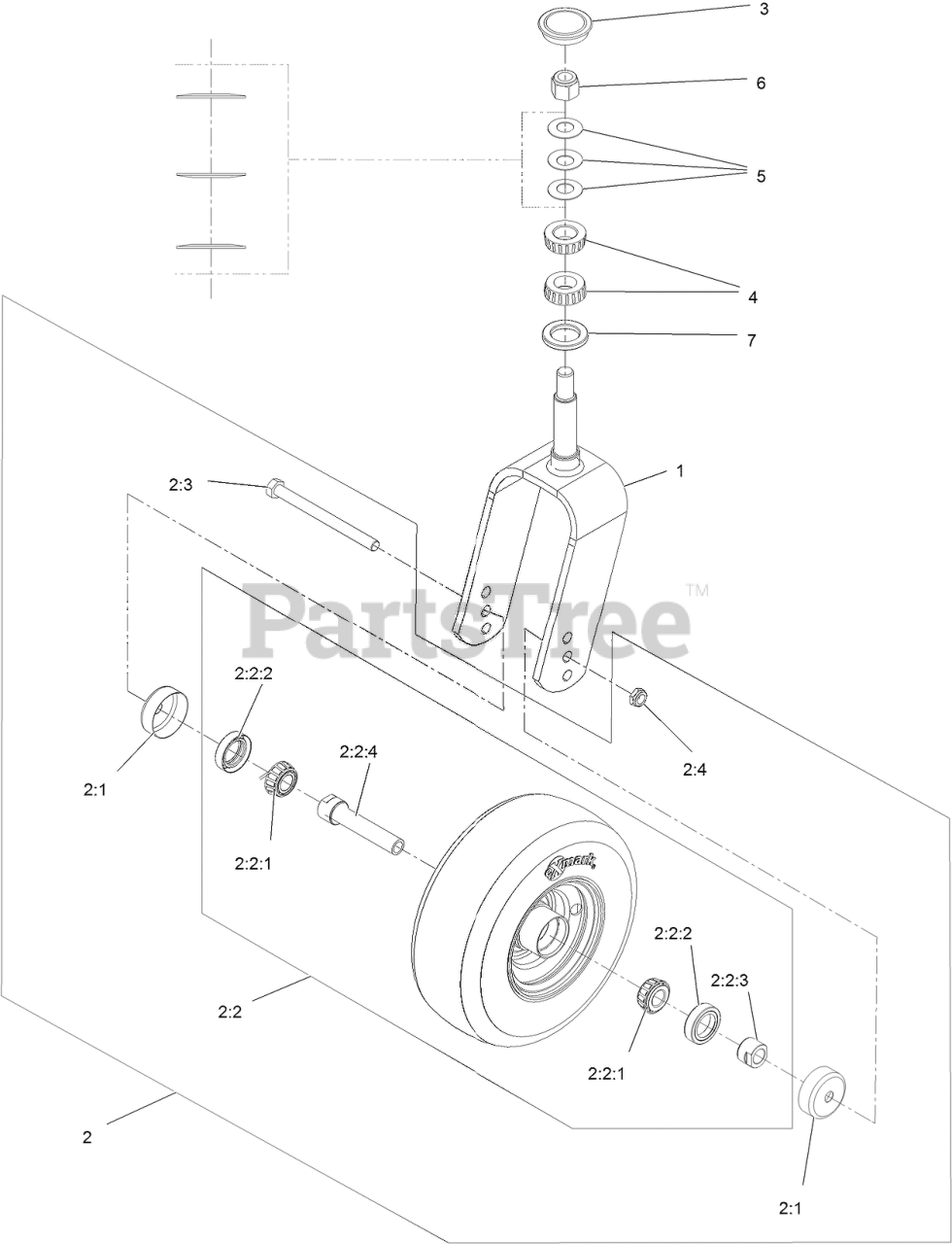

Caster Tire Assembly Parts Diagram

  • Title

1

Exmark 135-3794-01

CASTER-FORK

$217.99

$

In Stock, only 1 left!

0

2

Exmark 109-3524

ASM,WHEEL&BEARINGS

$266.99

$

In Stock, Qty 20+

0

2:1

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

2:2

Wheel And Bearing ASM

Note: Not serviced separately

$

$

Not available

2:2:1

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$22.99

$

In Stock, Qty 20+

0

2:2:2

Exmark 103-0063

SEAL-CASTER

$9.49

$

In Stock, Qty 20+

0

2:2:3

Exmark 103-3051

SPACER-NUT

$9.49

$

In Stock, Qty 20+

0

2:2:4

Exmark 126-5359

CASTER AXLE ASM

$19.99

$

In Stock, Qty 15

0

2:3

Exmark 325-20

SCREW-HH

$8.49

$

In Stock, Qty 20+

0

2:4

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

3

Exmark 103-4882

CAP-GREASE

$8.49

$

In Stock, Qty 20+

0

4

Exmark 1-543509

Cone-Bearing Tapered Roller

$14.99

$

In Stock, Qty 20+

0

5

Exmark 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

6

Exmark 3296-51

NUT-LOCK, NI

$6.99

$

In Stock, Qty 20+

0

7

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 15

0
