LZX980EKC96RW0 - Exmark 96" Lazer Z X-Series Zero-Turn Mower, Kohler (SN: 406294345 - 408644345) (Rev C) (2020) Center Deck Idler Assembly Parts Diagram

96" Lazer Z X-Series Zero-Turn Mower, Kohler

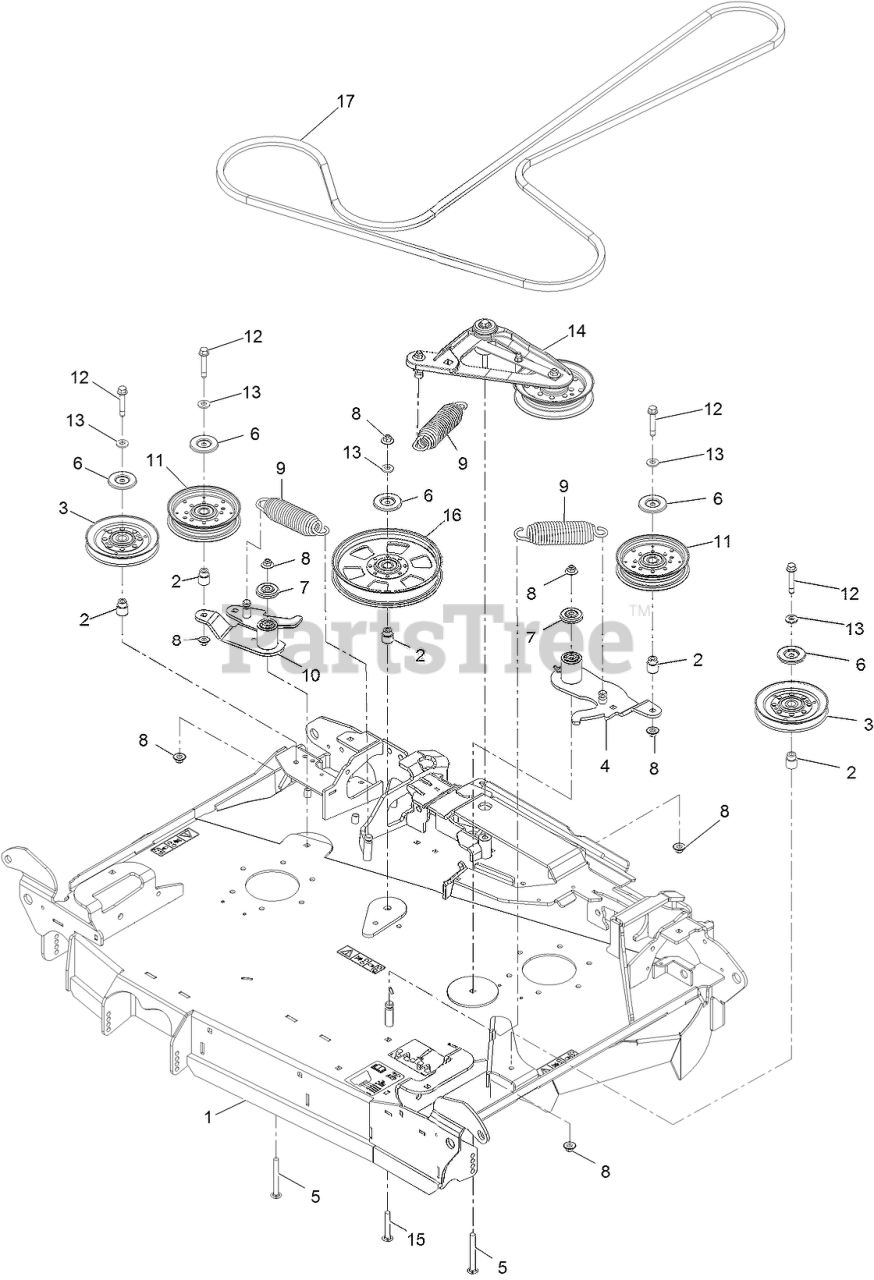

Center Deck Idler Assembly Parts Diagram

  • Title

1

Exmark 135-2636

ASM-DECK, CTR 96

$2118.50

$

Usually ships in 4-12 days

0

2

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

3

Exmark 126-2960

IDLER-V

$68.99

$

In Stock, only 2 left!

0

4

Exmark 126-9435

IDLER ASM

$192.99

$

Usually ships in 3-6 days

0

5

Exmark 116-1502

BOLT-SHOULDER, CARRIAGE 3/8-16 X 3 1/2

$8.49

$

In Stock, only 2 left!

0

6

Exmark 126-8043

SHIELD-DUST

$2.99

$

In Stock, Qty 20+

0

7

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 6

0

8

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

9

Exmark 116-6317

SPRING-EXTENSION

$29.99

$

In Stock, Qty 20+

0

10

Exmark 126-9438

IDLER ASM

$174.99

$

Usually ships in 3-6 days

0

11

Exmark 126-9187

PULLEY-IDLER, FLAT

$63.99

$

In Stock, Qty 8

0

12

Exmark 126-2956

SCREW-HHF

$6.99

$

In Stock, only 2 left!

0

13

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

14

Exmark 126-1720

DECK IDLER ASM

$270.99

$

In Stock, only 1 left!

0

15

Exmark 3231-44

SCREW-CARR

$2.99

$

Usually ships in 3-6 days

0

16

Exmark 116-9639

PULLEY-IDLER, FLAT

$101.99

$

In Stock, Qty 20+

0

17

Exmark 126-6440

V-BELT

$147.99

$

In Stock, Qty 8

0
