LZX980EKC96RW0 - Exmark 96" Lazer Z X-Series Zero-Turn Mower, Kohler (SN: 411294212 - 413950473) (Rev A) (2022) Engine Assembly Parts Diagram

96" Lazer Z X-Series Zero-Turn Mower, Kohler

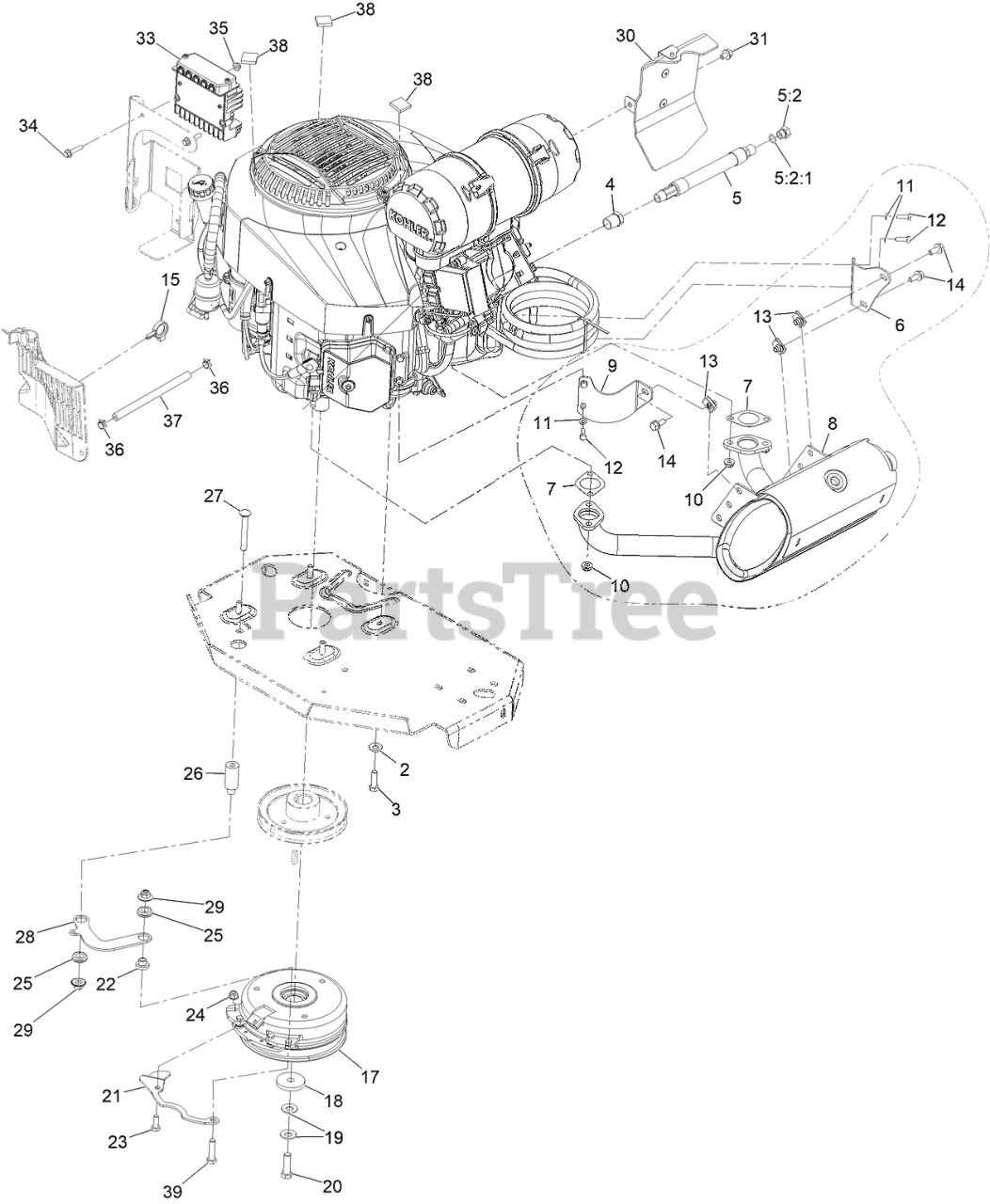

Engine Assembly Parts Diagram

  • Title

2

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

3

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

4

Exmark 103-1390

BUSHING

$6.99

$

Usually ships in 3-6 days

0

5

Exmark 135-7298

Oil Drain Hose ASM

$55.99

$

Usually ships in 3-6 days

0

5:2

Exmark 353-508

PLUG-HH

$9.49

$

In Stock, only 2 left!

0

5:2:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

6

Exmark 116-9048

BRACKET-MUFFLER

$23.99

$

Usually ships in 3-6 days

0

7

Exmark 126-0359

GASKET-EXHAUST

$5.99

$

Usually ships in 3-6 days

0

8

Exmark 126-4645

MUFFLER-940-980 KOH EFI

$604.99

$

Usually ships in 3-6 days

0

9

Exmark 126-5620

BRACKET-MUFFLER, FRONT

$18.99

$

Usually ships in 3-6 days

0

10

Exmark 116-9626

NUT-FLANGE, LOCK

$1.49

$

Usually ships in 3-6 days

0

11

Exmark 1-303435

WASHER-SPRING

$1.99

$

In Stock, Qty 20+

0

12

Exmark 116-4295

SCREW-HH M6-1 X 20Mm W/Patch

$5.49

$

In Stock, only 3 left!

0

13

Exmark 94-2413

NUT-U

$2.99

$

In Stock, Qty 14

0

14

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

15

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 2 left!

0

17

Exmark 126-4185

CLUTCH KIT

$754.99

$

In Stock, only 1 left!

0

18

Exmark 109-6919

WASHER-CLUTCH

$8.99

$

In Stock, Qty 5

0

19

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 7

0

20

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

$5.49

$

In Stock, only 2 left!

0

21

Exmark 116-3331-01

BELT-GUIDE

$28.99

$

In Stock, only 1 left!

0

22

Exmark 116-3318

SPACER

$20.99

$

In Stock, only 2 left!

0

23

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 7

0

25

Exmark 93-5108

GROMMET-RUBBER

$17.99

$

In Stock, only 2 left!

0

26

Exmark 116-3319

SPACER

$26.99

$

Usually ships in 3-6 days

0

27

Exmark 3231-42

SCREW-CARR

$2.99

$

In Stock, only 3 left!

0

28

Exmark 116-3317-01

LINK-ANCHOR, CLUTCH

$17.99

$

In Stock, only 2 left!

0

29

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

30

Exmark 135-7326

Baffle ASM

$115.99

$

Usually ships in 3-6 days

0

31

Exmark 68-9410

Screw-HHF

$9.49

$

Usually ships in 3-6 days

0

33

Exmark 135-4434

Regulator And Rectifier ASM

$536.99

$

In Stock, only 1 left!

0

34

Exmark 127-8639

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

35

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

36

Exmark 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

37

Exmark 109-0303

HOSE-FUEL

$6.99

$

Usually ships in 3-6 days

0

38

Exmark 93-9155

Velcro

$1.99

$

Usually ships in 3-6 days

0

39

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
