LZX980EKC96RW0 - Exmark 96" Lazer Z X-Series Zero-Turn Mower, Kohler (SN: 411294212 - 413950473) (Rev A) (2022) Hood Assembly Parts Diagram

96" Lazer Z X-Series Zero-Turn Mower, Kohler

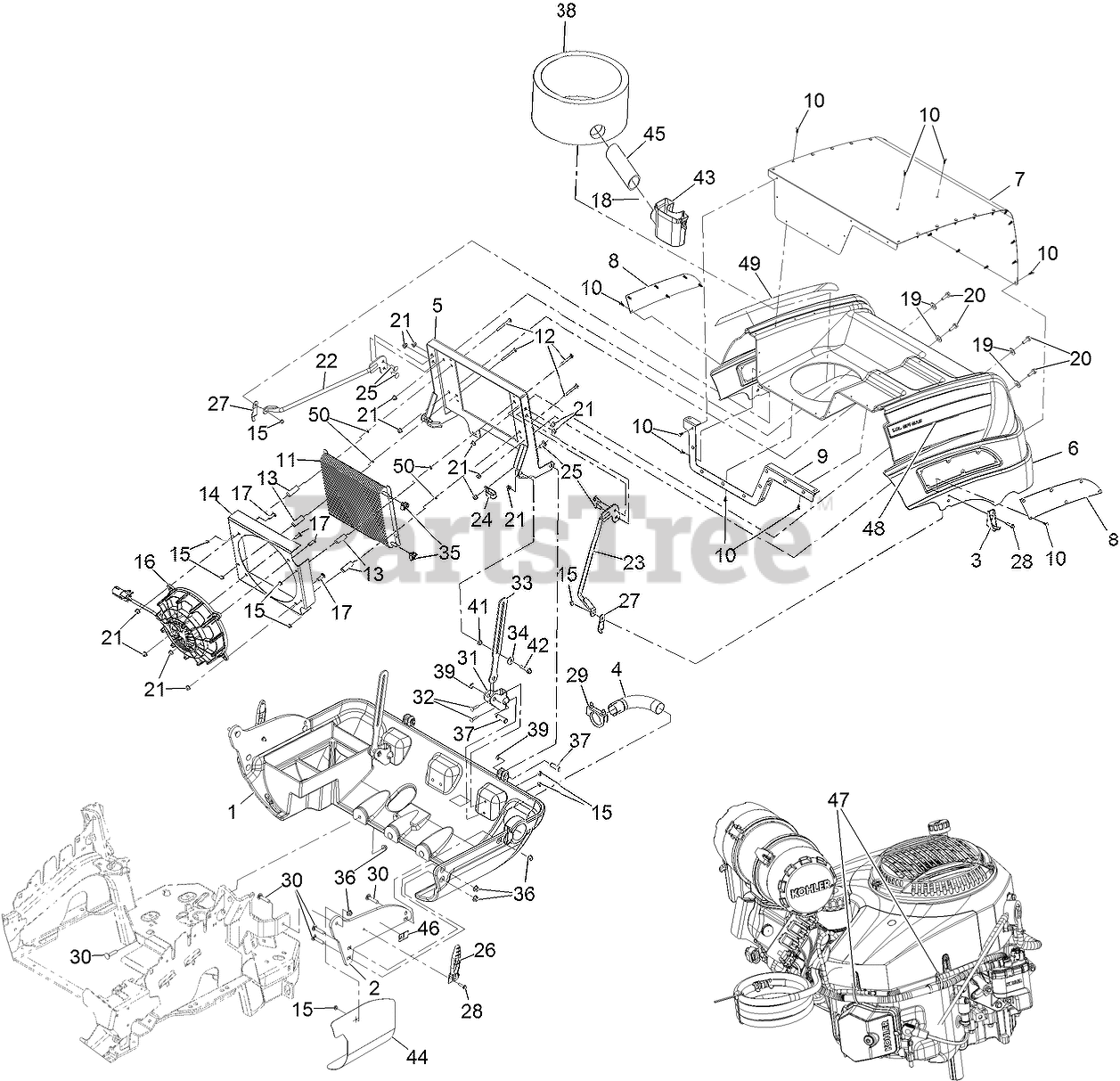

Hood Assembly Parts Diagram

  • Title

1

Exmark 135-3340-03

Casting-Lower, Rear

$1827.99

$

Usually ships in 3-6 days

0

2

Exmark 135-3344-03

Plate-Mount

$42.99

$

Usually ships in 3-6 days

0

3

Exmark 126-8672

LATCH-CATCH

$5.49

$

Usually ships in 3-6 days

0

4

Exmark 135-1459

Tube-Exhaust

$46.99

$

Usually ships in 3-6 days

0

5

Exmark 135-3317-03

Mount-Cooler

$145.99

$

Usually ships in 3-6 days

0

6

Exmark 135-3318

HOOD-EXMARK-GRAY

$1297.99

$

Usually ships in 3-6 days

0

7

Exmark 135-3324-03

Screen-Intake

$201.99

$

Usually ships in 3-6 days

0

8

Exmark 135-3332-03

Screen-Intake

$25.99

$

Usually ships in 3-6 days

0

9

Exmark 135-4437-03

Cap-Perforation, Hood

$46.99

$

Usually ships in 3-6 days

0

10

Exmark 120-6737

Plug-Plastic

$0.99

$

Usually ships in 3-6 days

0

11

Exmark 135-1223

Cooler-Oil

$236.99

$

Usually ships in 3-6 days

0

12

Exmark 3229-8

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

13

Exmark 95-6448

SPACER

$6.49

$

Usually ships in 3-6 days

0

14

Exmark 135-2391-03

Mount-Fan

$61.99

$

Usually ships in 3-6 days

0

15

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

16

Exmark 135-0877

Fan

$699.99

$

Usually ships in 3-6 days

0

17

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

18

Exmark 135-7836

CLAMP

$7.99

$

Usually ships in 3-6 days

0

19

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

20

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

21

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Exmark 135-4892

Support-Hood, RH

$69.99

$

Usually ships in 3-6 days

0

23

Exmark 135-4874

Support-Hood, LH

$69.99

$

Usually ships in 3-6 days

0

24

Exmark 120-1959

CLAMP

$3.99

$

Usually ships in 3-6 days

0

25

Exmark 3230-10

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

26

Exmark 103-2898

LATCH-RUBBER

$36.99

$

In Stock, only 3 left!

0

27

Exmark 135-3353

Stop-Hood

$7.49

$

Usually ships in 3-6 days

0

28

Exmark 120-4654

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

29

Exmark 18-2130

CLAMP

$39.99

$

Usually ships in 3-6 days

0

30

Exmark 3231-5

SCREW-CARR

$1.99

$

In Stock, Qty 20+

0

31

Exmark 135-4438-03

Bracket-Mount, Slide

$18.99

$

Usually ships in 3-6 days

0

32

Exmark 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

33

Exmark 135-3321-03

Slide-Hood

$16.99

$

Usually ships in 3-6 days

0

34

Exmark 52-2900

WASHER-PLASTIC

$1.49

$

In Stock, only 2 left!

0

35

Exmark 135-7984

Clamp-Hose

$3.49

$

Usually ships in 3-6 days

0

36

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

37

Exmark 135-3347

Pin

$8.99

$

Usually ships in 3-6 days

0

38

Exmark 135-3319

Foam-Inlet, Air

$135.99

$

In Stock, only 2 left!

0

39

Exmark 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 19

0

41

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

42

Exmark 115-1794

SCREW-HHF

$2.49

$

In Stock, Qty 7

0

43

Exmark 135-7203

Mount-Hose

$52.99

$

Usually ships in 3-6 days

0

44

Exmark 135-7312

Barrier-Heat

$47.99

$

Usually ships in 3-6 days

0

45

Exmark 135-7442

Hose-Air Intake

$18.99

$

Usually ships in 3-6 days

0

46

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 2 left!

0

47

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

48

Exmark 135-7933

DECAL-LH STRIPE

$20.99

$

Usually ships in 3-6 days

0

49

Exmark 135-7934

DECAL-RH STRIPE

$20.99

$

Usually ships in 3-6 days

0

50

Exmark 32115-15

Nut-Push

$1.49

$

In Stock, Qty 20+

0
