Exmark LZX980EKC96RW0 - Exmark 96" Lazer Z X-Series Zero-Turn Mower, Kohler (SN: 413950474 - 999999999) (Rev A) (2023) Engine Assembly Parts Lookup with Diagrams

1

Engine-Kohler Ecv980 - 3022

Note: Not serviced separately | Obtain parts from www.kohlerplus.com

$

Not available 

2

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

3

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

4

Exmark 103-1390

BUSHING

$6.49

$

Usually ships in 3-6 days

5

Exmark 135-7298

Oil Drain Hose ASM

$46.99

$

Usually ships in 3-6 days

5:2

Exmark 353-508

PLUG-HH

$8.49

$

In Stock, only 1 left!

5:2:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 20+

6

Exmark 116-9048

BRACKET-MUFFLER

$22.99

$

Usually ships in 3-6 days

7

Exmark 126-0359

GASKET-EXHAUST

$5.49

$

Usually ships in 3-6 days

8

Exmark 126-4645

MUFFLER-940-980 KOH EFI

$560.99

$

Usually ships in 3-6 days

9

Exmark 126-5620

BRACKET-MUFFLER, FRONT

$15.99

$

Usually ships in 3-6 days

10

Exmark 116-9626

NUT-FLANGE, LOCK

$1.49

$

Usually ships in 3-6 days

11

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

12

Exmark 116-4295

SCREW-HH M6-1 X 20Mm W/Patch

$5.49

$

Usually ships in 3-6 days

13

Exmark 94-2413

NUT-U

$2.99

$

In Stock, only 2 left!

14

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, only 4 left!

15

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

17

Exmark 126-4185

CLUTCH KIT

$771.99

$

In Stock, only 1 left!

18

Exmark 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 15

19

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

20

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

$5.49

$

Usually ships in 3-6 days

21

Exmark 116-3331-01

BELT-GUIDE

$26.99

$

Usually ships in 3-6 days

22

Exmark 116-3318

SPACER

$19.99

$

In Stock, only 2 left!

23

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

24

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

25

Exmark 93-5108

GROMMET-RUBBER

$15.99

$

In Stock, only 1 left!

26

Exmark 116-3319

SPACER

$25.99

$

In Stock, only 1 left!

27

Exmark 3231-42

SCREW-CARR

$2.99

$

In Stock, Qty 20+

28

Exmark 116-3317-01

LINK-ANCHOR, CLUTCH

$15.99

$

Usually ships in 3-6 days

29

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

30

Exmark 135-7326

Baffle ASM

$94.99

$

Usually ships in 3-6 days

31

Exmark 68-9410

Screw-HHF

$9.49

$

Usually ships in 3-6 days

32

Exmark 135-7731-03

Mount-Regulator

$17.99

$

Usually ships in 3-6 days

33

Exmark 135-4434

Regulator And Rectifier ASM

$256.99

$

Usually ships in 3-6 days

34

Exmark 127-8639

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

35

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

36

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

37

Exmark 109-0303

HOSE-FUEL

$6.49

$

Usually ships in 3-6 days

38

Exmark 93-9155

Velcro

$1.99

$

Usually ships in 3-6 days

39

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

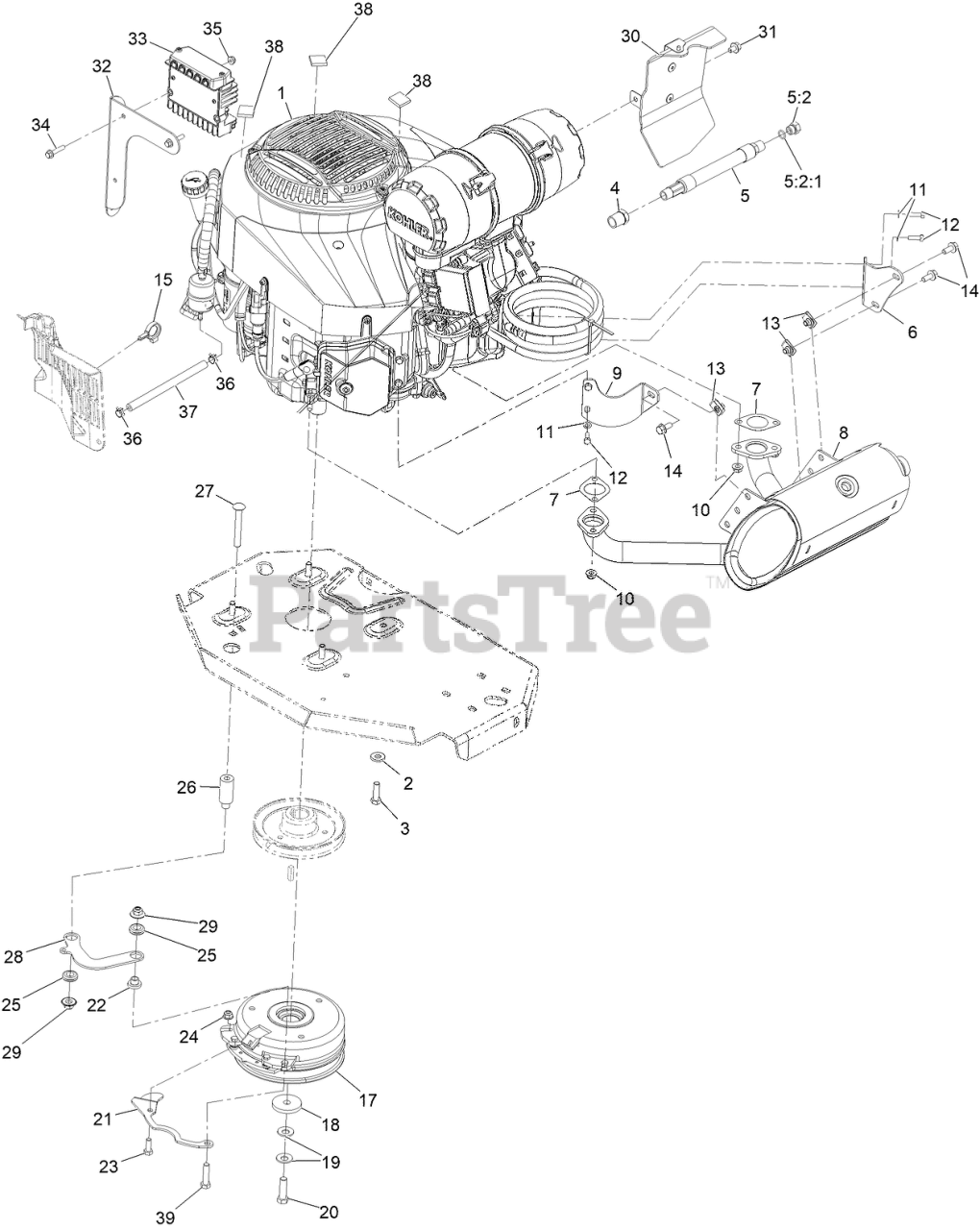

LZX980EKC96RW0 - Exmark 96" Lazer Z X-Series Zero-Turn Mower, Kohler (SN: 413950474 - 999999999) (Rev A) (2023) Engine Assembly Parts Diagram

Engine Assembly Parts Diagram
