LZX980EKC96RW0 - Exmark 96" Lazer Z X-Series Zero-Turn Mower, Kohler (SN: 417930746 & Above) (Rev A) (2025) Center Deck Fold Assembly Parts Diagram

96" Lazer Z X-Series Zero-Turn Mower, Kohler

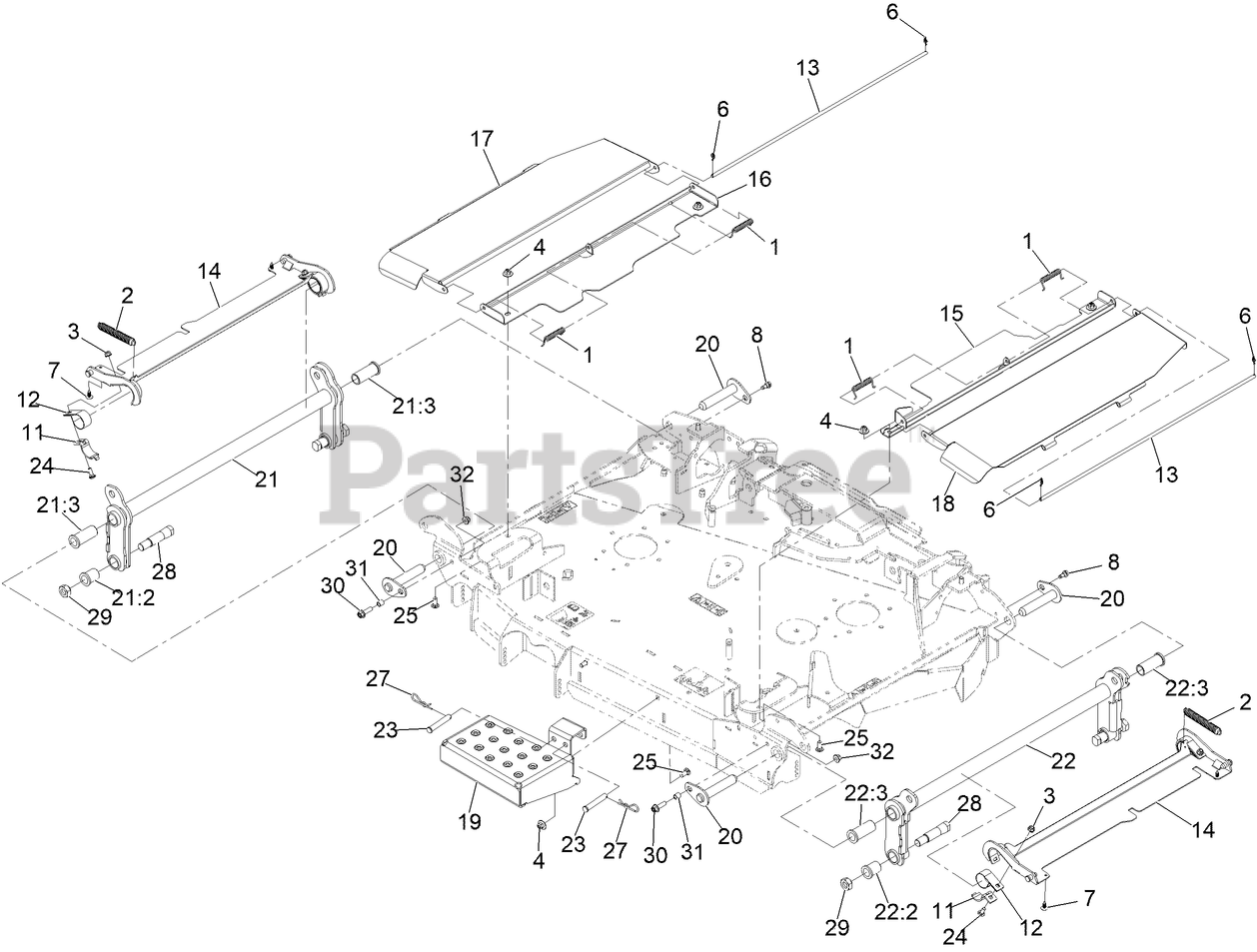

Center Deck Fold Assembly Parts Diagram

  • Title

1

Exmark 99-5293

SPRING-TORSION

$11.99

$

In Stock, Qty 6

0

2

Exmark 103-4813

SPRING

$6.99

$

In Stock, only 2 left!

0

3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 7

0

4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

6

Exmark 116-6639

PIN-COTTER, LOCKING

$1.49

$

Usually ships in 3-6 days

0

7

Exmark 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

8

Exmark 126-4424

SCREW-SHOULDER

$2.99

$

In Stock, Qty 14

0

11

Exmark 126-9764

PLATE-RETAINER, BEARING

$14.99

$

Usually ships in 3-6 days

0

12

Exmark 135-0584

BEARING-STRAP, NYLON

$6.99

$

Usually ships in 3-6 days

0

13

Exmark 135-1023

COVER-ROD, PIVOT

$41.99

$

Usually ships in 3-6 days

0

14

Exmark 135-2630-01

COVER-WING

$216.99

$

Usually ships in 3-6 days

0

15

Exmark 135-2651-01

SHIELD-CENTER, LH

$76.99

$

Usually ships in 3-6 days

0

16

Exmark 135-2652-01

SHIELD-CENTER, RH

$64.99

$

Usually ships in 3-6 days

0

17

Exmark 135-6174-03

Panel-Shield Hinge, LH

$105.99

$

Usually ships in 3-6 days

0

18

Exmark 135-6178-03

Shield-Center, RH

$105.99

$

Usually ships in 3-6 days

0

19

Exmark 146-4898-01

Plate-Step

$

$

Currently unavailable

20

Exmark 146-2595

ASM-DECK PIN

$41.99

$

Usually ships in 0 days

0

21

Exmark 142-6419

ASM-RH FOLD ARM

$875.99

$

Usually ships in 3-6 days

0

21:2

Exmark 142-4794

BUSHING-FLANGED

$17.99

$

In Stock, Qty 5

0

21:3

Exmark 146-2299

BUSHING-FLANGED

$17.99

$

In Stock, only 3 left!

0

22

Exmark 142-6428

ASM-LH FOLD ARM

$875.99

$

Usually ships in 0 days

0

22:2

Exmark 142-4794

BUSHING-FLANGED

$17.99

$

In Stock, Qty 5

0

22:3

Exmark 146-2299

BUSHING-FLANGED

$17.99

$

In Stock, only 3 left!

0

23

Exmark 283-55

PIN-CLEVIS

$12.99

$

In Stock, only 4 left!

0

24

Exmark 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

25

Exmark 3231-12

BOLT-CARR

$6.99

$

In Stock, only 4 left!

0

27

Exmark 3290-355

PIN-HAIR

$2.99

$

In Stock, only 3 left!

0

28

Exmark 146-2893

BOLT-PIVOT PIN

$38.99

$

Usually ships in 0 days

0

29

Exmark 146-3191

NUT-LUG

$16.99

$

Usually ships in 0 days

0

30

Exmark 135-4712

SCREW, HHF

$1.49

$

Usually ships in 3-6 days

0

31

Exmark 103-1166

SPACER-TUBE, PUMP LINK

$6.99

$

In Stock, only 3 left!

0

32

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
