LZX980EKC96RW0 - Exmark 96" Lazer Z X-Series Zero-Turn Mower, Kohler (SN: 417930746 & Above) (Rev A) (2025) Center Folding Deck Hydraulic Assembly Parts Diagram

96" Lazer Z X-Series Zero-Turn Mower, Kohler

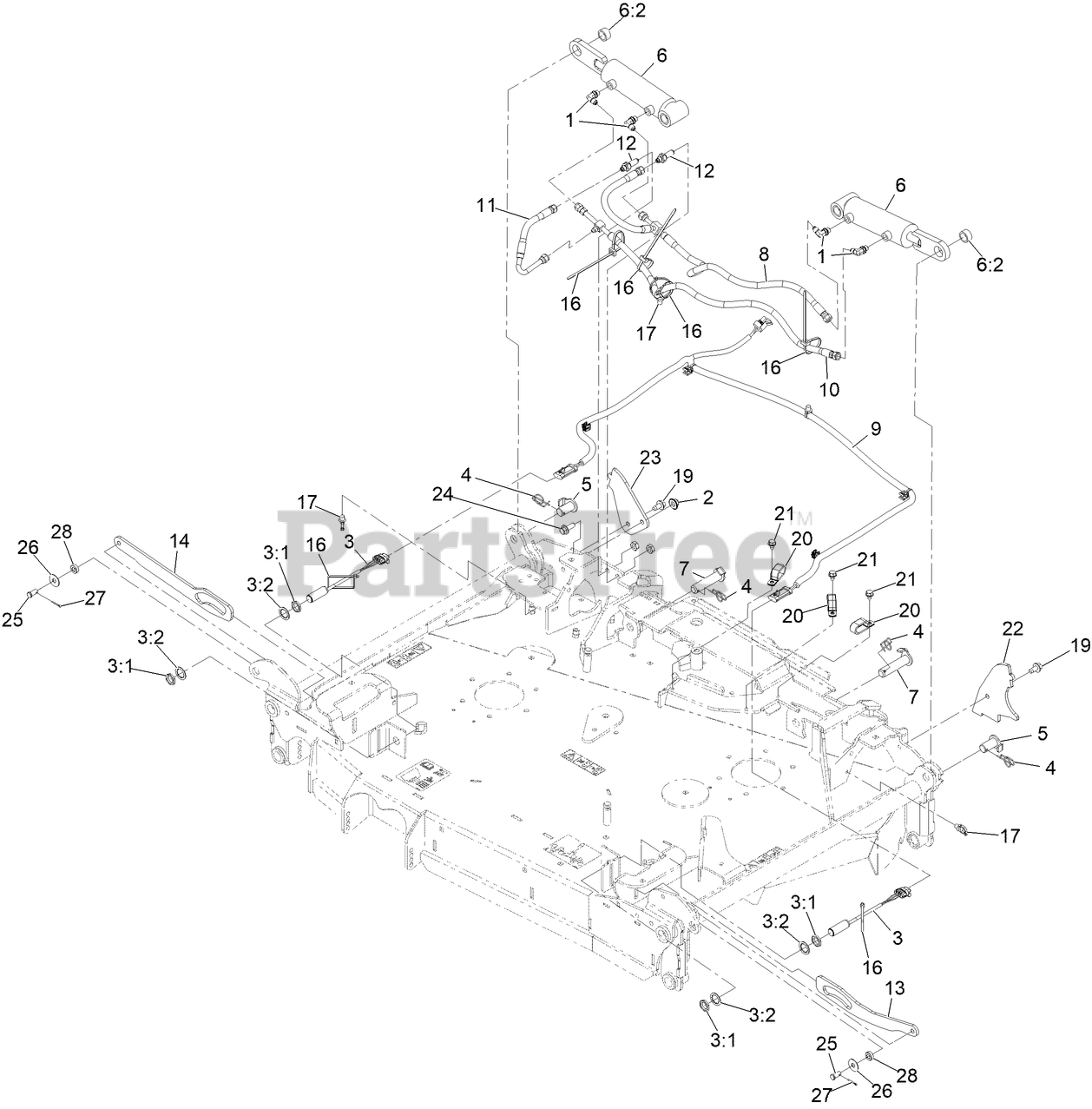

Center Folding Deck Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 109-0760

ADAPTER,90 DEG

$29.99

$

Usually ships in 3-6 days

0

2

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

3

Exmark 115-5300

PROXIMITY SWITCH ASM

$166.99

$

In Stock, Qty 20+

0

3:1

Exmark 117-3207

NUT-HEX

$22.99

$

In Stock, only 2 left!

0

3:2

Exmark 117-3208

WASHER-LOCK, INTERNAL TOO

$12.99

$

In Stock, only 4 left!

0

4

Exmark 142-4002

PIN-LOCKING COTTER

$2.99

$

In Stock, Qty 5

0

5

Exmark 142-3999

PIN-CYLINDER

$38.99

$

In Stock, Qty 5

0

6

Exmark 142-6609

CYL-Deck Fold

$731.99

$

In Stock, only 2 left!

0

6:2

Exmark 142-5808

BUSHING-0.75X1.00X0.50 LONG

$21.99

$

In Stock, Qty 14

0

7

Exmark 142-5437

ASM-CYL PIN BASE

$38.99

$

Usually ships in 3-6 days

0

8

Exmark 142-6790

Hose ASM

$265.99

$

Usually ships in 3-6 days

0

9

Exmark 146-4773

Harness-Wire

$124.99

$

Usually ships in 3-6 days

0

10

Exmark 142-6789

Hose ASM

$242.99

$

In Stock, only 3 left!

0

11

Exmark 135-4526

Hose ASM

$103.99

$

Usually ships in 3-6 days

0

12

Exmark 135-5077

Fiting-Straight

$19.99

$

Usually ships in 3-6 days

0

13

Exmark 146-6211

Plate-LH Flag Strap

$29.99

$

Usually ships in 3-6 days

0

14

Exmark 146-4534

Strap-RH Flag

$29.99

$

Usually ships in 3-6 days

0

16

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

17

Exmark 32180-030

CLIP-TIE

$5.49

$

In Stock, only 3 left!

0

19

Exmark 110-9380

SCREW-HWH

$2.99

$

In Stock, only 2 left!

0

20

Exmark 120-1959

CLAMP

$3.99

$

Usually ships in 3-6 days

0

21

Exmark 9266934

SCREW

$10.99

$

In Stock, only 2 left!

0

22

Exmark 135-2628-01

BRACKET-DECK STOP, LH

$25.99

$

Usually ships in 3-6 days

0

23

Exmark 135-2629-01

BRACKET-DECK STOP, RH

$25.99

$

Usually ships in 3-6 days

0

24

Exmark 131-2220

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

25

Exmark 283-85

PIN-CLEVIS

$22.99

$

Usually ships in 3-6 days

0

26

Exmark 52-2860

WASHER

$1.49

$

In Stock, Qty 20+

0

27

Exmark 120-9716

Pin-Cotter

$0.99

$

Usually ships in 3-6 days

0

28

Exmark 142-6724

BUSHING

$13.99

$

Usually ships in 3-6 days

0
