LZX980EKC96RW0 - Exmark 96" Lazer Z X-Series Zero-Turn Mower, Kohler (SN: 417930746 & Above) (Rev A) (2025) Electrical Assembly Parts Diagram

96" Lazer Z X-Series Zero-Turn Mower, Kohler

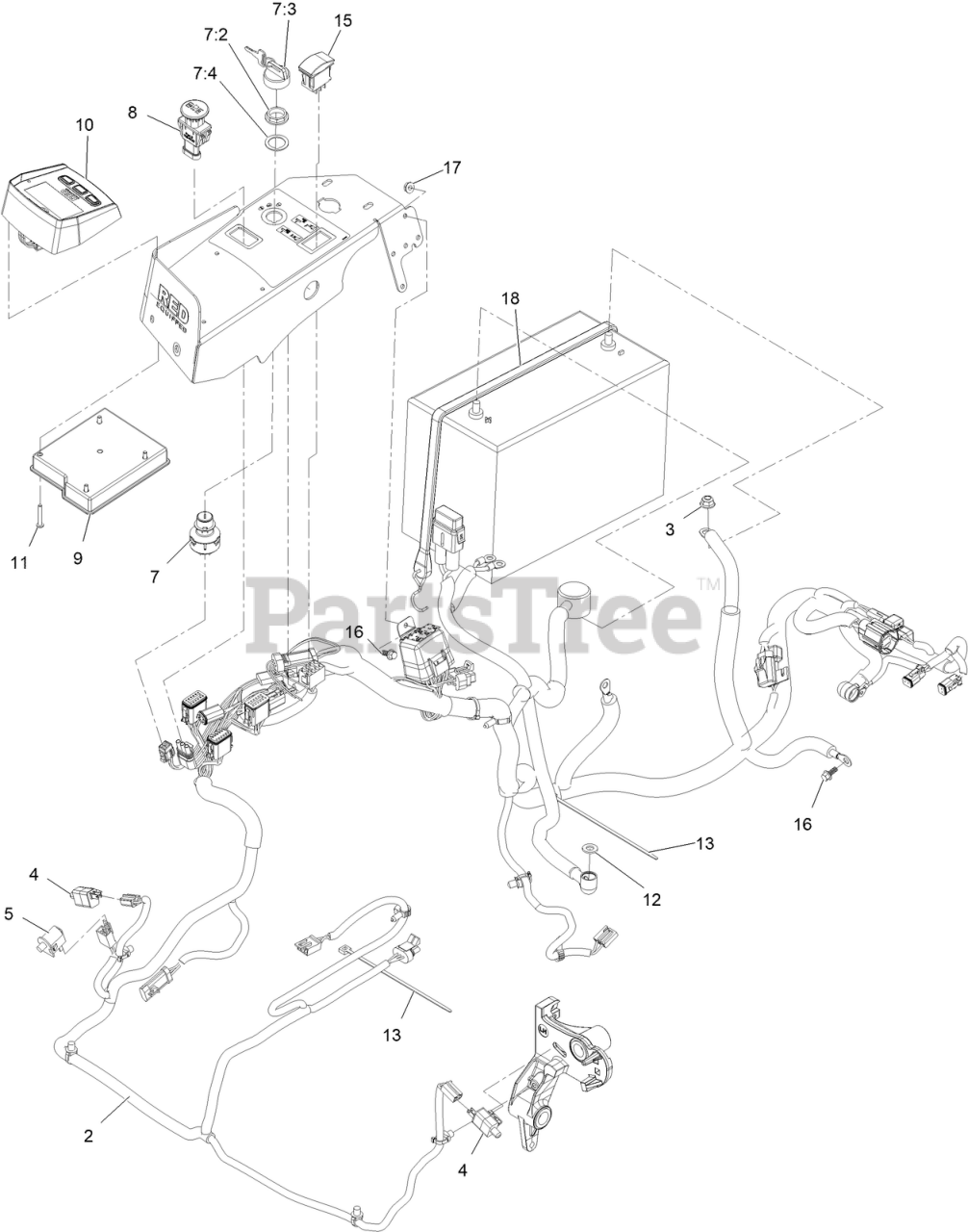

Electrical Assembly Parts Diagram

  • Title

2

Exmark 142-8168

Harness-Wire

$1286.99

$

Usually ships in 3-6 days

0

3

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 110-6765

SWITCH

$14.99

$

In Stock, Qty 20+

0

5

Exmark 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 20+

0

7

Exmark 126-6285

IGNITION SWITCH ASM

$59.99

$

In Stock, Qty 20+

0

7:2

Exmark 108-8660

NUT-MOUNTING

$38.99

$

Usually ships in 3-6 days

0

7:3

Exmark 106-5270

IGNITION KEY SET

$25.99

$

In Stock, only 2 left!

0

7:4

Exmark 108-8659

WASHER-BACKUP

$16.99

$

Usually ships in 3-6 days

0

8

Exmark 126-6187

SWITCH-PTO, SEALED

$59.99

$

In Stock, Qty 5

0

9

Exmark 135-3427

Module-Mcu

$422.99

$

Usually ships in 3-6 days

0

10

Exmark 126-4232

MODULE, LDU

$512.99

$

Usually ships in 3-6 days

0

11

Exmark 126-5092

SCREW-PPH

$3.99

$

Usually ships in 3-6 days

0

12

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

15

Exmark 100-1535

SWITCH

$99.99

$

In Stock, only 4 left!

0

16

Exmark 99-6810

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

17

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

18

Exmark 135-4440

STRAP

$26.99

$

Usually ships in 3-6 days

0
