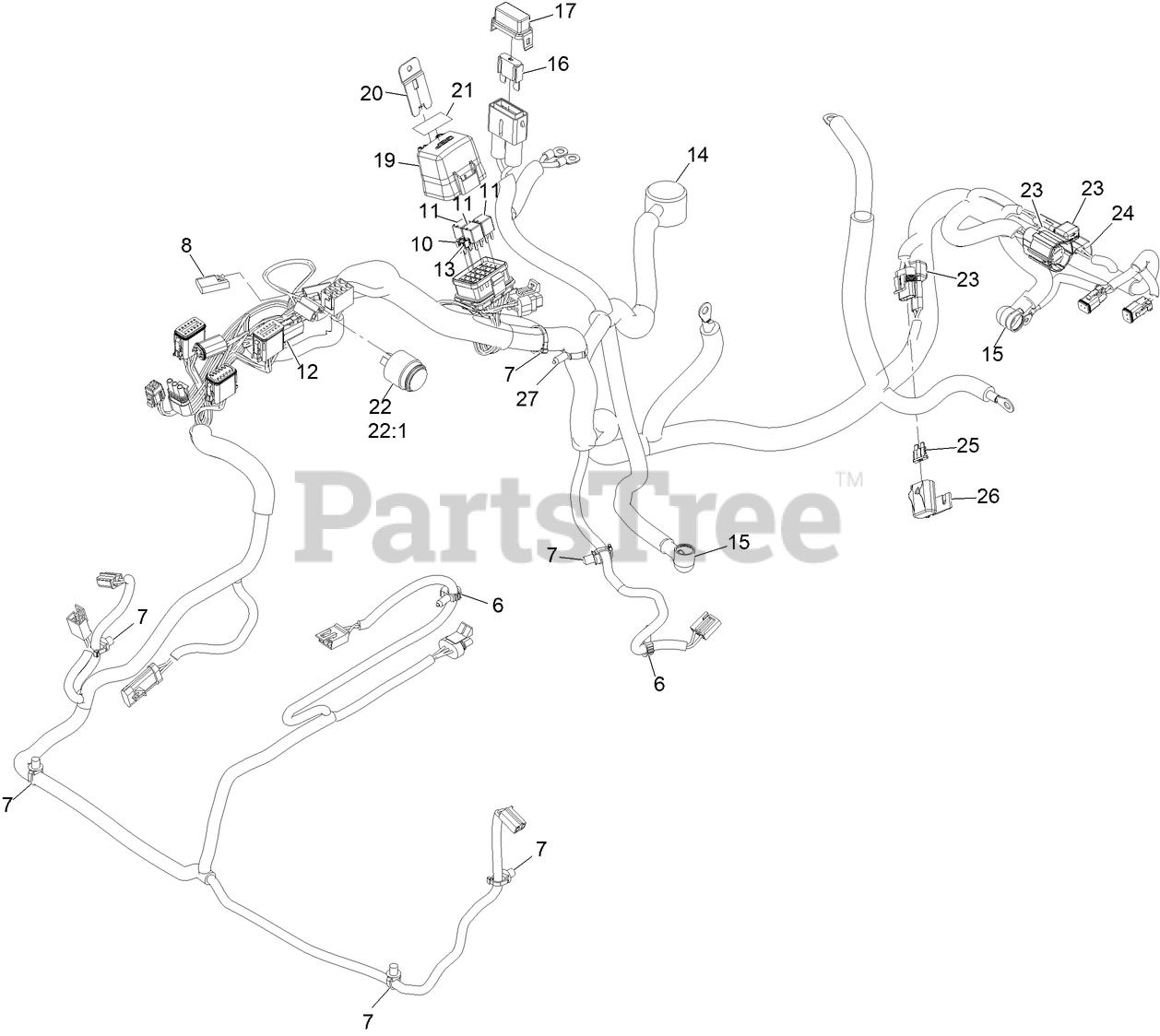

LZX980EKC96RW0 - Exmark 96" Lazer Z X-Series Zero-Turn Mower, Kohler (SN: 417930746 & Above) (Rev A) (2025) Electrical Harness Parts Diagram

96" Lazer Z X-Series Zero-Turn Mower, Kohler

Electrical Harness Parts Diagram

  • Title

6

Exmark 32180-037

CLIP-HARNESS

$1.99

$

In Stock, Qty 6

0

7

Exmark 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 5

0

8

Exmark 32180-197

Cap-Plug

$18.99

$

In Stock, only 1 left!

0

10

Exmark 121-8868

FUSE-MINI BLADE, 20 AMP

$6.49

$

Usually ships in 3-6 days

0

11

Exmark 126-3991

RELAY-MICRO

$43.99

$

In Stock, Qty 12

0

12

Exmark 32180-156

CAP-PLUG, 6 WAY

$11.99

$

Usually ships in 3-6 days

0

13

Exmark 121-8867

FUSE-MINI BLADE, 15 AMP

$1.49

$

Usually ships in 3-6 days

0

14

Exmark 109-2407

INSULATOR-BATTERY

$5.99

$

In Stock, only 2 left!

0

15

Exmark 1-543393

INSULATOR-SOLENOID

$5.99

$

In Stock, only 1 left!

0

16

Exmark 94-8002

FUSE-BLADE, 50 AMP

$28.99

$

Usually ships in 3-6 days

0

17

Exmark 32181-014

Cover-Fuse Holder, Maxi

$27.99

$

In Stock, only 2 left!

0

19

Exmark 32181-013

Cover-Fuseblock, 24F, Gep

$28.99

$

Usually ships in 0 days

0

20

Exmark 32180-177

CLIP-MOUNTING

$5.49

$

In Stock, only 1 left!

0

21

Exmark 135-7226

Decal-Fuse

$

$

Currently unavailable

22

Exmark 80-9330

Audio Alarm ASM

$156.99

$

Usually ships in 3-6 days

0

22:1

Exmark 104-5107

Nut-Plastic, Knurled

$6.49

$

Usually ships in 3-6 days

0

23

Exmark 100-4918

DIODE

$23.99

$

In Stock, Qty 11

0

24

Exmark 135-1366

Resistor - 30K Ohms 5% Overmolded

$9.99

$

Usually ships in 3-6 days

0

25

Exmark 99-6124

Fuse-40 Amp

$5.49

$

In Stock, Qty 12

0

26

Exmark 32180-019

Cover-Fuse, Single

$4.99

$

Usually ships in 3-6 days

0

27

Exmark 32180-067

Clip-Harness,Tubing (16MM)

$

$

Currently unavailable
