LZX980EKC96RW0 - Exmark 96" Lazer Z X-Series Zero-Turn Mower, Kohler (SN: 417930746 & Above) (Rev A) (2025) Main Frame Assembly Parts Diagram

96" Lazer Z X-Series Zero-Turn Mower, Kohler

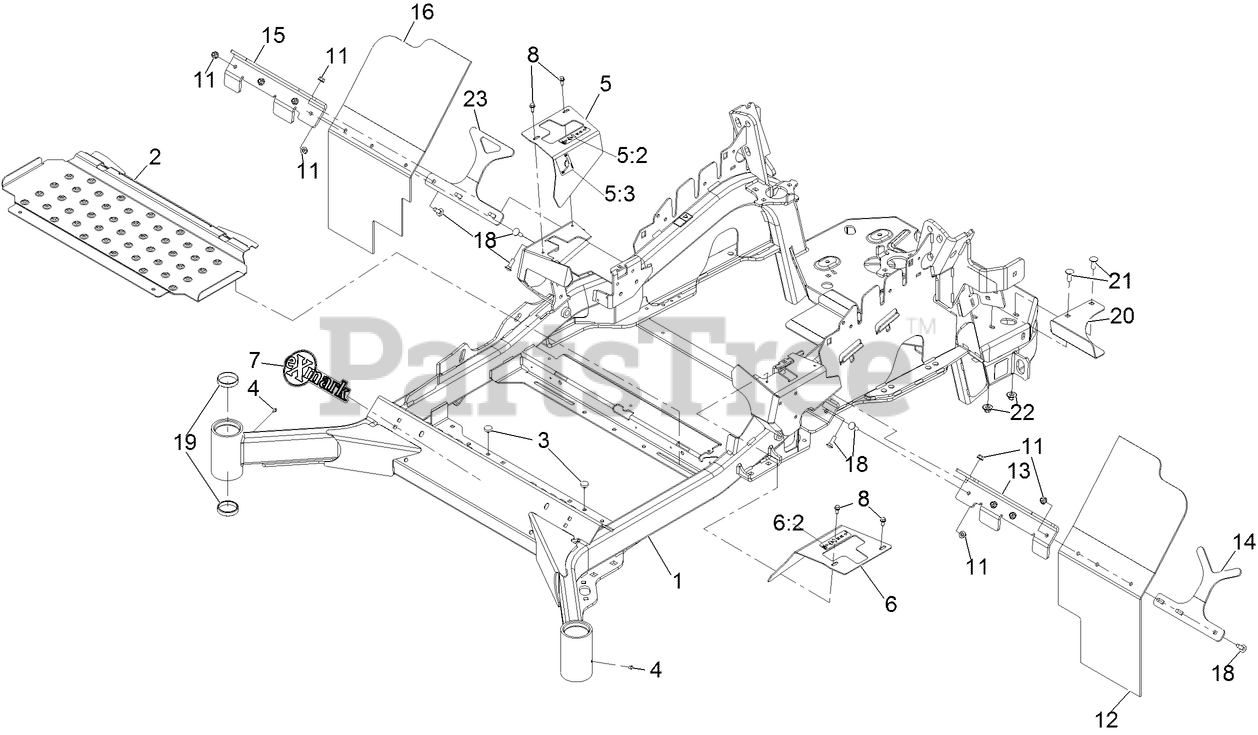

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 142-2671

Mainframe ASM

$3750.99

$

Usually ships in 3-6 days

0

2

Exmark 142-2872-01

FLOOR PAN

$323.99

$

Usually ships in 3-6 days

0

3

Exmark 1-513658

BUMPER

$6.99

$

In Stock, Qty 9

0

4

Exmark 1-811010

PLUG

$5.99

$

In Stock, Qty 10

0

5

Exmark 116-5899

RH MOTION CONTROL COVER ASM

$53.99

$

In Stock, only 2 left!

0

5:2

Exmark 99-8936

DECAL-CONTROL, MOTION

$23.99

$

In Stock, only 1 left!

0

5:3

Exmark 116-5988

DECAL-PARK BRAKE, CE

$15.99

$

Usually ships in 3-6 days

0

6

Exmark 116-0580

LH MOTION CONTROL COVER ASM

$30.99

$

Usually ships in 3-6 days

0

6:2

Exmark 99-8936

DECAL-CONTROL, MOTION

$23.99

$

In Stock, only 1 left!

0

7

Exmark 135-2274

DECAL-EXMARK

$27.99

$

In Stock, only 2 left!

0

8

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 10

0

11

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 7

0

12

Exmark 135-4947

Mud Flap

$47.99

$

Usually ships in 3-6 days

0

13

Exmark 135-4950-03

Bracket-Mud Flap, LH

$43.99

$

Usually ships in 3-6 days

0

14

Exmark 135-4952-03

Support-Mud Flap, Rear

$27.99

$

Usually ships in 3-6 days

0

15

Exmark 135-4955-03

Bracket-Mud Flap, RH

$43.99

$

Usually ships in 3-6 days

0

16

Exmark 135-4957

Mud Flap

$47.99

$

Usually ships in 3-6 days

0

18

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, only 1 left!

0

19

Exmark 1-543508

CUP-BEARING

$8.49

$

In Stock, Qty 20+

0

20

Exmark 142-2927-01

SHIELD-HEAT

$21.99

$

Usually ships in 3-6 days

0

21

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

22

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

23

Exmark 142-3344-03

SUPPORT-MUD FLAP RH

$28.99

$

Usually ships in 3-6 days

0
