LZX980EKC96RW0 - Exmark 96" Lazer Z X-Series Zero-Turn Mower, Kohler (SN: 417930746 & Above) (Rev A) (2025) Power Unit Assembly Parts Diagram

96" Lazer Z X-Series Zero-Turn Mower, Kohler

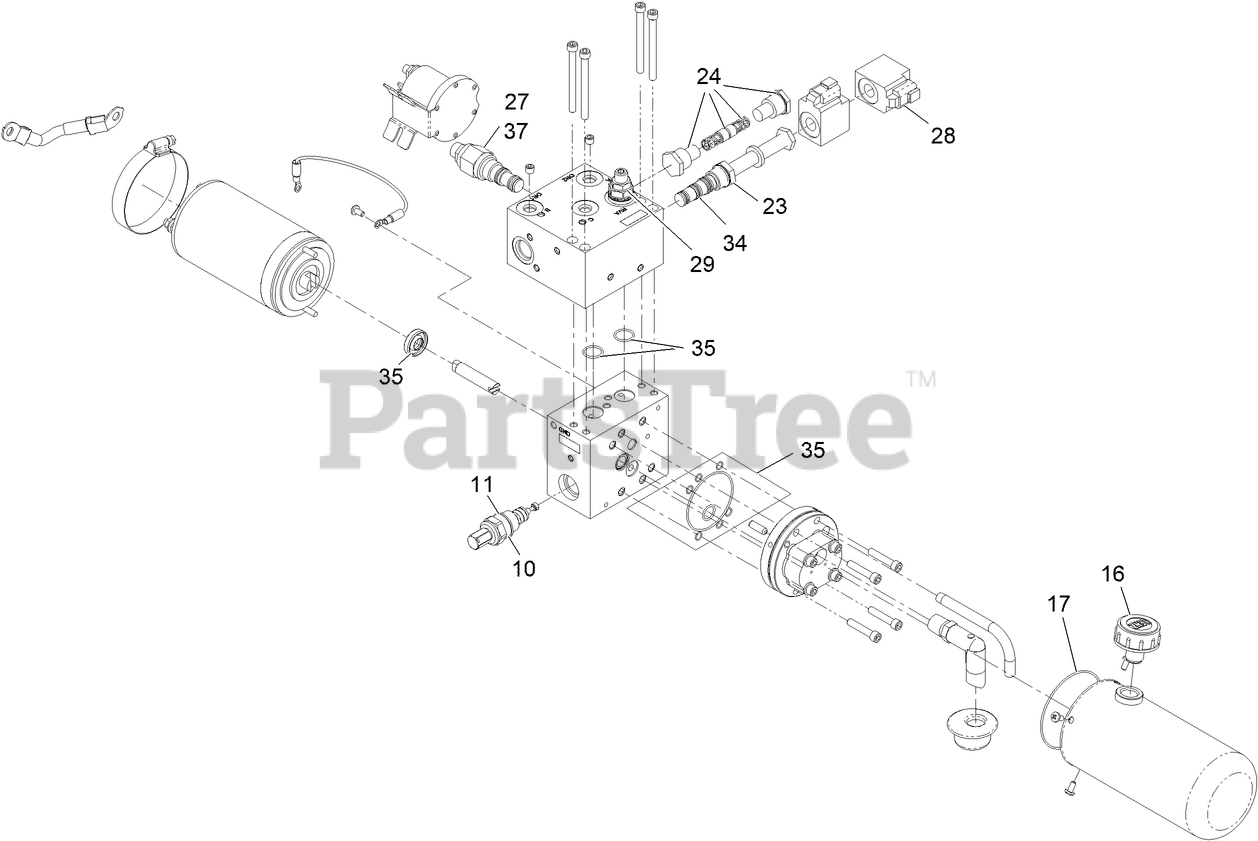

Power Unit Assembly Parts Diagram

  • Title

10

Exmark 135-7606

Valve,Relief,Vm01,210-320 Bar

$109.99

$

Usually ships in 3-6 days

0

11

Exmark 146-6722

Seal Kit

$

$

Currently unavailable

16

Exmark 142-4398

CAP-POWERUNIT

$76.99

$

Usually ships in 3-6 days

0

17

Exmark 146-6644

O-Ring

$5.49

$

Usually ships in 3-6 days

0

23

Exmark 135-7613

Cartridge, 4W/3P, 3000PSI, Mc, #8

$451.99

$

Usually ships in 3-6 days

0

24

Exmark 135-7614

PARTS KIT,DBL PO CK VLV,4INMAN

$453.99

$

Usually ships in 3-6 days

0

27

Exmark 135-7615

COUNTERBALANCE, 08, 5000-PSI

$258.99

$

Usually ships in 3-6 days

0

28

Exmark 135-7616

Coil, 12Vdc, 16W, Rect, Deutsch

$161.99

$

Usually ships in 3-6 days

0

29

Exmark 146-5725

Valve-Relief [1500 Psi]

$

$

Currently unavailable

34

Exmark 135-7880

Parts Kit, Seal, 4W/3P Valve

$79.99

$

Usually ships in 3-6 days

0

35

Exmark 146-6714

Seal Kit

$25.99

$

Usually ships in 3-6 days

0

37

Exmark 146-6721

Seal Kit

$

$

Currently unavailable

99

Exmark 146-5944

RUBY TRAN-1 GAL

Note: Not illustrated

$64.99

$

Usually ships in 3-6 days

0
