LZX980KC726 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kohler CV980 (SN: 312000000 - 312999999) (2012) Engine Assembly Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, Kohler CV980

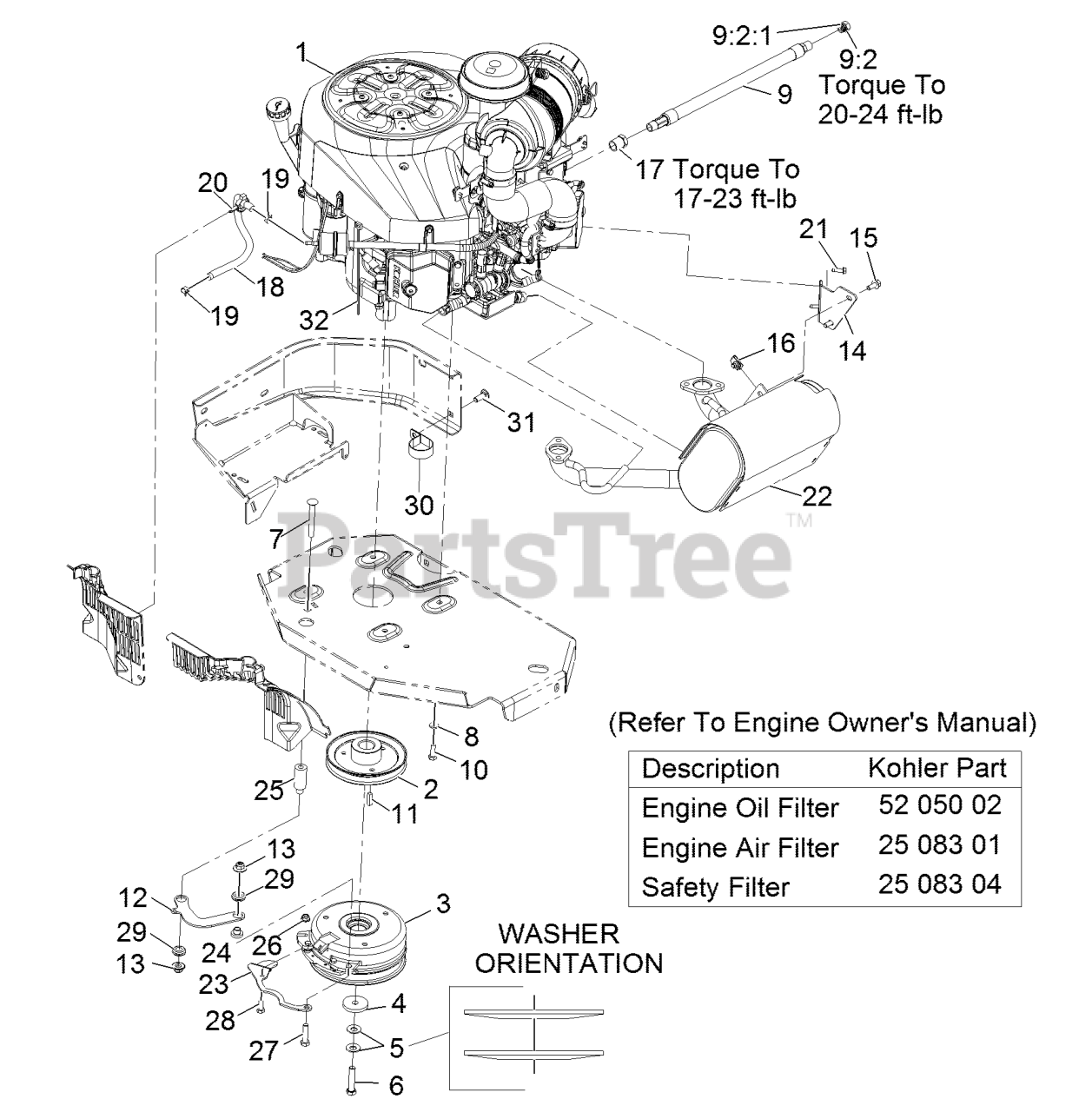

Engine Assembly Parts Diagram

  • Title

1

Engine-Kohler, Ph-660132

Note: Not serviced separately, Obtain parts from www.kohlerplus.com

$

$

Not available

2

Exmark 109-9905

SHEAVE
(Superseded to 142-9445)

$53.99

$

In Stock, only 1 left!

0

3

Exmark 116-1621

126-4185
(Superseded to 126-4185)

$771.99

$

Usually ships in 3-6 days

0

4

Exmark 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 15

0

5

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

6

Exmark 109-9762

SCREW-HH W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

In Stock, Qty 10

0

7

Exmark 3231-42

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

8

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

9

Exmark 116-5316

OIL DRAIN HOSE ASM

$53.99

$

In Stock, Qty 17

0

9:2

Exmark 353-508

PLUG-HH

$8.49

$

In Stock, only 1 left!

0

9:2:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

10

Exmark 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

11

Exmark 1-807259

KEY

$2.99

$

In Stock, Qty 13

0

12

Exmark 116-3317-01

LINK-ANCHOR, CLUTCH

$15.99

$

In Stock, only 1 left!

0

13

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

14

Exmark 109-9218

116-9048
(Superseded to 116-9048)

$22.99

$

Usually ships in 3-6 days

0

15

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, only 3 left!

0

16

Exmark 94-2413

NUT-U

$2.99

$

In Stock, only 2 left!

0

17

Exmark 103-1390

BUSHING

$6.49

$

Usually ships in 3-6 days

0

18

Exmark 109-0305

1-603954
(Superseded to 1-603954)

$8.99

$

In Stock, only 1 left!

0

19

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

20

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

21

Exmark 110-3986

SCREW

$1.49

$

Usually ships in 3-6 days

0

22

Exmark 116-6137

MUFFLER, KC BIG BLOCK AIS
(Superseded to 109-9880)

$532.99

$

Usually ships in 3-6 days

0

23

Exmark 116-3331-01

BELT-GUIDE

$26.99

$

In Stock, only 1 left!

0

24

Exmark 116-3318

SPACER

$19.99

$

In Stock, only 2 left!

0

25

Exmark 116-3319

SPACER

$25.99

$

In Stock, only 1 left!

0

26

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

27

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Exmark 93-5108

GROMMET-RUBBER

$15.99

$

In Stock, only 1 left!

0

30

Exmark 2412-147

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

31

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, only 2 left!

0

32

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 12

0
