LZZ34KA726 - Exmark 72" Lazer Z Z-Series Zero-Turn Mower, 34hp Kawasaki (SN: 790000 - 849999) (2009) Engine Group - 23-27HP Kohler Parts Diagram

72" Lazer Z Z-Series Zero-Turn Mower, 34hp Kawasaki

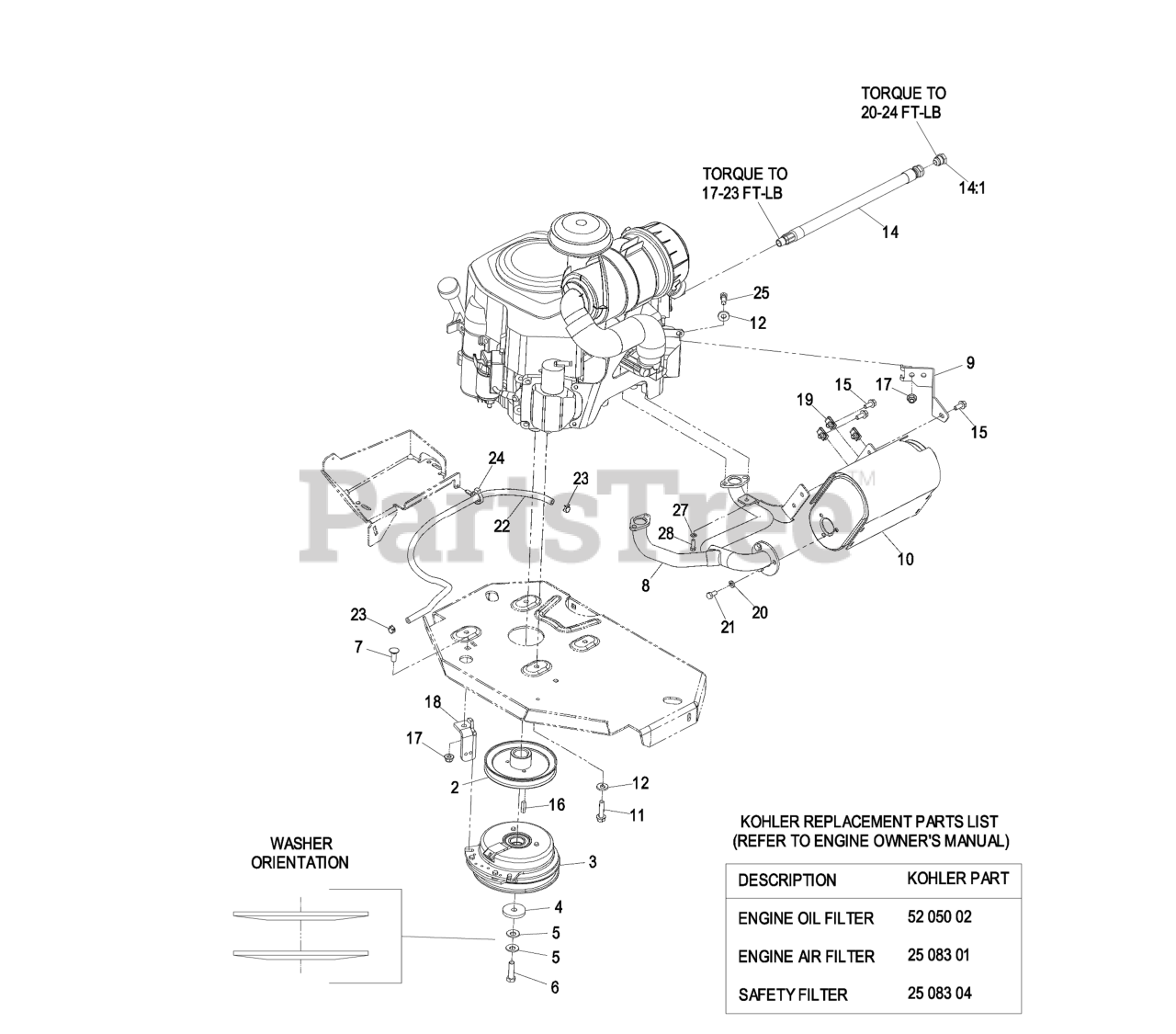

Engine Group - 23-27HP Kohler Parts Diagram

  • Title

2

Exmark 109-9905

SHEAVE
(Superseded to 142-9445)

$54.99

$

In Stock, Qty 12

0

3

Exmark 109-9282

116-1620
(Superseded to 116-1620)

$380.99

$

In Stock, Qty 20+

0

4

Exmark 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 20+

0

5

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

6

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt.

$5.49

$

In Stock, Qty 13

0

7

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

8

Exmark 116-0807

126-8798
(Superseded to 126-8798)

$416.99

$

In Stock, only 1 left!

0

9

Exmark 109-9230

116-1586
(Superseded to 116-1586)

$35.99

$

Usually ships in 3-6 days

0

10

Exmark 109-9280

MUFFLER-ENGINE

$298.99

$

In Stock, only 1 left!

0

11

Exmark 32144-102

SCREW-HWH

$3.99

$

In Stock, Qty 5

0

12

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

14

Exmark 116-0013

116-5316
(Superseded to 116-5316)

Note: Use Teflon Pipe Sealant or equivalent on threads.

$58.99

$

In Stock, Qty 15

0

14:1

Exmark 109-1012

PLUG

$8.99

$

Usually ships in 3-6 days

0

15

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

16

Exmark 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

17

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Exmark 109-8138-01

ANCHOR-CLUTCH

$55.99

$

Usually ships in 3-6 days

0

19

Exmark 94-2413

NUT-U

$2.99

$

In Stock, Qty 19

0

20

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

21

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

22

Exmark 109-0286

HOSE-FUEL

$22.99

$

Usually ships in 3-6 days

0

23

Exmark 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

24

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 2 left!

0

25

Exmark 323-5

SCREW-HH

$1.49

$

In Stock, Qty 10

0

27

Exmark 1-303435

WASHER-SPRING

$1.99

$

In Stock, Qty 20+

0

28

Exmark 33113-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0
