LZZ34KA726 - Exmark 72" Lazer Z Z-Series Zero-Turn Mower, 34hp Kawasaki (SN: 790000 - 849999) (2009) Hydraulic Group Parts Diagram

72" Lazer Z Z-Series Zero-Turn Mower, 34hp Kawasaki

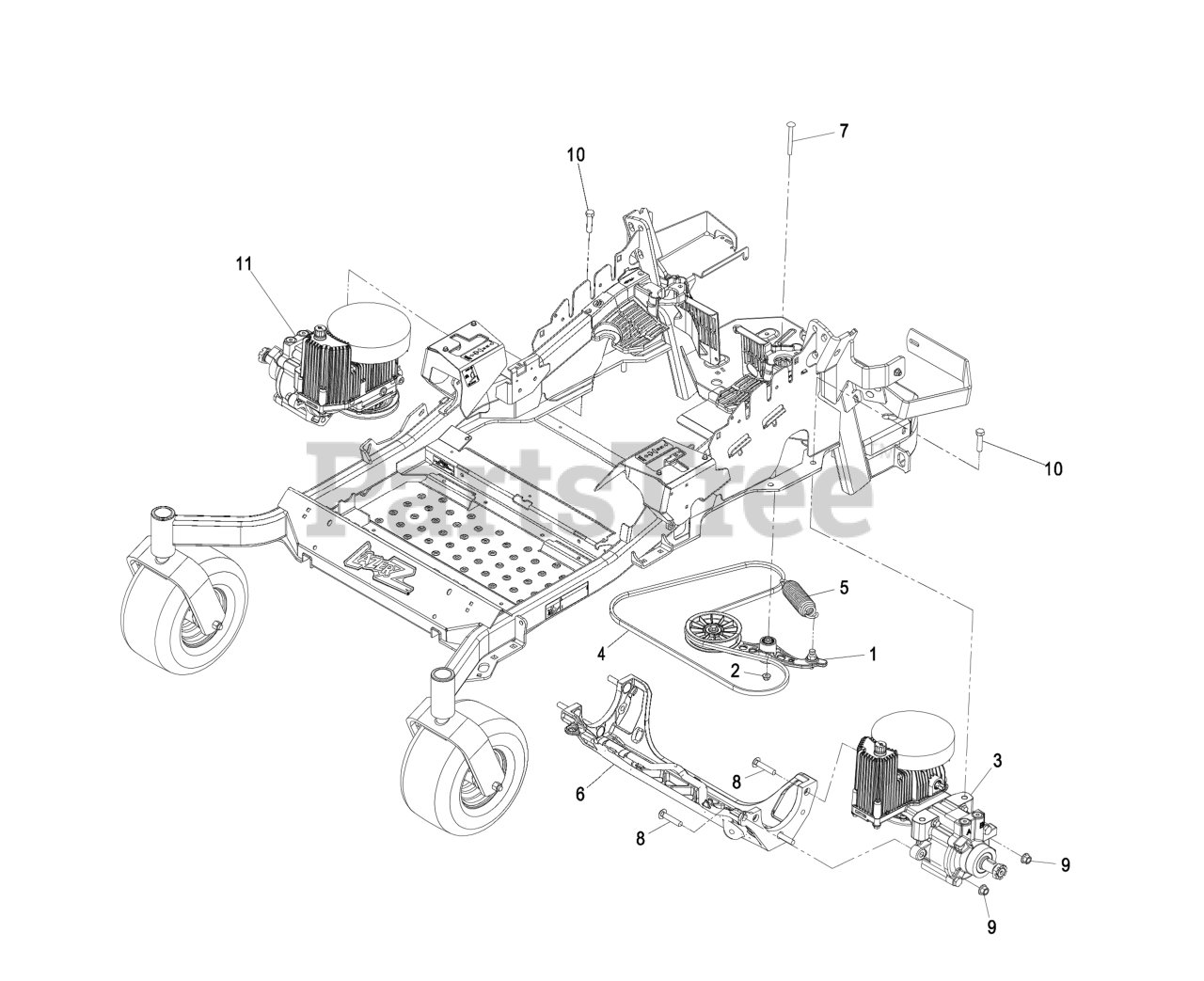

Hydraulic Group Parts Diagram

  • Title

1

Exmark 109-2182

116-1255
(Superseded to 116-1255)

$230.99

$

In Stock, only 2 left!

0

2

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

3

Exmark 116-1322

126-1321
(Superseded to 135-7899)

$3482.99

$

Usually ships in 3-6 days

0

Exmark 116-1326

126-1325
(Superseded to 135-7905)

$3434.99

$

Usually ships in 3-6 days

0

4

Exmark 109-3388

BELT
(Superseded to 109-3388-SL)

$47.99

$

In Stock, Qty 20+

0

5

Exmark 116-0133

116-6317
(Superseded to 116-6317)

$30.99

$

In Stock, Qty 20+

0

6

Exmark 109-9375

116-7558
(Superseded to 116-7558)

$249.99

$

Usually ships in 3-6 days

0

7

Exmark 3231-41

BOLT-CARRIAGE

$5.49

$

Usually ships in 3-6 days

0

8

Exmark 3233-34

SCREW-CARR

$10.99

$

In Stock, Qty 8

0

9

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 20+

0

10

Exmark 325-8

SCREW-HH

$5.99

$

In Stock, only 1 left!

0

11

Exmark 116-1323

126-1322
(Superseded to 135-7900)

$3482.99

$

Usually ships in 3-6 days

0

Exmark 116-1327

126-1326
(Superseded to 135-7906)

$3434.99

$

Usually ships in 3-6 days

0

12

Exmark 117-0377

116-1758
(Superseded to 116-1758)

Note: Not shown

$15.99

$

Usually ships in 3-6 days

0

13

Exmark 116-0164

FILTER-HYDRO

Note: Not shown

$76.99

$

In Stock, Qty 20+

0

14

Exmark 116-0233

FAN KIT
(Superseded to 142-3603)

Note: Not shown

$128.99

$

In Stock, Qty 5

0

15

Exmark 116-0234

PULLEY KIT

Note: Not shown

$182.99

$

In Stock, only 3 left!

0

16

Exmark 116-0235

HANDLE-BYPASS VALVE, HYDRO

Note: Not shown

$17.99

$

Usually ships in 3-6 days

0

17

Exmark 116-0236

DIPSTICK-HYDRO W/GASKET

Note: Not shown

$55.99

$

In Stock, Qty 16

0

18

Exmark 116-0237

GASKET-DIPSTICK, HYDRO

Note: Not shown

$15.99

$

In Stock, only 2 left!

0

19

Exmark 109-9828

BOTTLE-OIL, 32OZ HYDRAULIC

Note: Not shown

$18.99

$

In Stock, Qty 20+

0
