M 1024E (1696617-04) - Snapper 24" Snow Thrower, 9.5hp (2019) Transaxle Drive Group Parts Diagram

24" Snow Thrower, 9.5hp

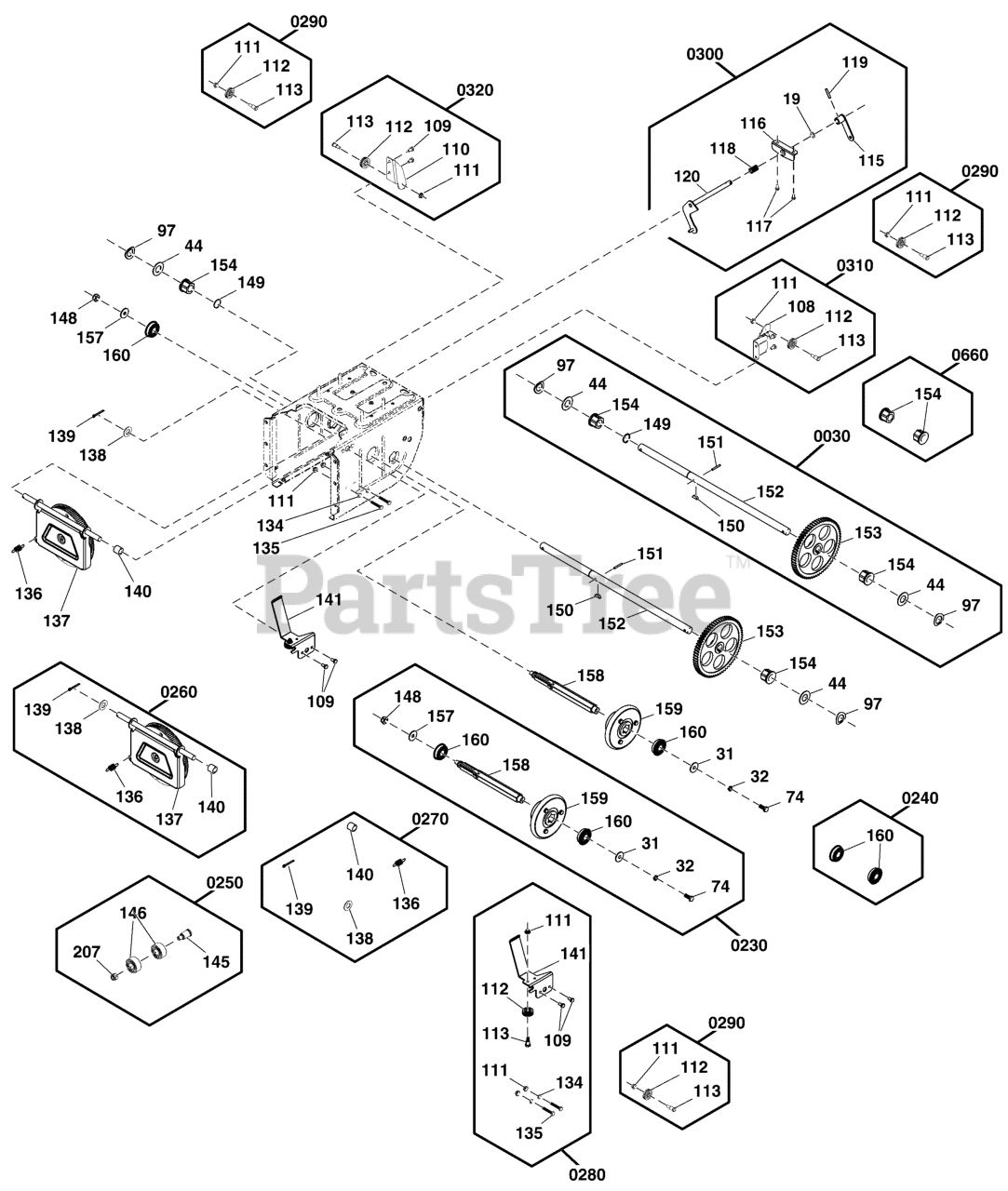

Transaxle Drive Group Parts Diagram

  • Title

0030

Snapper 770078

KIT, Axle & Sprocket

Note: (Incl. Ref. Nos. 44, 97, 149, 150, 151, 152, 153, 154)

$132.99

$

Usually ships in 2-12 days

0

44

WASHER, Flat

$

$

Not available

97

WASHER, Wave, 20

$

$

Not available

149

RING, External Retaining

$

$

Not available

150

KEY, WOODRUFF

$

$

Not available

151

PIN, Spring, 4 X 30

$

$

Not available

152

AXLE

$

$

Not available

153

GEAR, Drive

$

$

Not available

154

SLEEVE, Axle

$

$

Not available

0230

Snapper 707535

KIT, Friction Wheel & Shaft

Note: (Incl. Ref. Nos. 31, 32, 74, 148, 157, 158, 159, 160)

$132.99

$

Usually ships in 2-12 days

0

31

WASHER, Flat, 8 X 28 X 3

$

$

Not available

32

WASHER, Lock, M8

$

$

Not available

74

SCREW, Hex Head, M8X20

$

$

Not available

148

NUT, Lock, M10

$

$

Not available

157

WASHER, Flat, 8 X 28 X 2

$

$

Not available

158

SHAFT, Hex

$

$

Not available

159

FRICTION WHEEL ASSEMBLY

$

$

Not available

160

BEARING, Ball

$

$

Not available

0240

Snapper 707536

KIT, Bearing, Friction Wheel & Shaft

Note: (Incl. Ref. No. 160)

$24.99

$

Usually ships in 2-12 days

0

160

BEARING, Ball

$

$

Not available

0250

Snapper 707539

KIT, BEARING, SWING PLATE

Note: (Incl. Ref. Nos. 145, 146, 207)

$26.99

$

Usually ships in 2-12 days

0

145

SHAFT, Bearing Retainer, M10

$

$

Not available

146

BEARING, Ball

$

$

Not available

207

NUT, Lock, M10

$

$

Not available

0260

Snapper 707540

KIT, SWINGING PLATE

Note: (Incl. Ref. Nos. 136, 137, 138, 139, 140)

$80.99

$

In Stock, only 1 left!

0

136

SPRING, Extension

$

$

Not available

137

PULLEY, Friction

$

$

Not available

138

WASHER, Flat, 13 X 24 X 2

$

$

Not available

139

PIN, Cotter, 2.5 X 30

$

$

Not available

140

SLEEVE, Spacer

$

$

Not available

0270

Snapper 707538

KIT, SPRING, SWINGING PLATE

Note: (Incl. Ref. Nos. 136, 138, 139, 140)

$10.99

$

Usually ships in 2-12 days

0

136

SPRING, Extension

$

$

Not available

138

WASHER, Flat, 13 X 24 X 2

$

$

Not available

139

PIN, Cotter, 2.5 X 30

$

$

Not available

140

SLEEVE, Spacer

$

$

Not available

0280

Snapper 84003842

KIT, Belt Guide

Note: (Incl. Ref. Nos. 109, 111, 112, 113, 134, 135, 141)

$17.99

$

Usually ships in 2-12 days

0

109

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

111

NUT, HEX FLANGE HEAD, M6

$

$

Not available

112

PULLEY, Cable

$

$

Not available

113

SCREW, M6 X 12, Hex Head Shoulder

$

$

Not available

134

WASHER, 6x12x.7, Flat

$

$

Not available

135

SCREW, Hex Head, M6 X 35

$

$

Not available

141

GUIDE, Belt

$

$

Not available

0290

Snapper 707541

KIT, Pulley, Cable

Note: (Incl. Ref. Nos. 111, 112, 113)

$18.99

$

Usually ships in 2-12 days

0

111

NUT, HEX FLANGE HEAD, M6

$

$

Not available

112

PULLEY, Cable

$

$

Not available

113

SCREW, M6 X 12, Hex Head Shoulder

$

$

Not available

0300

Snapper 707527

KIT, Shift Rod

Note: (Incl. Ref. Nos. 19, 115, 116, 117, 118, 119, 120)

$28.99

$

Usually ships in 2-12 days

0

19

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

115

ARM, Speed Select

$

$

Not available

116

BRACKET, Speed Select

$

$

Not available

117

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

118

SPRING, Compression

$

$

Not available

120

ROD, Speed Select, Fork

$

$

Not available

0310

Snapper 707528

KIT, Cable Base, Auger Drive

Note: (Incl. Ref. Nos. 108, 109, 111, 112, 113)

$19.99

$

Usually ships in 2-12 days

0

108

BRACKET, Cable Guide, Auger Control

$

$

Not available

109

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

111

NUT, HEX FLANGE HEAD, M6

$

$

Not available

112

PULLEY, Cable

$

$

Not available

113

SCREW, M6 X 12, Hex Head Shoulder

$

$

Not available

0320

Snapper 707529

KIT, Cable Base, Traction Drive

Note: (Incl. Ref. Nos. 109, 110, 111, 112, 113)

$28.99

$

Usually ships in 2-12 days

0

109

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

110

BRACKET, Cable Guide, Traction Control

$

$

Not available

111

NUT, HEX FLANGE HEAD, M6

$

$

Not available

112

PULLEY, Cable

$

$

Not available

113

SCREW, M6 X 12, Hex Head Shoulder

$

$

Not available

0660

Snapper 707532

KIT, AXLE SLEEVE

Note: (Incl. Ref. Nos. 154)

$16.99

$

Usually ships in 2-12 days

0

154

SLEEVE, Axle

$

$

Not available
