M 1227 E (1696235-01) - Simplicity 27" Snow Thrower, 11.5hp Auger Drive Group Parts Diagram

27" Snow Thrower, 11.5hp

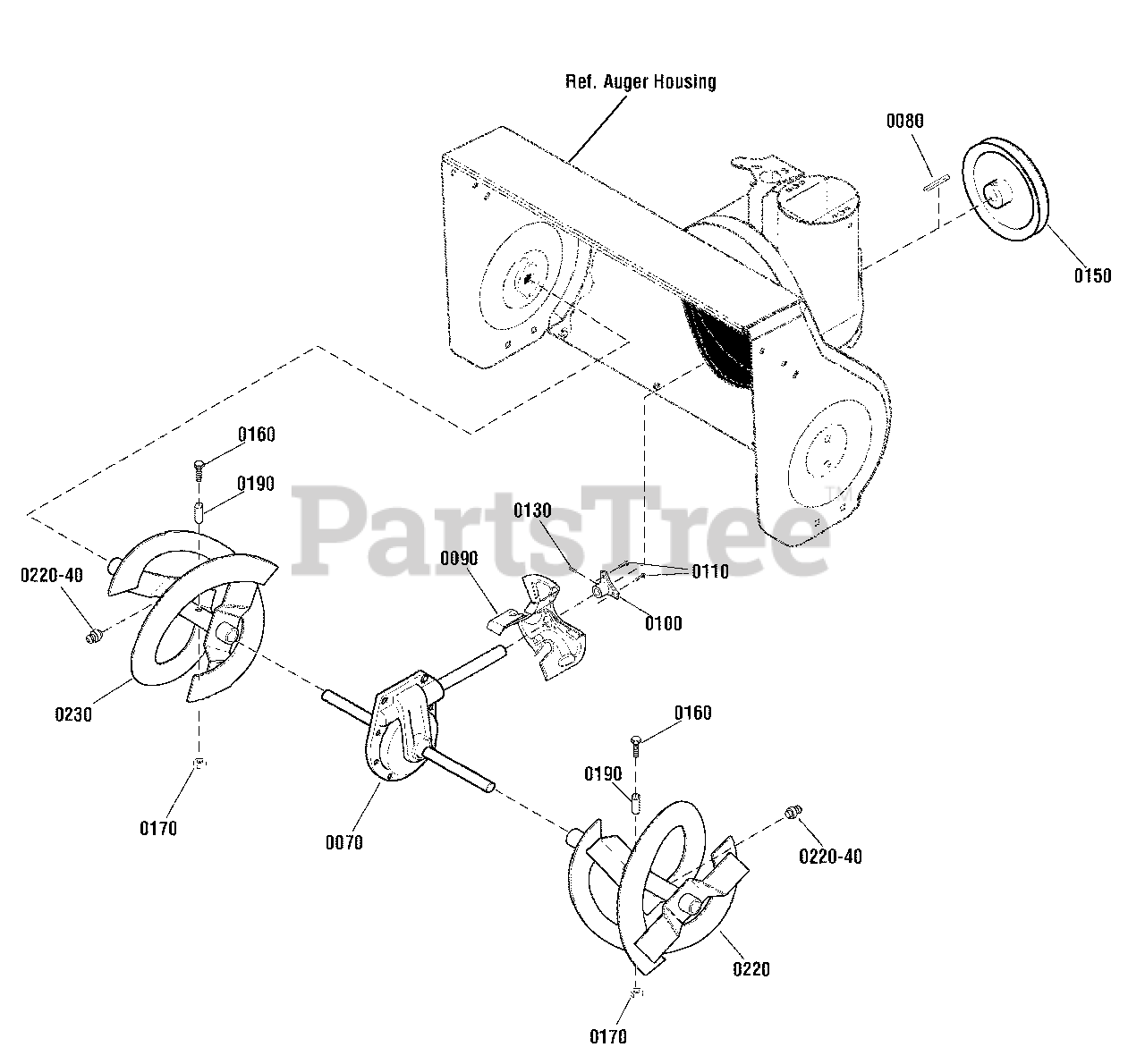

Auger Drive Group Parts Diagram

  • Title

0070

Simplicity 1753384YP

GEAR CASE ASSEMBLY
(Superseded to 704363)

Note: (Use on 24" Models)

$484.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1752897YP

GEAR CASE ASSEMBLY

Note: (Use on 27" Models)

$725.99

$

Usually ships in 2-12 days

0

0080

Simplicity 056534MA

KEY, Square

Note: (Use on 27" Models)

$5.49

$

In Stock, Qty 11

0

0080

Simplicity 2001022MA

KEY, Square

Note: (Use on 24" Models)

$4.99

$

In Stock, Qty 11

0

0090

Simplicity 1739094A

IMPELLER
(Superseded to 1687600YP)

$91.99

$

In Stock, Qty 15

0

0100

Simplicity 1739073

HUB, Impeller
(Superseded to 1739073YP)

$24.99

$

In Stock, only 1 left!

0

0110

Simplicity 1930601SM

SCREW, Hex Washer Head, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 1 left!

0

0130

Simplicity 1930540SM

SET SCREW, Socket Head, 5/16-18 x 5/8

$4.99

$

In Stock, Qty 5

0

0150

Simplicity 722128

PULLEY
(Superseded to 1501211MA)

$76.99

$

In Stock, Qty 5

0

0160

Simplicity 726061

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G2
(Superseded to 703057)

$6.49

$

In Stock, Qty 20+

0

0170

Simplicity 725429

NUT, Hex Centerlock, 1/4-20
(Superseded to 1501216MA)

$5.49

$

In Stock, Qty 17

0

0190

Simplicity 723913

SPACER, Sleeve, 1/4 x 1/2
(Superseded to 703058)

$7.49

$

In Stock, Qty 20+

0

0220

Simplicity 1738299AYP

AUGER, LH, 24"

Note: (Includes Ref. No. 0220-40)

$168.99

$

In Stock, only 2 left!

0

0220

Simplicity 1740736AYP

AUGER, LH, 27"

Note: (Includes Ref. No. 0220-40)

$153.99

$

Usually ships in 2-12 days

0

0230

Simplicity 1738300AYP

AUGER, RH, 24"
(Superseded to 1738300BMYP)

Note: (Includes Ref. No. 0220-40)

$

$

Not available

0230

Simplicity 1740737AYP

AUGER, RH, 27"

Note: (Includes Ref. No. 0220-40)

$187.99

$

Usually ships in 2-12 days

0

0220-40

Simplicity 721620

FITTING, Grease
(Superseded to 703907)

$5.49

$

In Stock, Qty 20+

0

--

Simplicity C950527610MA

KIT, Shear Bolt
(Superseded to 1501216MA)

$5.49

$

In Stock, Qty 17

0
