M 1227E (1695908) - Snapper 27" Snow Thrower, 11.5hp Discharge Chute Group Parts Diagram

27" Snow Thrower, 11.5hp

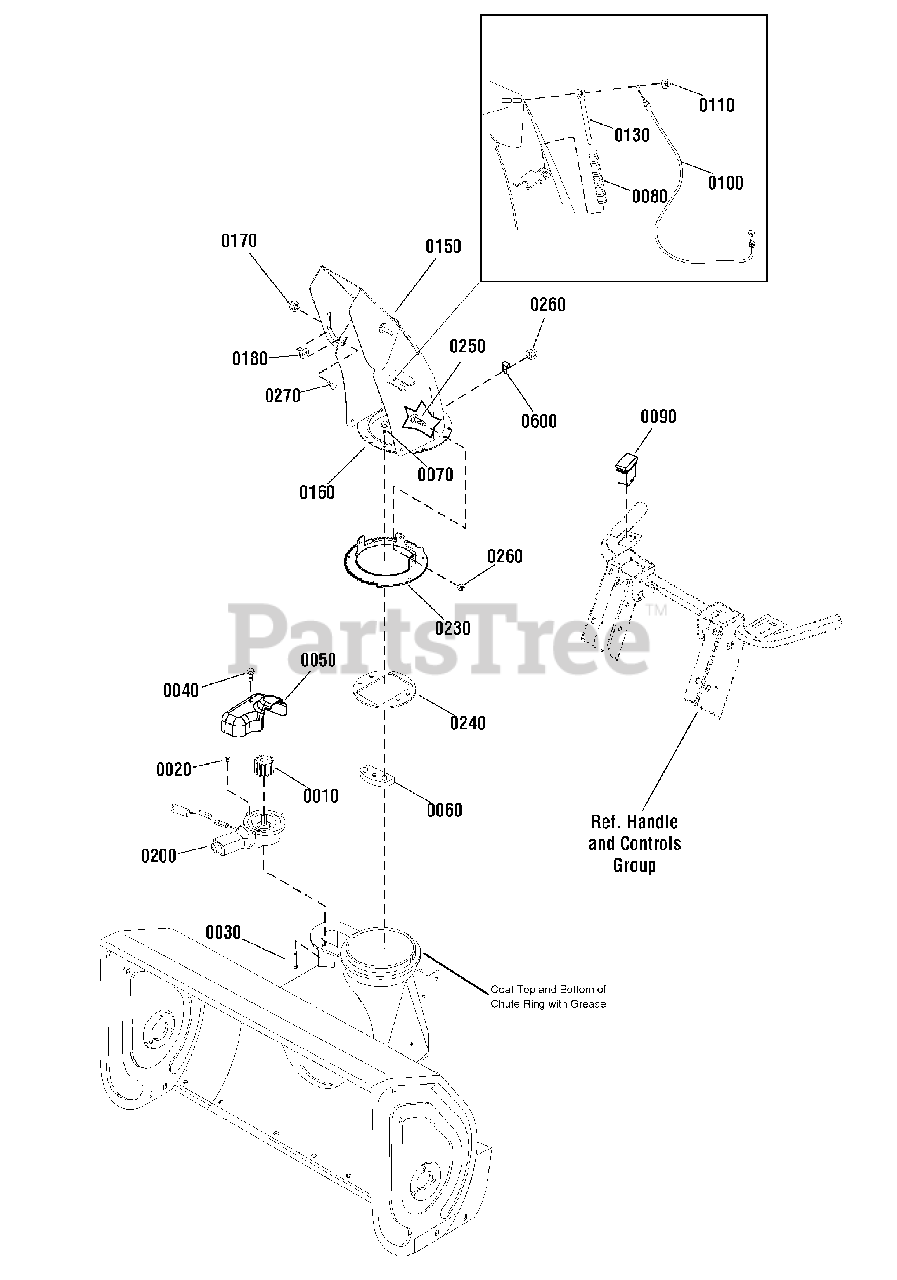

Discharge Chute Group Parts Diagram

  • Title

0010

Snapper 1728967

PINION
(Superseded to 1728967SM)

$17.99

$

In Stock, Qty 11

0

0020

Snapper 1960745

NUT, Hex Flange, Whiz Lock, #10-24
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

0030

Snapper 2860604

CAPSCREW, Hex Washer, #10 x 1-1/4
(Superseded to 2860604SM)

$4.49

$

In Stock, Qty 5

0

0040

Snapper 1925592

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, only 2 left!

0

0050

Snapper 1737455

COVER, Electric Chute Rotation
(Superseded to 1752877YP)

$16.99

$

In Stock, only 4 left!

0

0060

Snapper 7011938

RETAINER, Spout
(Superseded to 7011938SM)

$

$

Not available

0070

Snapper 1960001

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, Qty 20+

0

0080

Snapper 1734647

SPRING, Compression, 6 Inch
(Superseded to 1734647SM)

$3.99

$

Usually ships in 2-12 days

0

0090

Snapper 1738243

SWITCH, Chute Rotation
(Superseded to 1738243YP)

$54.99

$

In Stock, only 2 left!

0

0100

Snapper 1750623

CABLE, Delfector Control
(Superseded to 1750623YP)

$49.99

$

In Stock, Qty 5

0

0110

Snapper 1932718

NUT, Push, 5/16
(Superseded to 704028)

$5.49

$

In Stock, Qty 9

0

0130

Snapper 1734708A

ROD, Spring Guide, 5-7/8
(Superseded to 1734708ASM)

$13.99

$

Usually ships in 2-12 days

0

0150

Snapper 1738340

DECAL, Chute Hinge
(Superseded to 1738340YP)

$11.99

$

Usually ships in 2-12 days

0

0160

Snapper 1737443D

CHUTE
(Superseded to 1737443DYP)

$173.99

$

In Stock, only 1 left!

0

0170

Snapper 1960686

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 13

0

0190

Snapper 1931333

BOLT, Carriage, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0200

Snapper 1728965

MOTOR, Spout Rotator
(Superseded to 1728965SM)

$176.99

$

In Stock, Qty 6

0

0230

Snapper 1737465A

GEAR, Short, Steel Chute
(Superseded to 1737465AYP)

$39.99

$

Usually ships in 2-12 days

0

0240

Snapper 1737411

ADAPTER, Chute Ring
(Superseded to 1737411YP)

$19.99

$

Usually ships in 2-12 days

0

0250

Snapper 1931317

BOLT, Carriage, 1/4-20 x 3/4 G5

$3.99

$

In Stock, Qty 5

0

0260

Snapper 2860694

NUT, Hex Flange, Esna, 1/4-20
(Superseded to 703463)

$4.49

$

In Stock, Qty 5

0

0270

Snapper 2860210

WASHER, Nylon, 3/8
(Superseded to 2860210SM)

$4.49

$

In Stock, Qty 5

0

0600

Snapper 1739331

CLIP, Cable
(Superseded to 703174)

$4.49

$

Usually ships in 2-12 days

0
