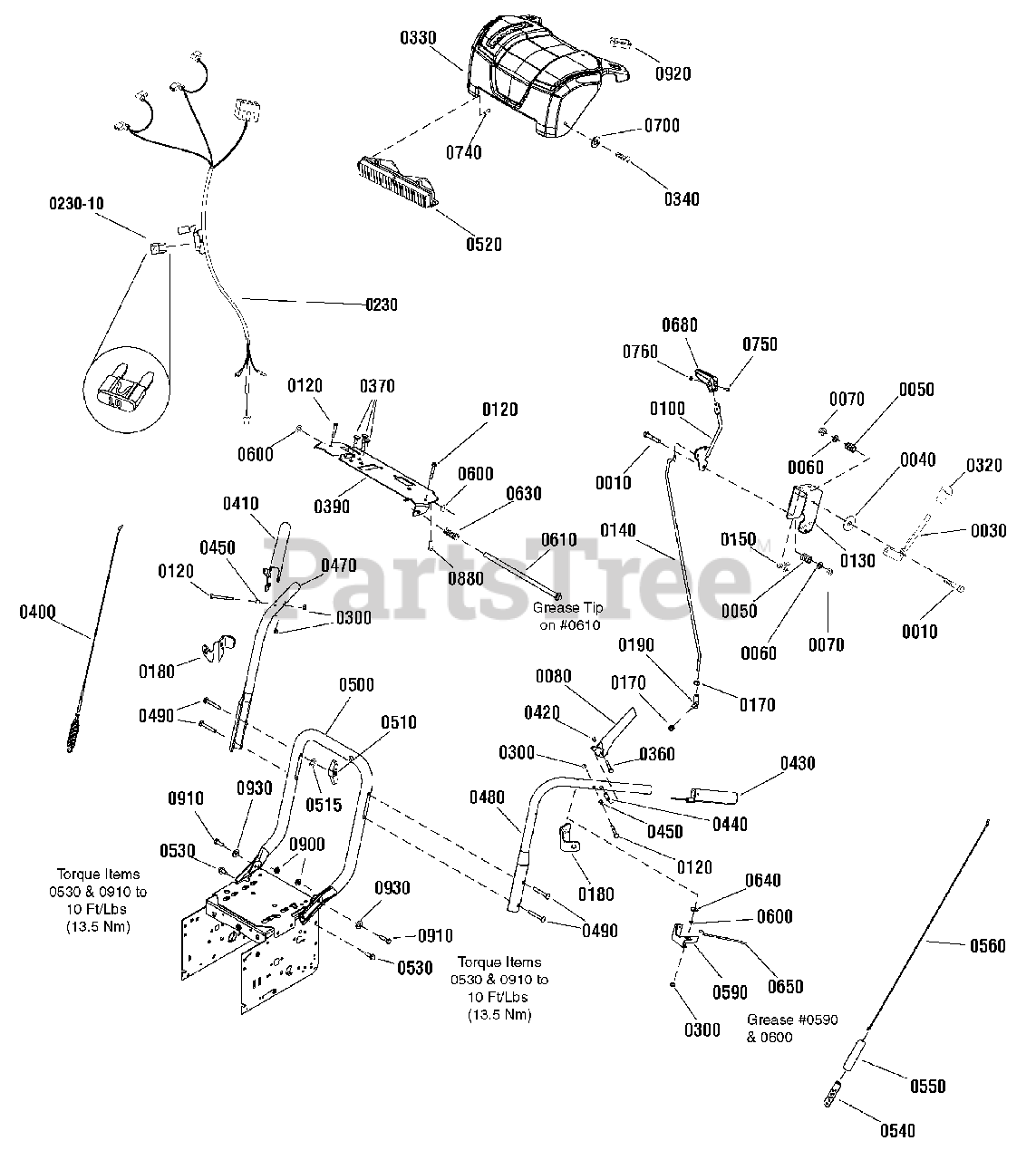

M 1227E (1695908) - Snapper 27" Snow Thrower, 11.5hp Handle & Controls Group Parts Diagram

27" Snow Thrower, 11.5hp

Handle & Controls Group Parts Diagram

  • Title

0010

Snapper 1923701

CAPSCREW, Hex Head, 3/8-16 x 2 G5
(Superseded to 703589)

$4.49

$

In Stock, Qty 12

0

0030

Snapper 1736192

LEVER, Deflector Control
(Superseded to 1736192YP)

$13.99

$

Usually ships in 2-12 days

0

0040

Snapper 1924356

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 8

0

0050

Snapper 724361

SPRING
(Superseded to 50786MA)

$5.49

$

Usually ships in 2-12 days

0

0060

Snapper 1918266

WASHER, 3/8
(Superseded to 71072MA)

$4.49

$

Usually ships in 2-12 days

0

0070

Snapper 1919439

NUT, Hex Lock, Esna Light, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0080

Snapper 1737690

LEVER, Clutch, Left
(Superseded to 1737690YP)

$37.99

$

Usually ships in 2-12 days

0

0100

Snapper 1736836

SPEED LEVER
(Superseded to 703047)

$56.99

$

Usually ships in 2-12 days

0

0120

Snapper 1921962

CAPSCREW, Hex Head, 1/4-20 x 1-3/4 G5
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0130

Snapper 1737684

BRACKET, Controls
(Superseded to 1737684YP)

$16.99

$

Usually ships in 2-12 days

0

0140

Snapper 1734354

ROD, 25.3/8 Long
(Superseded to 704085)

$22.99

$

Usually ships in 2-12 days

0

0150

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0170

Snapper 2820263

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

0180

Snapper 1739487

BRACKET, Mounting, Dash
(Superseded to 1739487YP)

$6.49

$

Usually ships in 2-12 days

0

0190

Snapper 724360

BALLJOINT
(Superseded to 50782MA)

$21.99

$

In Stock, only 1 left!

0

0230

Snapper 1738284

HARNESS, Wire, Headlights
(Superseded to 1738284YP)

$69.99

$

Usually ships in 2-12 days

0

0230-10

* FUSE, Mini, 10 Amp

$

$

Not available

0300

Snapper 1920397

NUT, Hex Lock, Esna Light, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0320

Snapper 1732470

KNOB, Internal Thread, 3/8-16
(Superseded to 1732470SM)

$19.99

$

In Stock, only 1 left!

0

0330

Snapper 1738327

DASH ASSEMBLY, Twin Light
(Superseded to 1757553YP)

$

$

Not available

0340

Snapper 1960001

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, Qty 20+

0

0360

Snapper 1922837

CAPSCREW, Hex Head, 1/4-20 x 1-1/2 G5
(Superseded to 703234)

$4.49

$

In Stock, only 3 left!

0

0370

Snapper 723873

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

0390

Snapper 1739500A

SUPPORT, Dash Panel
(Superseded to 1739500AYP)

$51.99

$

Usually ships in 2-12 days

0

0400

Snapper 1732471

ASSEMBLY, Cable & Spring, Right
(Superseded to 1732471SM)

$

$

Not available

0410

Snapper 1736323

LEVER, Clutch, Right
(Superseded to 1736323YP)

$20.99

$

Usually ships in 2-12 days

0

0420

Snapper 1923358

NUT, Hex Centerlock, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

0430

Snapper 1726317

GRIP
(Superseded to 1726317SM)

$8.49

$

In Stock, only 3 left!

0

0440

Snapper 1736542

SPACER, Stepped
(Superseded to 703223)

$4.49

$

Usually ships in 2-12 days

0

0450

Snapper 1678392

SPACER, 1/4ID x 3/8OD x 5/16
(Superseded to 703137)

$6.99

$

In Stock, only 2 left!

0

0470

Snapper 1734587A

HANDLE, Upper, Right
(Superseded to 1734587ASM)

$51.99

$

Usually ships in 2-12 days

0

0480

Snapper 1734586A

HANDLE, Upper, Left
(Superseded to 1734586ASM)

$55.99

$

In Stock, only 1 left!

0

0490

Snapper 1750299

BOLT, Carriage, Curved Head, 5/16-18 x 2-1/4
(Superseded to 703168)

$3.99

$

In Stock, only 4 left!

0

0500

Snapper 1737759A

HANDLE, Lower
(Superseded to 1737759AYP)

$176.99

$

Usually ships in 2-12 days

0

0510

Snapper 7035744

KNOB, Wing, 5/16-18
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

0515

Snapper 7090391

WASHER, Internal Tooth, 5/16
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

0520

Snapper 1736176

HEADLIGHT ASSEMBLY
(Superseded to 1736176YP)

$64.99

$

Usually ships in 2-12 days

0

--

* BULB, 12V - 20W Halogen (not shown)

$

$

Not available

--

Snapper 1736179

GASKET, Light Bulb (not shown)
(Superseded to 1736180YP)

$10.99

$

In Stock, only 4 left!

0

--

Snapper 1736180

SOCKET/GASKET ASSEMBLY, Light Bulb (not shown)
(Superseded to 1736180YP)

Note: (Includes 1736179)

$10.99

$

In Stock, only 4 left!

0

0530

Snapper 1664847

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0540

Snapper 723259

BRACKET, Cable Adjusting
(Superseded to 313441MA)

$

$

Not available

0550

Snapper 723154

BOOT, Spring End Cover
(Superseded to 308146MA)

$6.49

$

In Stock, only 1 left!

0

0560

Snapper 727331

CABLE, FR-DR P7 EXT-HDL
(Superseded to 1502113MA)

$22.99

$

In Stock, only 1 left!

0

0590

Snapper 1733505A

BRACKET, Pivot, Free Hand
(Superseded to 1733505BMYP)

$14.99

$

Usually ships in 2-12 days

0

0600

Snapper 1733095

SPACER, 1/4ID x 3/8OD x 1/8
(Superseded to 1733095SM)

$4.49

$

Usually ships in 2-12 days

0

0610

Snapper 1733509

ROD & SPRING ASSEMBLY
(Superseded to 1733509SM)

$81.99

$

Usually ships in 2-12 days

0

0630

Snapper 2108360

SPRING, Compression, 2-1/2 Inch
(Superseded to 2108360SM)

$5.49

$

In Stock, only 1 left!

0

0640

Snapper 1960353

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, only 2 left!

0

0650

Snapper 1736360

ROD, 5-1/2 Long
(Superseded to 1736360YP)

$11.99

$

Usually ships in 2-12 days

0

0680

Snapper 1733192

KNOB, Slot Speed
(Superseded to 1733192SM)

$8.49

$

Usually ships in 2-12 days

0

0700

Snapper 1921319

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0

0740

Snapper 7091105

SCREW, Hex Washer Head, Hi-Lo, #10-16 x 1/2
(Superseded to 7091105YP)

$5.49

$

In Stock, only 4 left!

0

0750

Snapper 1960589

SCREW, Round Head Phillips, #10-24 x 3/4
(Superseded to 1960589SM)

$3.99

$

Usually ships in 2-12 days

0

0760

Snapper 7091290

NUT, Hex Lock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

0880

Snapper 7091081

SCREW, 1/4-15X3/4, Self-Tapping, BZ
(Superseded to 7091081SM)

$4.49

$

In Stock, Qty 18

0

0900

Snapper 1935048

NUT, Hex Flange, Two-Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0910

Snapper 1921333

CAPSCREW, Hex Head, 5/16-18 x 1 G5
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

0920

Snapper 1709188

PLUG
(Superseded to 1709188SM)

$4.99

$

In Stock, Qty 7

0

0930

Snapper 725331

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0
