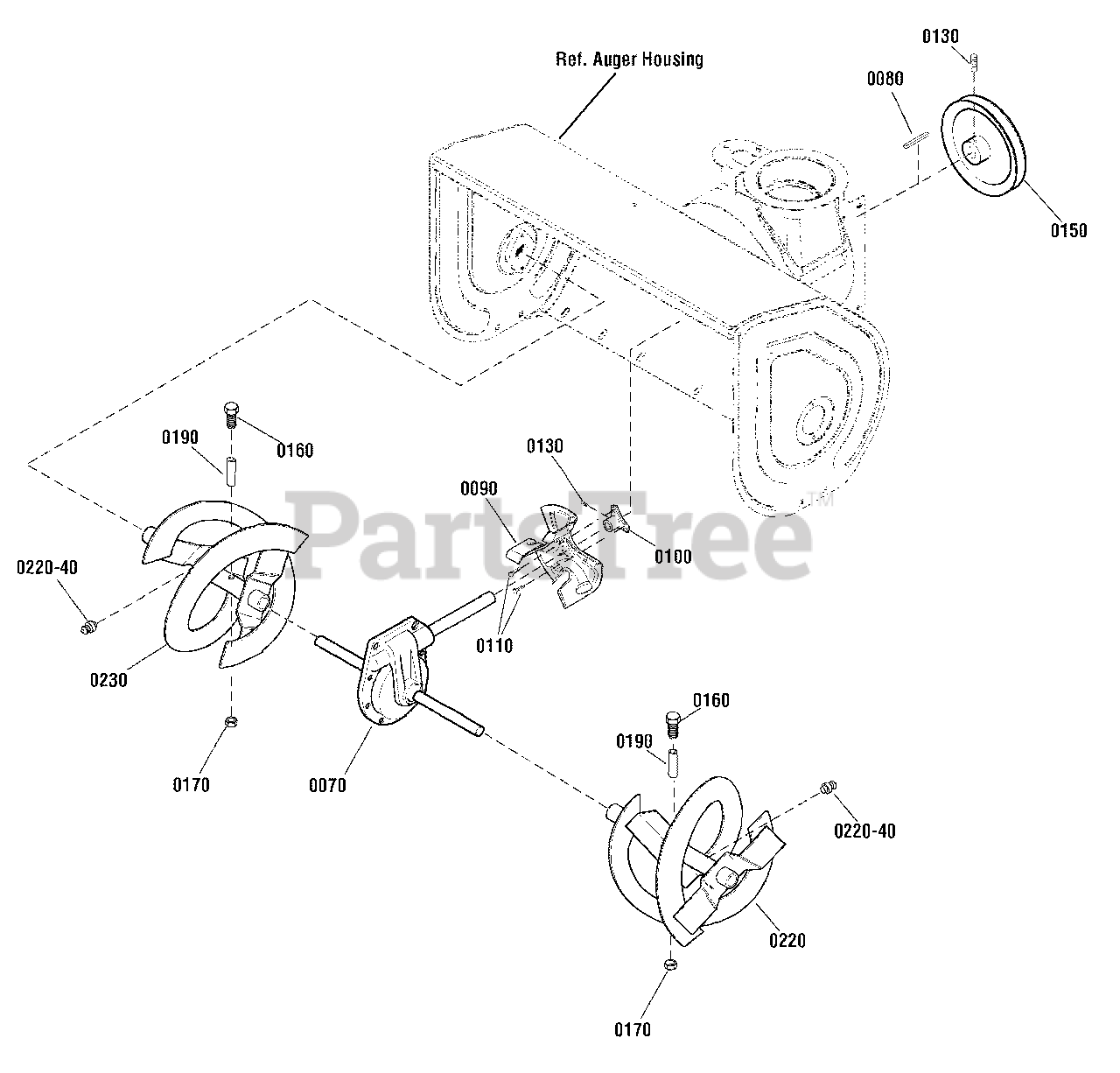

M 1227E (1696173-01) - Snapper 27" Snow Thrower, 11.5hp Auger Drive Group Parts Diagram

27" Snow Thrower, 11.5hp

Auger Drive Group Parts Diagram

  • Title

0070

Snapper 1752897YP

GEAR CASE ASSEMBLY, 27"

Note: (Used on 27" Models)

$683.99

$

Usually ships in 2-12 days

0

0080

Snapper 056534MA

KEY, Square, 3/16 x 3/4

$4.99

$

In Stock, only 1 left!

0

0090

Snapper 1739094AYP

IMPELLER
(Superseded to 1687600YP)

$86.99

$

In Stock, only 1 left!

0

0100

Snapper 1739073YP

HUB, Impeller

$23.99

$

In Stock, only 1 left!

0

0110

Snapper 1924856SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703985)

$4.49

$

In Stock, Qty 15

0

0130

Snapper 7090848SM

SET SCREW, Socket Head, 5/16-18 x 1/2

Note: (Used on 27" Models)

$10.99

$

In Stock, only 1 left!

0

0150

Snapper 1501211MA

PULLEY, 8.4 V4L .67 ID, Hybrid

$71.99

$

In Stock, only 1 left!

0

0160

Snapper 703057

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G2

$5.99

$

In Stock, Qty 20+

0

0170

Snapper 703251

NUT, Hex Center Lock, 1/4-20

$4.99

$

In Stock, Qty 20+

0

0190

Snapper 703058

SPACER, 1/4 x 1/2

$7.49

$

In Stock, Qty 16

0

0220

Snapper 1740736AYP

AUGER, LH, 27"

Note: (Used on 27" Models)

$

$

Not available

0230

Snapper 1740737AYP

AUGER, RH, 27"

Note: (Used on 27" Models)

$176.99

$

Usually ships in 2-12 days

0

0220-40

Snapper 703907

FITTING, Grease

Note: (Included with Ref. Nos. 0220 & 0230)

$4.99

$

In Stock, Qty 20+

0

--

Snapper C950527610MA

KIT, Shear Bolt
(Superseded to 1501216MA)

Note: (Includes Ref. Nos. 0160, 0170 & 0190)

$4.99

$

In Stock, Qty 20+

0
