M 1227E (1696173-01) - Snapper 27" Snow Thrower, 11.5hp Wheels & Tires Group Parts Diagram
27" Snow Thrower, 11.5hp

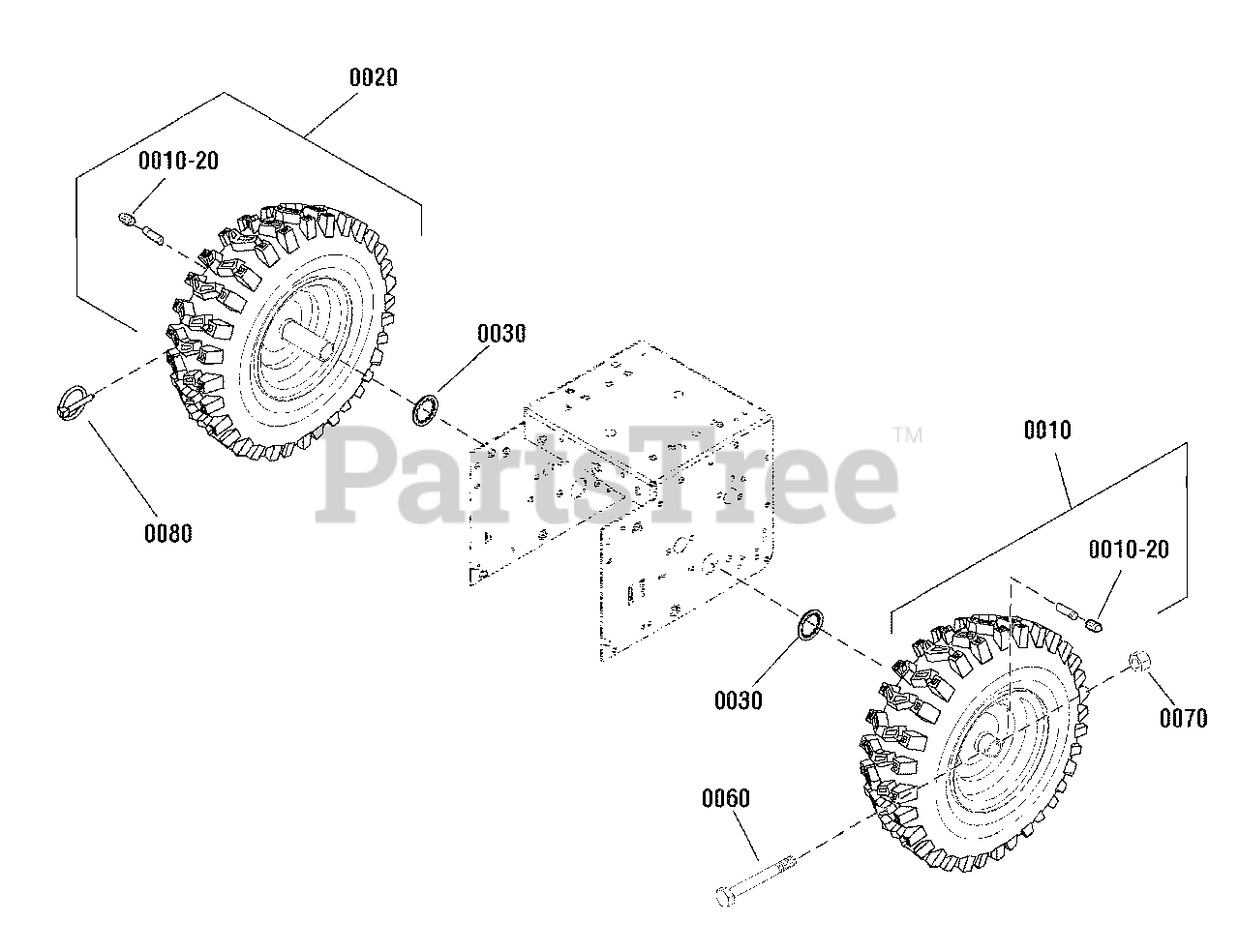

Wheels & Tires Group Parts Diagram
Snapper 1754486
WHEEL & TIRE ASSEMBLY, 15 x 5, P2-407, LH
(Superseded to 706970)
Note: (Used on 24" & 27" Models)
$125.99
$
Usually ships in 2-12 days
Snapper 1754243
WHEEL & TIRE ASSEMBLY, 4.80-8, P2-578, LH
(Superseded to 706974)
Note: (Used on 29" Model)
$145.99
$
Usually ships in 2-12 days
Snapper 1754487
WHEEL & TIRE ASSEMBLY, 15 x 5, P2-407, RH
(Superseded to 706971)
Note: (Used on 24" & 27" Models)
$128.99
$
Usually ships in 2-12 days
$
$
Not available
$6.49
$
In Stock, only 2 left!
Snapper 1657528
RING, Retaining, Self Lock, 3/4
(Superseded to 1657528SM)
Note: (Used on 24" & 27" Models)
$4.49
$
In Stock, Qty 20+
Snapper 80002714
BOLT, Hex, 1/4-20 x 1-3/4, G5
(Superseded to 7091003YP)
Note: (Qty 1 used on 24" & 27" Models)
$3.49
$
In Stock, only 2 left!
0070
NUT, 1/4-20, Nylock
Note: (Qty 1 used on 24" & 27" Models)
$
$
Not available
$9.99
$
In Stock, only 2 left!
