M 1227E (1696173-02) - Snapper 27" Snow Thrower, 11.5hp Engine & Frame Group - 11.5TP Parts Diagram

27" Snow Thrower, 11.5hp

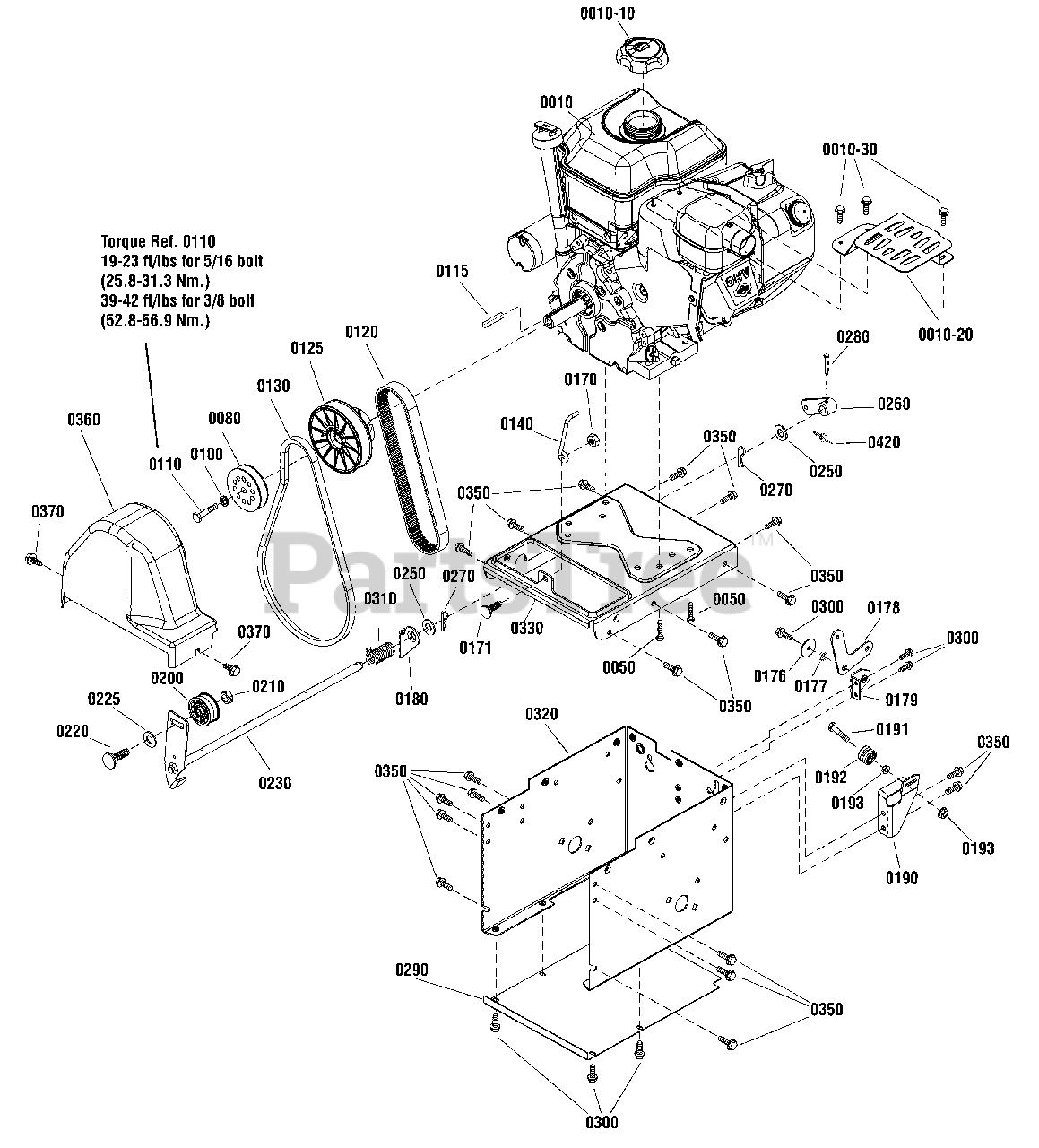

Engine & Frame Group - 11.5TP Parts Diagram

  • Title

0010

Snapper 15C114-0153-F8

* ENGINE, 11.5TP Briggs & Stratton, Model: 15C114-0153-F8

$

$

Not available

0010-10

Snapper 792647

* CAP, Fuel
(Superseded to 795027)

$10.99

$

In Stock, only 2 left!

0

0010-20

Snapper 797003

* GUARD, Muffler

$45.99

$

In Stock, only 1 left!

0

0010-30

Snapper 699854

* SCREW, Muffler Guard

$3.99

$

In Stock, Qty 19

0

0050

Snapper 75246

SCREW, Hex Head, Trilobular, 3/8-16 x 1-1/4
(Superseded to 75246GS)

$3.99

$

Usually ships in 2-12 days

0

0080

Snapper 1737509YP

PULLEY ASSY.

$

$

Not available

0100

Snapper 703116

LOCKWASHER, Spring, 5/16

$3.49

$

In Stock, Qty 20+

0

0110

Snapper 1750393YP

CAPSCREW, Hex Head, 5/16-24 x 1-3/4, GR8

$4.49

$

Usually ships in 2-12 days

0

0115

Snapper 2157427SM

KEY, Parallel, 3/16 x 3/16 x 1-1/4

$5.49

$

In Stock, only 1 left!

0

0120

Snapper 1737220YP

V-BELT, Multispeed

$49.99

$

In Stock, only 1 left!

0

0125

Snapper 1733968YP

PULLEY ASSY.

$76.99

$

In Stock, only 1 left!

0

0130

Snapper 724801

BELT, Auger, V4L 38.10 MF 05-10B
(Superseded to 585416MA)

$22.99

$

In Stock, Qty 12

0

0140

Snapper 1737377YP

STOP, Belt

$11.99

$

In Stock, only 1 left!

0

0170

Snapper 703222

NUT, Hex KEPS, 5/16-18

$5.99

$

In Stock, only 2 left!

0

0171

Snapper 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

0176

Snapper 703136

WASHER, Flat, 1/4

$3.99

$

Usually ships in 2-12 days

0

0177

Snapper 703124

SPACER, 1/4 x .118, GR5

$3.99

$

Usually ships in 2-12 days

0

0178

Snapper 1737329YP

BELLCRANK

$29.99

$

Usually ships in 2-12 days

0

0179

Snapper 1737328BMYP

BRACKET, Lower

$

$

Currently unavailable

0180

Snapper 1737297YP

BRACKET, Support, Auger Idler

$9.49

$

Usually ships in 2-12 days

0

0190

Snapper 1737347BMYP

BRACKET, Guide Wheel

$13.99

$

Usually ships in 2-12 days

0

0191

Snapper 703234

CAPSCREW, Hex Head, 1/4-20 x 1-1/2, GR5

$4.49

$

In Stock, only 3 left!

0

0192

Snapper 724621

SPOOL CABLE, Auger Control
(Superseded to 579860MA)

$5.99

$

In Stock, Qty 10

0

0193

Snapper 703233

NUT, Flange Serrated, 1/4-20, GR5

$4.49

$

In Stock, only 2 left!

0

0200

Snapper 722378

IDLER
(Superseded to 1502120MA)

$21.99

$

In Stock, only 1 left!

0

0210

Snapper 703230

NUT, Center Lock, 3/8-16

$4.99

$

In Stock, only 2 left!

0

0220

Snapper 703227

BOLT, Carriage, 3/8-16 x 1-1/4

$4.99

$

Usually ships in 2-12 days

0

0225

Snapper 1670971SM

WASHER, Thrust, 9/16

$4.49

$

In Stock, Qty 7

0

0230

Snapper 1737296YP

AUGER IDLER
(Superseded to 1756662YP)

$57.99

$

Usually ships in 2-12 days

0

0250

Snapper 1960027SM

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0260

Snapper 1733451SM

ARM, Control

$20.99

$

In Stock, Qty 5

0

0270

Snapper 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0280

Snapper 703313

PIN, Clevis

$4.99

$

In Stock, Qty 8

0

0290

Snapper 1737221BMYP

PANEL, Bottom

$43.99

$

Usually ships in 2-12 days

0

0300

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

0310

Snapper 1737350YP

SPRING, Torsion

$7.99

$

In Stock, only 1 left!

0

0320

Snapper 1737106DYP

FRAME, Engine

$125.99

$

Usually ships in 2-12 days

0

0330

Snapper 1754138DYP

PLATE, Engine

$67.99

$

Usually ships in 2-12 days

0

0350

Snapper 703235

SCREW, Thread Roll, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0360

Snapper 1750551YP

COVER, Belt

$26.99

$

In Stock, only 1 left!

0

0370

Snapper 1751355YP

SCREW, Hex Washer Head, Tap, SEMS, 1/4-20 x 3/4

$6.49

$

Usually ships in 2-12 days

0

0420

Snapper 7023590SM

PIN, Cotter, Self Lock, 1/4

$3.99

$

In Stock, Qty 20+

0
