M 135-38 (13A1762F058) - Murray 38" Lawn Tractor (2019) Axles, Switch & Chute Parts Diagram

38" Lawn Tractor

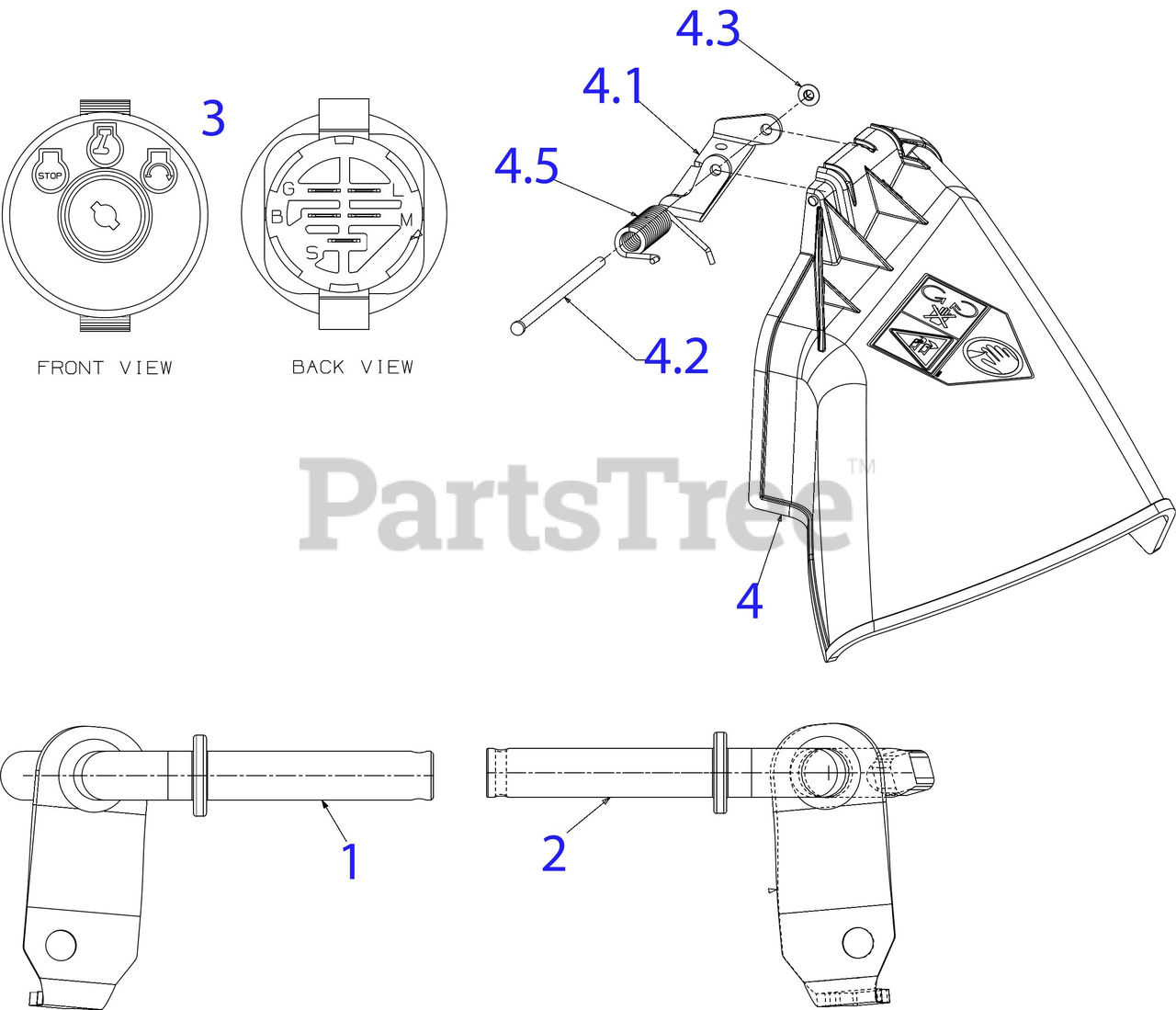

Axles, Switch & Chute Parts Diagram

  • Title

1

MTD 938-04007A-0637

FRONT AXLE ASSEMBLY (LH)

$48.99

$

In Stock, only 2 left!

0

2

MTD 638-04008P

FRONT AXLE ASSEMBLY (RH)

$54.99

$

In Stock, Qty 11

0

3

MTD 925-04659

3 POSITION KEY SWITCH

$46.99

$

In Stock, Qty 15

0

4

MTD 631-05229

CHUTE ASSEMBLY

Note: (Includes 4.1-4.5)

$86.99

$

In Stock, Qty 20+

0

4.1

MTD 703-10693A

HINGE MOUNTING BRACKET

$

$

Currently unavailable

4.2

MTD 7110792

HINGE PIN
(Superseded to 911-0792)

$4.99

$

In Stock, Qty 12

0

4.3

MTD 7260106

PUSH NUT
(Superseded to 926-0106)

$

$

Not available

4.5

MTD 732-04537

TORSION SPRING

$4.99

$

In Stock, only 1 left!

0
