M 1429E (1695735) - Snapper 29" Snow Thrower, 13.5hp Gear Case Assembly Parts Diagram

29" Snow Thrower, 13.5hp

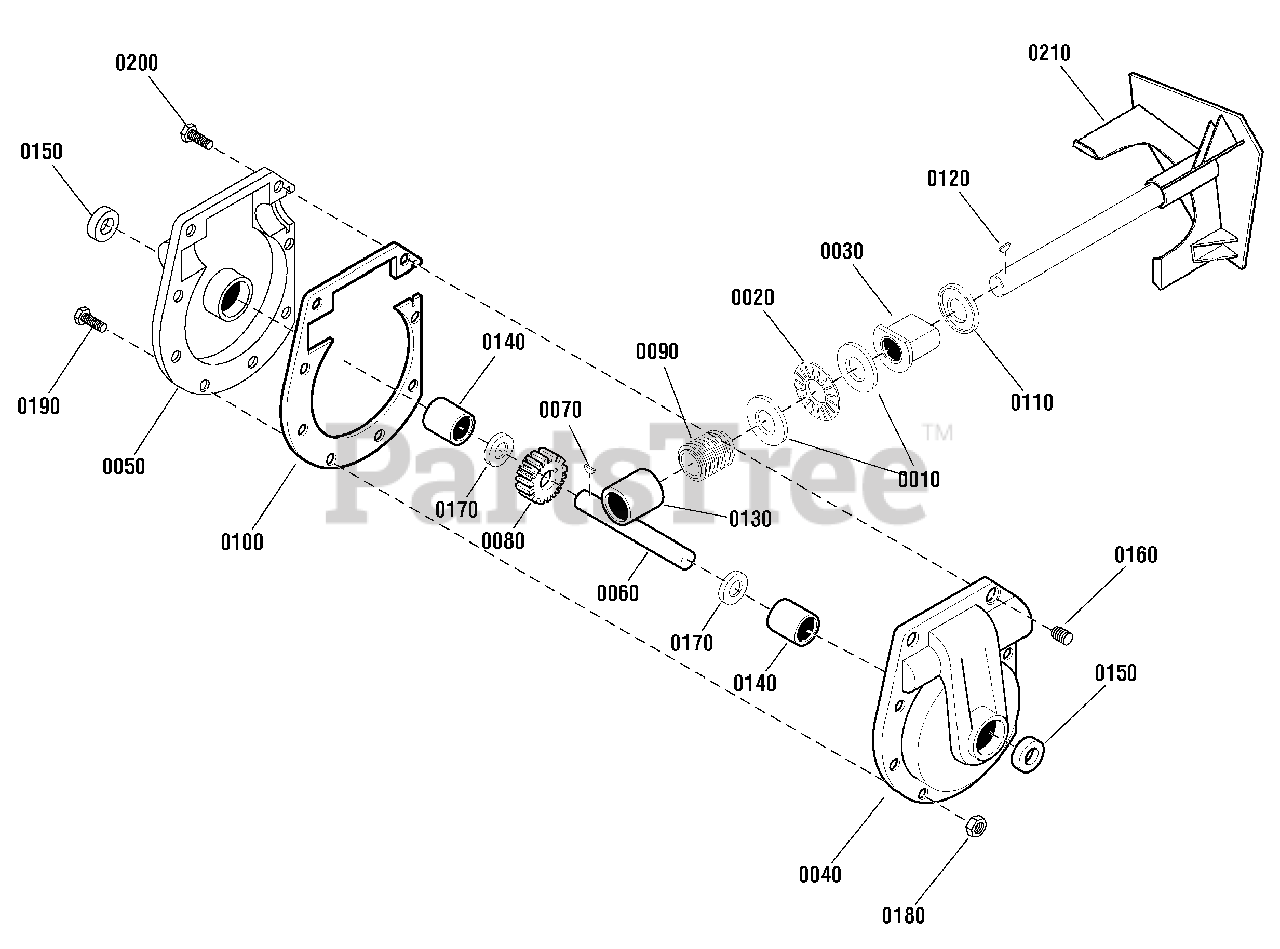

Gear Case Assembly Parts Diagram

  • Title

0010

Snapper 724079

WASHER, Thrust
(Superseded to 48275MA)

$6.49

$

In Stock, Qty 10

0

0020

Snapper 724352

BEARING, Roll
(Superseded to 50684MA)

$6.49

$

In Stock, only 3 left!

0

0030

Snapper 724729

BEARING, Flange, 3/4ID x 1OD
(Superseded to 583126MA)

$13.99

$

In Stock, only 1 left!

0

0040

Snapper 725981

CASE, Gear, Left
(Superseded to 895MA)

$

$

Not available

0050

Snapper 725982

CASE, Gear, Right
(Superseded to 896MA)

$32.99

$

In Stock, only 4 left!

0

0060

Snapper 724772

SHAFT, Auger Out
(Superseded to 584515MA)

$58.99

$

Usually ships in 2-12 days

0

0070

Snapper 725433

KEY, Woodruf
(Superseded to 704280)

$4.99

$

In Stock, Qty 10

0

0080

Snapper 724419

GEAR, Worm
(Superseded to 1752500YP)

$79.99

$

In Stock, only 1 left!

0

0090

Snapper 724421

WORMGEAR
(Superseded to 53732MA)

$49.99

$

In Stock, only 1 left!

0

0100

Snapper 725983

GASKET, Gear Box
(Superseded to 897MA)

$14.99

$

In Stock, only 1 left!

0

0110

Snapper 724423

RING, Quad
(Superseded to 53737MA)

$4.99

$

In Stock, Qty 8

0

0120

Snapper 724366

KEY, HI-PRO
(Superseded to 50795MA)

$5.99

$

In Stock, only 2 left!

0

0130

Snapper 724420

BEARING, Sleeve, 3/4ID x 7/8OD
(Superseded to 53731MA)

$5.49

$

In Stock, Qty 12

0

0140

Snapper 724424

BEARING, Sleeve
(Superseded to 53743MA)

$9.99

$

In Stock, only 2 left!

0

0150

Snapper 725874

SEAL, Oil
(Superseded to 780151MA)

$10.99

$

In Stock, Qty 8

0

0160

Snapper 724426

PLUG, Pipe
(Superseded to 703122)

$3.49

$

Usually ships in 2-12 days

0

0170

Snapper 724425

WASHER, Flat
(Superseded to 53748MA)

$9.99

$

In Stock, only 2 left!

0

0180

Snapper 725338

NUT, Hex Flange Serrated Lock, 5/16-24
(Superseded to 703123)

$3.49

$

In Stock, only 4 left!

0

0190

Snapper 725996

BOLT, Hex, 5/16-24 x 1
(Superseded to 703301)

$3.99

$

In Stock, Qty 6

0

0200

Snapper 723575

SCREW, Hex, 5/16-24 x 1-1/2
(Superseded to 703568)

$4.99

$

Usually ships in 2-12 days

0

0210

Snapper 1740584A

IMPELLER
(Superseded to 1740584AYP)

$271.99

$

Usually ships in 2-12 days

0
