M 1429E (1695735) - Snapper 29" Snow Thrower, 13.5hp Wheel Group Parts Diagram

29" Snow Thrower, 13.5hp

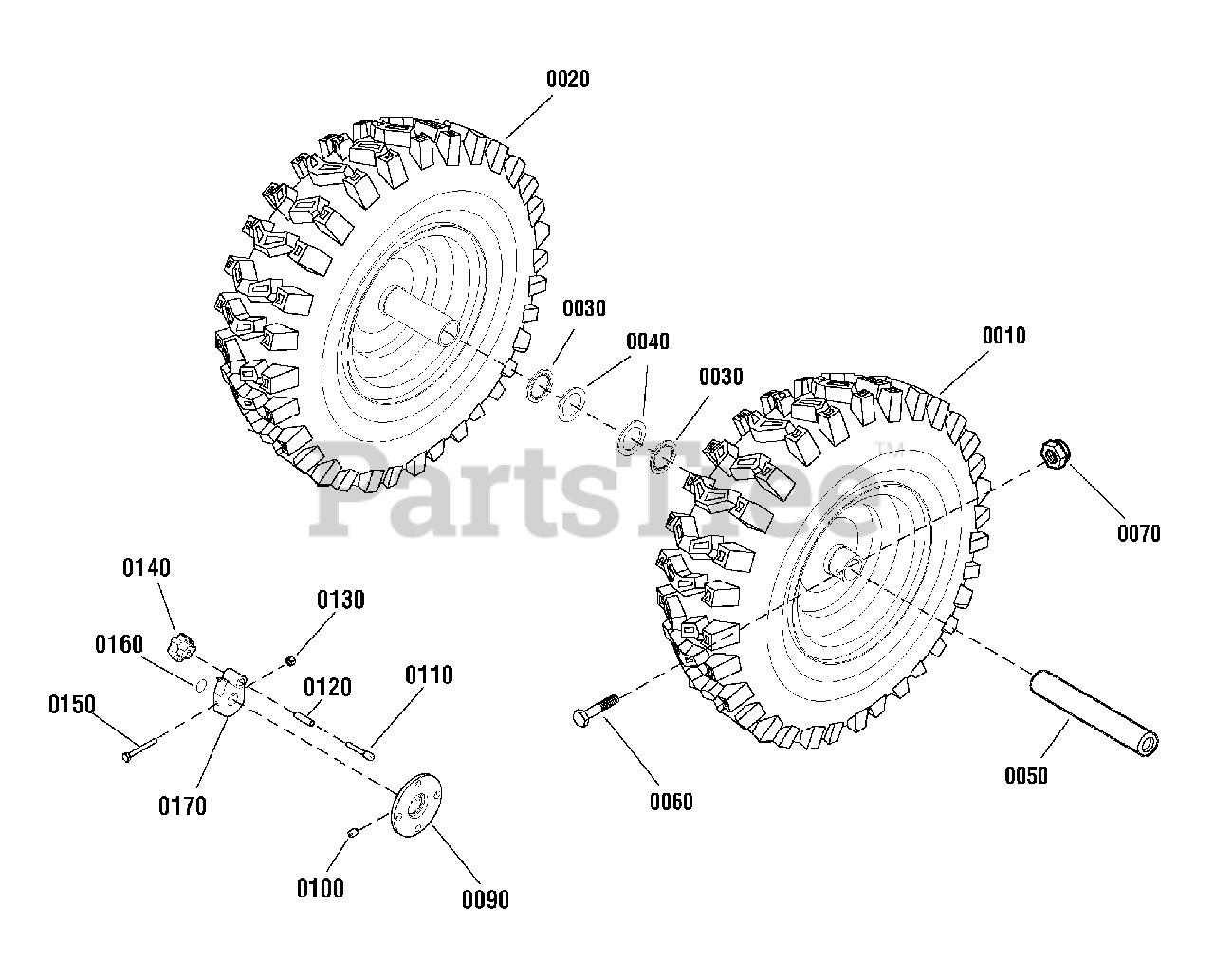

Wheel Group Parts Diagram

  • Title

0010

Snapper 1736781

ASSEMBLY, Tire & Rim, L.H.
(Superseded to 1736781YP)

$159.99

$

Usually ships in 2-12 days

0

0020

Snapper 1736780

ASSEMBLY, Tire & Rim, R.H.
(Superseded to 1736780YP)

$136.99

$

Usually ships in 2-12 days

0

0030

Snapper 1657528

RING, Retaining
(Superseded to 1657528SM)

$4.49

$

In Stock, Qty 20+

0

0040

Snapper 725394

WASHER, Flat, 3/4
(Superseded to 712120MA)

$4.99

$

In Stock, only 2 left!

0

0050

Snapper 722102

BUSHING, Wheel
(Superseded to 1501138MA)

$

$

Not available

0060

Snapper 724545

BOLT, Hex, 1/4-20 x 1-3/4 G5
(Superseded to 577015MA)

$4.99

$

In Stock, Qty 9

0

0070

Snapper 722400

NUT, Hex Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0090

Snapper 722053

DISC, Wheel Lock
(Superseded to 1501032EMA)

$32.99

$

Usually ships in 2-12 days

0

0100

Snapper 722727

SCREW, Hex, 3/8-16 x 1/2
(Superseded to 2001066MA)

$5.49

$

In Stock, only 2 left!

0

0110

Snapper 722309

PIN, Wheel Lock
(Superseded to 1501856YZMA)

$15.99

$

In Stock, only 3 left!

0

0120

Snapper 722412

SPRING, Compression
(Superseded to 164X34MA)

$5.99

$

In Stock, only 2 left!

0

0130

Snapper 1920397

NUT, Hex Lock ESNA, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0140

Snapper 722308

KNOB, Wheel Lock
(Superseded to 1501855MA)

$13.99

$

In Stock, only 1 left!

0

0150

Snapper 725430

SCREW, Hex, 1/4-20 x 2-1/4 G8
(Superseded to 73839MA)

$5.49

$

In Stock, Qty 9

0

0160

Snapper 724256

DECAL, Wheel Lock
(Superseded to 48X5600MA)

$14.99

$

Usually ships in 2-12 days

0

0170

Snapper 722310

HUB, Wheel Lock
(Superseded to 1501857MA)

$34.99

$

In Stock, only 3 left!

0

--

Snapper 7012234

VALVE, Stem & Cap (Not shown)
(Superseded to 7012234SM)

Note: or 2172353

$6.49

$

In Stock, only 2 left!

0

--

Snapper 2164247

TUBE, Tire 16 x 6 1/2-8 (Not shown)
(Superseded to 2164247SM)

$40.99

$

In Stock, only 1 left!

0
