M 1527SE (1696822-03) - Snapper 27" Snow Thrower, 14.5hp (2019) Engine & Frame Group Parts Diagram

27" Snow Thrower, 14.5hp

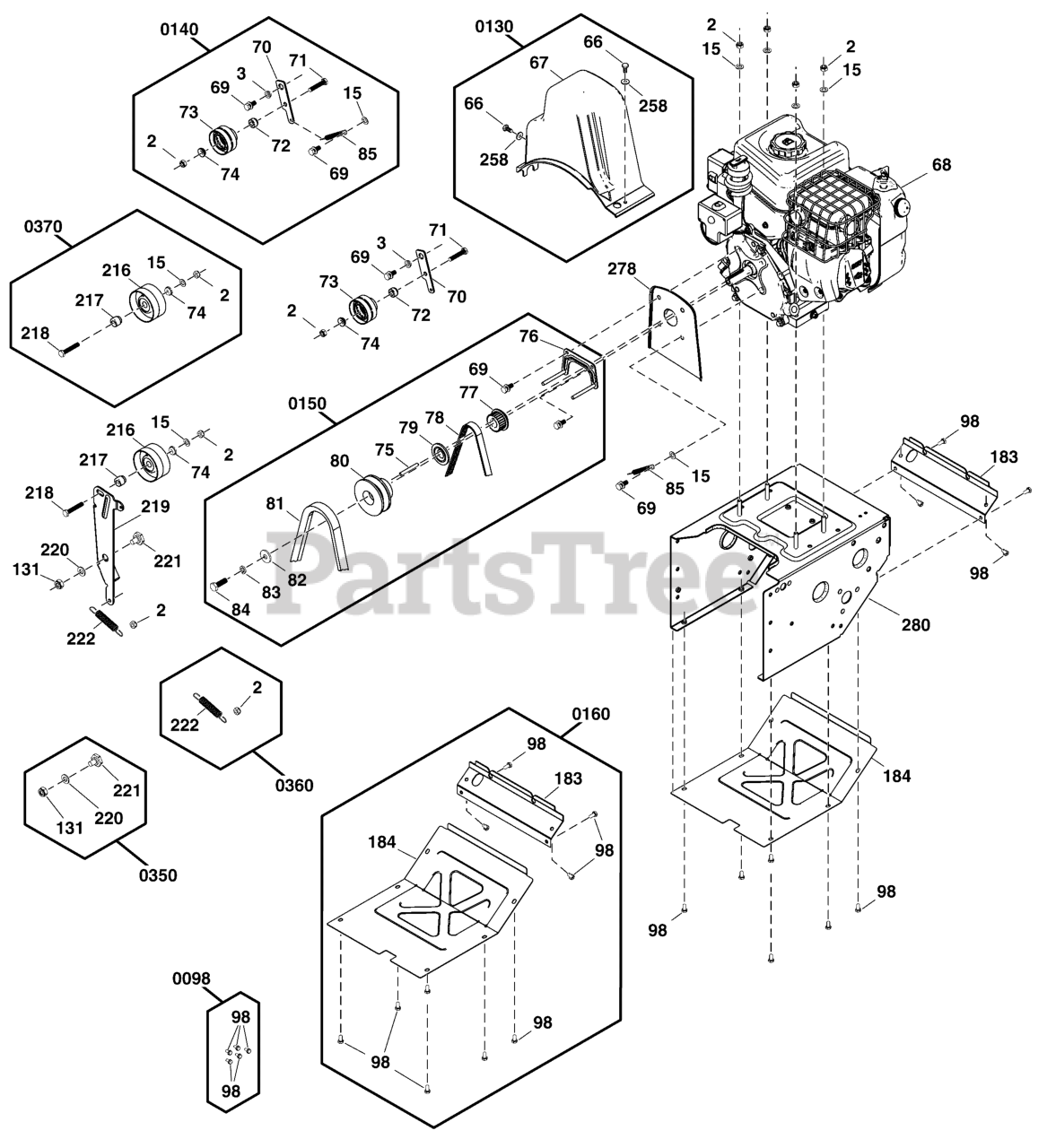

Engine & Frame Group Parts Diagram

  • Title

68

Snapper 19J137-0002-F1

* ENGINE, 14.5TP Briggs & Stratton, Export

Note: (Engine Model: 19J137-0002-F1) (Refer to Note: *)

$

$

Not available

219

Snapper 770805

IDLER, Auger

$45.99

$

Usually ships in 2-12 days

0

278

Snapper 1688082

KIT, WATER SHIELD, 306/420CC

$34.99

$

Usually ships in 2-12 days

0

280

MOTOR BOX ASSEMBLY, Red

Note: (Refer to Note: **)

$

$

Not available

0098

Snapper 771904

KIT, Hardware

Note: (Incl. Ref. No. 98)

$6.99

$

Usually ships in 2-12 days

0

98

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

0130

Snapper 770792

KIT, Belt Cover

Note: (Incl. Ref. Nos. 66, 67, 258)

$51.99

$

Usually ships in 2-12 days

0

66

SCREW, Hex Head, M6 X 12

$

$

Not available

67

COVER, Belt

$

$

Not available

258

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

0140

Snapper 84003882

KIT, Idler Pulley, Traction Drive

Note: (Incl. Ref. Nos. 2, 3, 15, 69, 70, 71, 72, 73, 74, 85)

$

$

Currently unavailable

2

NUT, Lock, M8

$

$

Not available

3

SPACER, Idler Plate, Small

$

$

Not available

15

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

69

SCREW, Hex Flange Head, M8 X 20

$

$

Not available

70

BRACKET, Idler

$

$

Not available

71

SCREW, Button Head, M8 X 40

$

$

Not available

72

SPACER, Idler Pulley

$

$

Not available

73

PULLEY, Idler

$

$

Not available

74

SPACER, Idler Pulley

$

$

Not available

85

SPRING, Idler

$

$

Not available

0150

Snapper 770818

KIT, Idler Pulley, Traction Drive

Note: (Incl. Ref. Nos. 69, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84)

$

$

Not available

69

SCREW, Hex Flange Head, M8 X 20

$

$

Not available

75

KEY, Flat, 5 X 4.7 X 50

$

$

Not available

76

GUIDE, Belt

$

$

Not available

77

PULLEY, Drive

$

$

Not available

78

Snapper 770799

BELT, Traction Drive

$29.99

$

In Stock, only 2 left!

0

79

SPACER, Belt Wheel

$

$

Not available

80

PULLEY, Auger

$

$

Not available

81

Snapper 770797

BELT, Auger Drive

$81.99

$

In Stock, only 4 left!

0

82

WASHER, 10x28x3, Flat

$

$

Not available

83

WASHER, M10, Split Lock

$

$

Not available

84

SCREW, Hex Head, M10 X 30

$

$

Not available

0160

Snapper 770823

KIT, Bottom Cover

Note: (Incl. Ref. Nos. 98, 183, 184)

$64.99

$

Usually ships in 2-12 days

0

98

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

183

COVER, Back, Black

$

$

Not available

184

COVER, Bottom, Black

$

$

Not available

0350

Snapper 707565

KIT-HARDWARE, IDLER BRACKET

Note: (Incl. Ref. Nos. 131, 220, 221)

$9.49

$

Usually ships in 2-12 days

0

131

NUT, Lock, M10

$

$

Not available

220

WASHER, Flat, 10 X 20 X 2

$

$

Not available

221

SCREW, Hex Head, M10 X 13

$

$

Not available

0360

Snapper 770806

SPRING, Idler Pulley

Note: (Incl. Ref. Nos. 2, 222)

$4.49

$

In Stock, only 1 left!

0

2

NUT, Lock, M8

$

$

Not available

222

SPRING, Idler

$

$

Not available

0370

Snapper 770807

KIT, Idler Pulley, Tension Plate

Note: (Incl. Ref. Nos. 2, 15, 74, 216, 217, 218)

$40.99

$

Usually ships in 2-12 days

0

2

NUT, Lock, M8

$

$

Not available

15

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

74

SPACER, Idler Pulley

$

$

Not available

216

PULLEY, Idler

$

$

Not available

217

SPACER, Sleeve, Idler Pulley

$

$

Not available

218

SCREW, Hex Head, M8 X 45

$

$

Not available
