M 1529E (1696175-01) - Snapper 29" Snow Thrower, 14.5hp Chute & Rotation Group Parts Diagram

29" Snow Thrower, 14.5hp

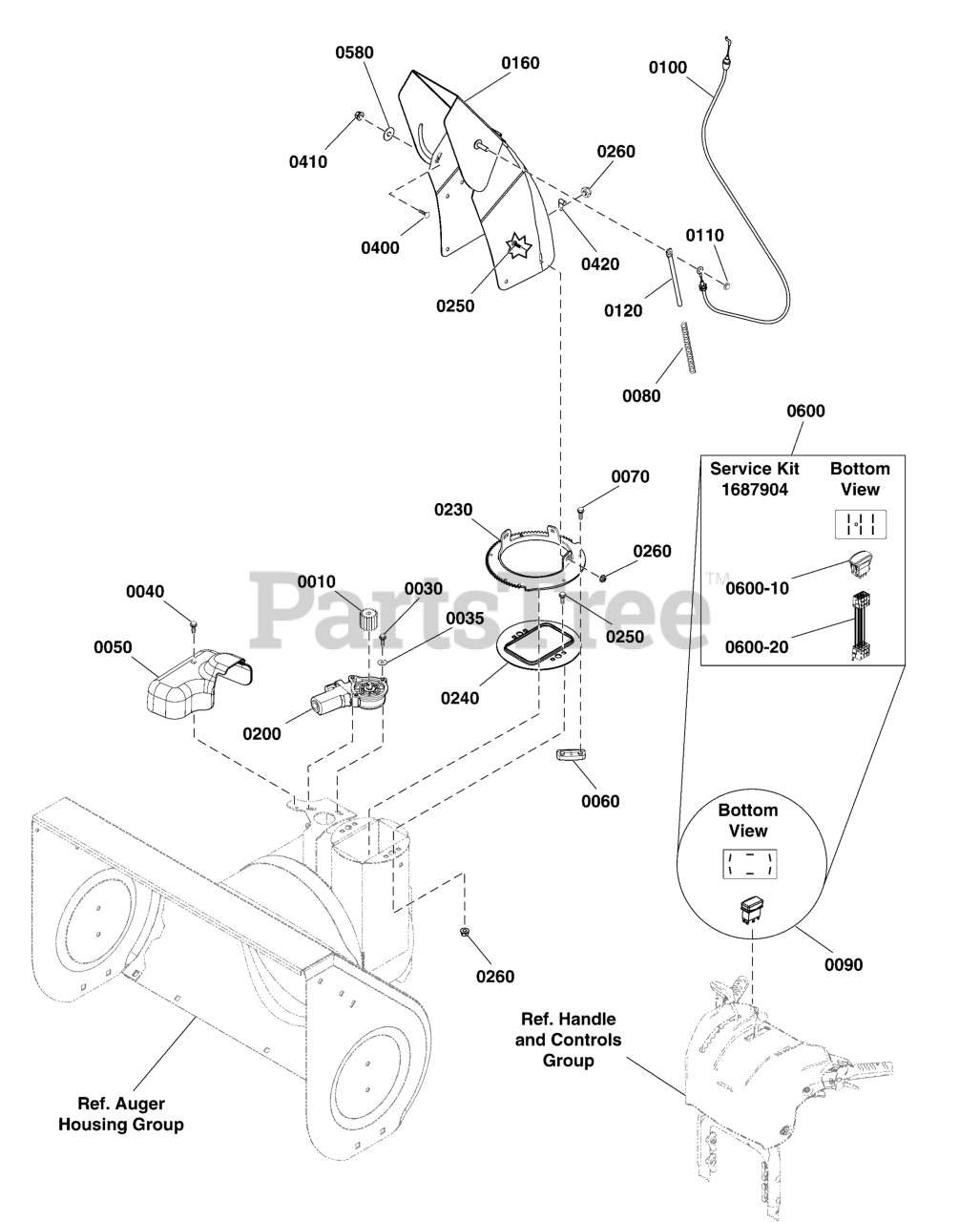

Chute & Rotation Group Parts Diagram

  • Title

0010

Snapper 1728967SM

PINION

$18.99

$

In Stock, Qty 6

0

0030

Snapper 1739621YP

SCREW, Button Head Torx, M5 x .8 x 14

$4.49

$

In Stock, Qty 10

0

0035

Snapper 7091552SM

WASHER, Flat, 1/4

$3.99

$

In Stock, Qty 11

0

0040

Snapper 703466

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 20+

0

0050

Snapper 1752877YP

COVER, Electric Chute Rotation

$17.99

$

In Stock, only 2 left!

0

0060

Snapper 7011938SM

RETAINER, Spout

$4.49

$

Usually ships in 2-12 days

0

0070

Snapper 703062

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8

$4.99

$

In Stock, Qty 20+

0

0080

Snapper 703135

SPRING, Compression, 6 Inch

$4.49

$

Usually ships in 2-12 days

0

0090

Snapper 1754865YP

SWITCH, Chute Rotation, 6 Prong
(Superseded to 1687904)

Note: (Used Before Serial No. 2017430819) (Order 0600 When Bottom View of Switch Terminal Pattern Matches 0090.)

$87.99

$

In Stock, only 3 left!

0

0100

Snapper 1750623YP

CABLE, Delfector Control

$49.99

$

In Stock, Qty 11

0

0110

Snapper 704028

NUT, Push, 5/16

$5.49

$

In Stock, Qty 7

0

0120

Snapper 1734708BMYP

ROD, Spring Guide, 5-7/8

$

$

Currently unavailable

0160

Snapper 1737443DYP

CHUTE

$184.99

$

In Stock, only 1 left!

0

0200

Snapper 1739309YP

MOTOR, Spout Rotator
(Superseded to 708703)

$91.99

$

In Stock, Qty 9

0

0230

Snapper 1737465BMYP

GEAR, Short, Steel Chute

$

$

Not available

0240

Snapper 1737411YP

ADAPTER, Chute Ring

$20.99

$

Usually ships in 2-12 days

0

0250

Snapper 703101

BOLT, Carriage, 1/4-20 x 3/4 , GR5

$4.49

$

In Stock, only 4 left!

0

0260

Snapper 703061

NUT, Hex KEPS, 1/4-20

$3.99

$

In Stock, Qty 11

0

0400

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0410

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 11

0

0420

Snapper 703174

CLIP, Cable Mounting

$4.49

$

Usually ships in 2-12 days

0

0580

Snapper 2860210SM

WASHER, Nylon, 3/8

$4.99

$

In Stock, only 2 left!

0

0600

Snapper 1687904

WIRE HARNESS ADAPTER KIT, CHUTE ROTATION

Note: (Used Before Serial No. 2017430819) (Order 0600-10 When Bottom View of Switch Terminal Pattern Matches 0600.)

$87.99

$

In Stock, only 3 left!

0

0600-10

Snapper 709954

SWITCH, Chute Rotation

Note: (Used After Serial No. 2017430818)

$49.99

$

In Stock, only 3 left!

0

0600-20

Snapper 84003010

HARNESS, Wire

Note: (Used Before Serial No. 2017430819)

$47.99

$

In Stock, only 1 left!

0
