M 200-46 (RZT-46) (17ADCACT058) - Murray Select 46" Zero-Turn Mower (2015) Deck Lift Parts Diagram

Select 46" Zero-Turn Mower

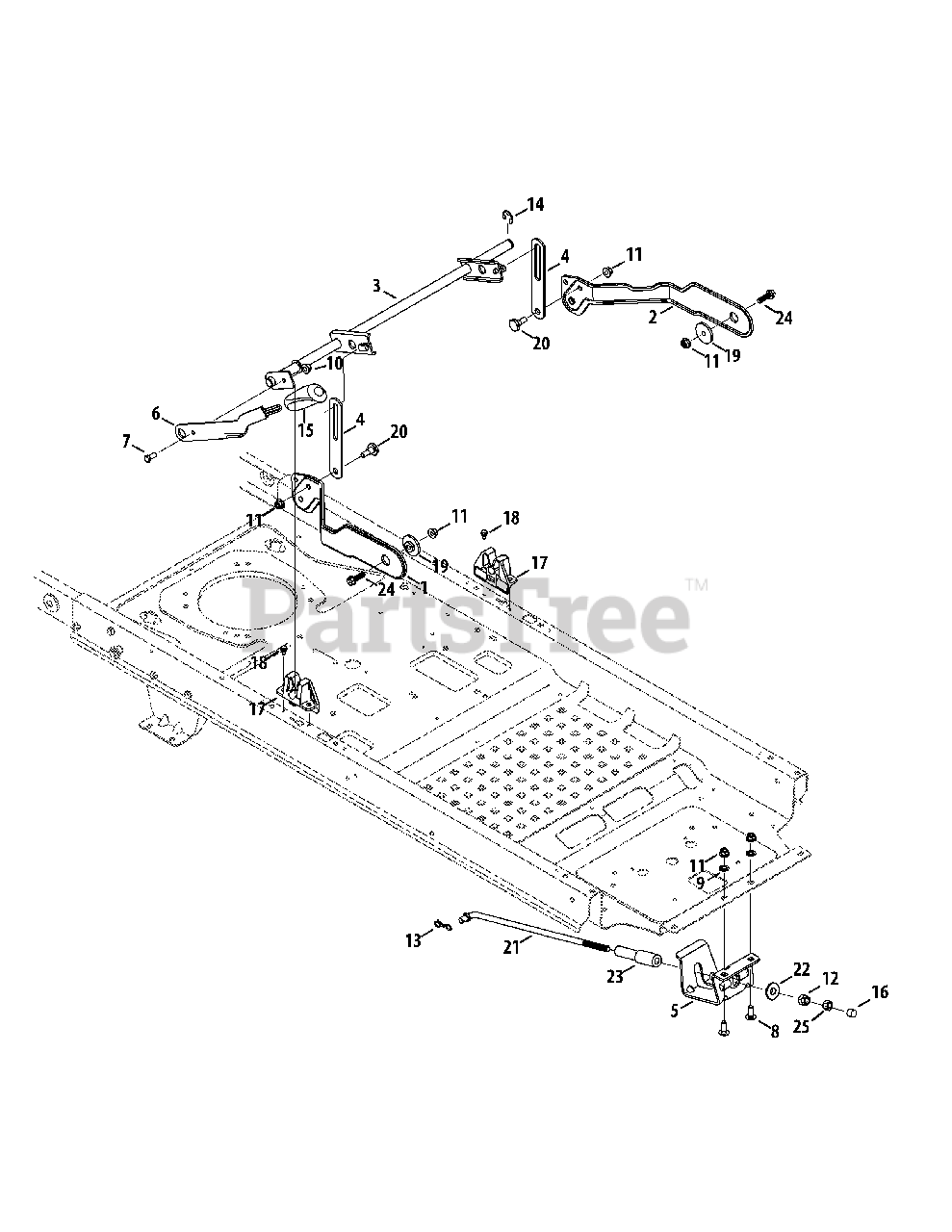

Deck Lift Parts Diagram

  • Title

1

MTD 603-05107B-0637

Deck Lift Plate, RH

$88.99

$

In Stock, Qty 6

0

2

MTD 603-05108B-0637

Deck Lift Plate, LH

$88.99

$

In Stock, Qty 6

0

3

MTD 903-05138

Deck Lift Shift Assembly

$90.99

$

Usually ships in 3-6 days

0

4

MTD 703-08591A-0637

Lift Link Plate

$18.99

$

Usually ships in 3-6 days

0

5

MTD 703-08644-0637

Rod Support Mounting Bracket
(Superseded to 703-08644A-0637)

$17.99

$

In Stock, only 4 left!

0

6

MTD 703-09621

Deck Lift Handle
(Superseded to 703Z09621A)

$13.99

$

In Stock, only 4 left!

0

7

MTD 710-3008

Hex Cap Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-0229

Push Nut, 3/8

$3.49

$

In Stock, Qty 20+

0

10

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-05046

Hex Nut, 1/2-13

$3.99

$

In Stock, Qty 20+

0

13

MTD 714-05005

Bow-Tie Cotter Pin

$4.49

$

In Stock, Qty 20+

0

14

MTD 916-0231

E-Type Ring, .750
(Superseded to 716-0231)

$

$

Not available

15

MTD 720-04139B

Grip, .50 ID

$17.99

$

In Stock, Qty 6

0

16

MTD 726-05009

End Cap

$3.99

$

In Stock, Qty 20+

0

17

MTD 731-08782

Deck Lift Bracket

$8.49

$

Usually ships in 3-6 days

0

18

MTD 738-04278

Shoulder Screw, .500 x 1/4-20

$6.49

$

In Stock, Qty 20+

0

19

MTD 738-05029

Shoulder Spacer, .854 x .232

$8.99

$

In Stock, Qty 14

0

20

MTD 938-0507B

Shoulder Screw, .500 Dia. x .434
(Superseded to 738-0507B)

$4.49

$

In Stock, Qty 20+

0

21

MTD 747-05552C

Deck Lift Rod

$29.99

$

In Stock, Qty 20+

0

22

MTD 748-04069

Deck Lift pivot Cup
(Superseded to 748-04069A)

$5.49

$

In Stock, Qty 20+

0

23

MTD 750-05658

Nylon Sleeve, .55 ID x 4.50 LG

$6.49

$

In Stock, Qty 20+

0

24

MTD 710-04683C

Screw, 3/8-16 x 1.00

$6.49

$

In Stock, Qty 6

0

25

MTD 912-3048

Nut, Jam, 1/2-13
(Superseded to 712-3048)

$4.49

$

In Stock, Qty 20+

0
