M 205 (CMXGMAM201203) (12A-A2SD791) - Craftsman Walk-Behind Mower (2021) Deck Assembly Parts Diagram

Walk-Behind Mower

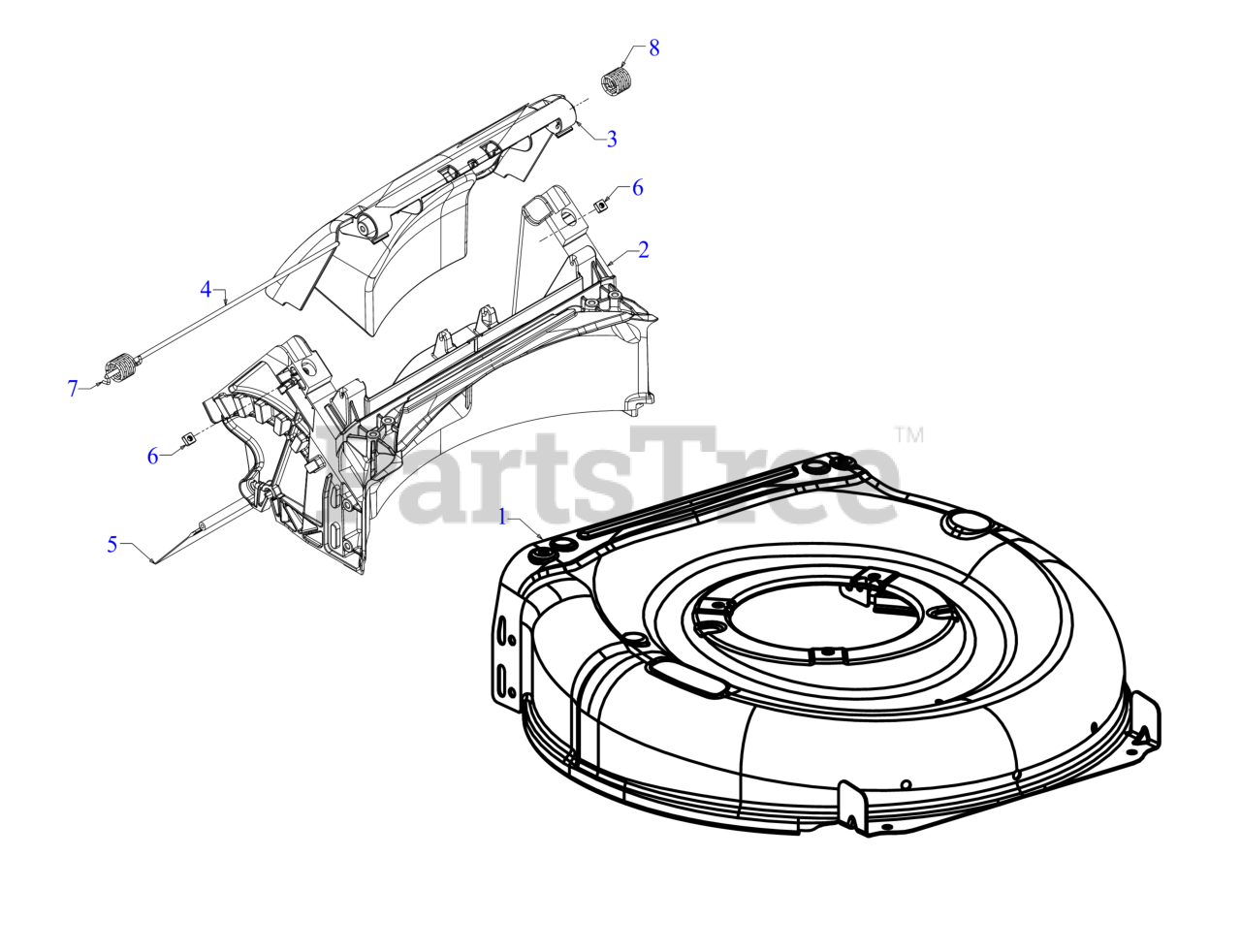

Deck Assembly Parts Diagram

  • Title

1

MTD 787-01871B

21" DECK (3N1)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

787-01871B-0638

MTD 787-01871B-0638

DECK-21" 3 IN 1 SP - MTD/TROY-BILT RED (0638)

$134.99

$

In Stock, only 1 left!

0

787-01871B-0665

MTD 787-01871B-0665

DECK-21" 3 IN 1 SP - YARDMAN GREEN (0665)

$134.99

$

Usually ships in 3-6 days

0

787-01871B-0691

MTD 787-01871B-0691

DECK-21" 3 IN 1 SP - BLACK JACK (0691)

$134.99

$

Usually ships in 3-6 days

0

787-01871B-0709

MTD 787-01871B-0709

DECK-21" 3 IN 1 SP - MASTERCRAFT GREEN (0709)

$134.99

$

Usually ships in 3-6 days

0

787-01871B-4021

MTD 787-01871B-4021

DECK-21" 3 IN 1 SP - CUB YELLOW 2 (4021)

$117.99

$

Usually ships in 3-6 days

0

787-01871B-4043

MTD 787-01871B-4043

DECK-21" 3 IN 1 SP - CRAFTSMAN METALLIC GRAY (4043)

$134.99

$

Usually ships in 3-6 days

0

787-01871B-4044

MTD 787-01871B-4044

DECK-21" 3 IN 1 SP - CRAFTSMAN RED (4044)

$134.99

$

Usually ships in 3-6 days

0

$109.99

$

Usually ships in 3-6 days

0

2

MTD 631-04369A

REAR BAG DOOR ASSEMBLY
(Superseded to 631-08159)

$59.99

$

In Stock, Qty 8

0

3

MTD 631-04369A

REAR BAG DOOR ASSEMBLY
(Superseded to 631-08159)

$59.99

$

In Stock, Qty 8

0

4

MTD 747-05183

REAR DOOR PIVOT ROD

$4.49

$

In Stock, Qty 9

0

5

MTD 731-07203

TRAILSHIELD

$11.99

$

In Stock, Qty 20+

0

6

MTD 712-04222

SQUARE NUT 1/4-20

$5.99

$

In Stock, Qty 20+

0

7

MTD 732-05061A

TORSION SPRING (RH)
(Superseded to 732-05061B)

$5.99

$

In Stock, Qty 15

0

8

MTD 732-05062A

TORSION SPRING (LH)

$5.99

$

In Stock, Qty 7

0
