M 21 BMR C - Lawn-Boy Walk-Behind Mower (SN: K00000001 - K99999999) (1991) HANDLE AND REAR GRASS CATCHER GROUP MODELS: M21BMRB, C & D Parts Diagram

Walk-Behind Mower

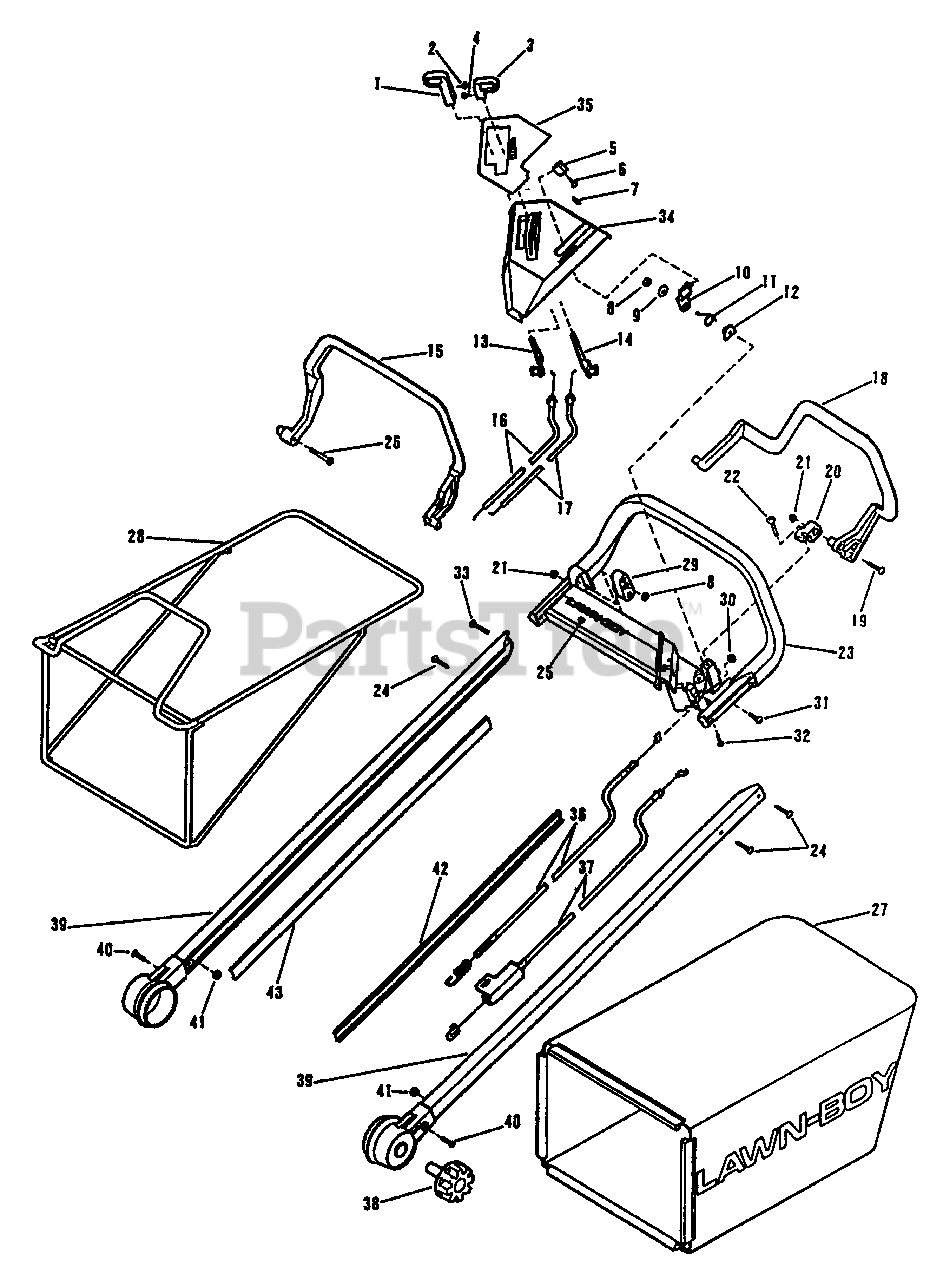

HANDLE AND REAR GRASS CATCHER GROUP MODELS: M21BMRB, C & D Parts Diagram

  • Title

1

Lawn-Boy 684400

Knob Assembly-Gear Select

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 614013

Set Screw

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

3

Lawn-Boy 684399

Knob Assembly-Throttle

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 614013

Set Screw

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

5

Lawn-Boy 684401

Knob Assembly-BBC Latch

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 614013

Set Screw

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

7

Lawn-Boy 145482

Plug

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 602315

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, only 2 left!

0

9

Lawn-Boy 146251

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 613414

BBC Latch Lever

Note: Important Note: Replacement parts may not always be available in matching colors.

$9.49

$

Usually ships in 3-6 days

0

11

Lawn-Boy 613396

Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 613395

Spacer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 684445

Gear Select Lever

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 684446

Throttle Lever

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 613416

Blade Brake Bail

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 684212

Cable Assembly-Gear Select

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 684210

Cable Assembly-Throttle

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 613417

Self-propelled Bail

Note: Important Note: Replacement parts may not always be available in matching colors.

$201.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 613553

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 613409

Bail Pivot

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 613406

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 613551

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 684424

Handle and Decal Assembly
(Superseded to 684581)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 614023

Screw-Thread Forming

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

25

Lawn-Boy 613980

Decal-Lawn-Boy

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

26

Lawn-Boy 613555

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 684189

Rear Grass Bag

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 684130

Frame

Note: Important Note: Replacement parts may not always be available in matching colors.

$237.45

$

In Stock, only 1 left!

0

29

Lawn-Boy 613412

Bail Block

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 613550

Nut-Self-propelled Cable

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 613339

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 613549

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 613405

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 684426

Upper Cover Assy (BMRB)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 684267

Upper Cover Assy (BMRC & D)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 613481

Plate

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

36

Lawn-Boy 684248

Cable Assembly-Self-propelled
(Superseded to 684697)

Note: Important Note: Replacement parts may not always be available in matching colors.

$162.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 684211

Cable Assembly-BBC

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

38

Lawn-Boy 613358

Knob-Handle Mounting

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 684150

Handle Knuckle and Extrusion
(Superseded to 684695)

Note: Important Note: Replacement parts may not always be available in matching colors.

$248.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 613401

Screw

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

41

Lawn-Boy 613406

Nut

Note: Important Note: Replacement parts may not always be available in matching colors. NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

42

Lawn-Boy 613552

Handle Insert-Cable Side
(Superseded to 614518)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 613619

Handle Insert

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available
