M 2255 FC (7800463) - Murray 22" Walk-Behind Mower, Canada (2009) Handles & Controls - Push Parts Diagram

22" Walk-Behind Mower, Canada

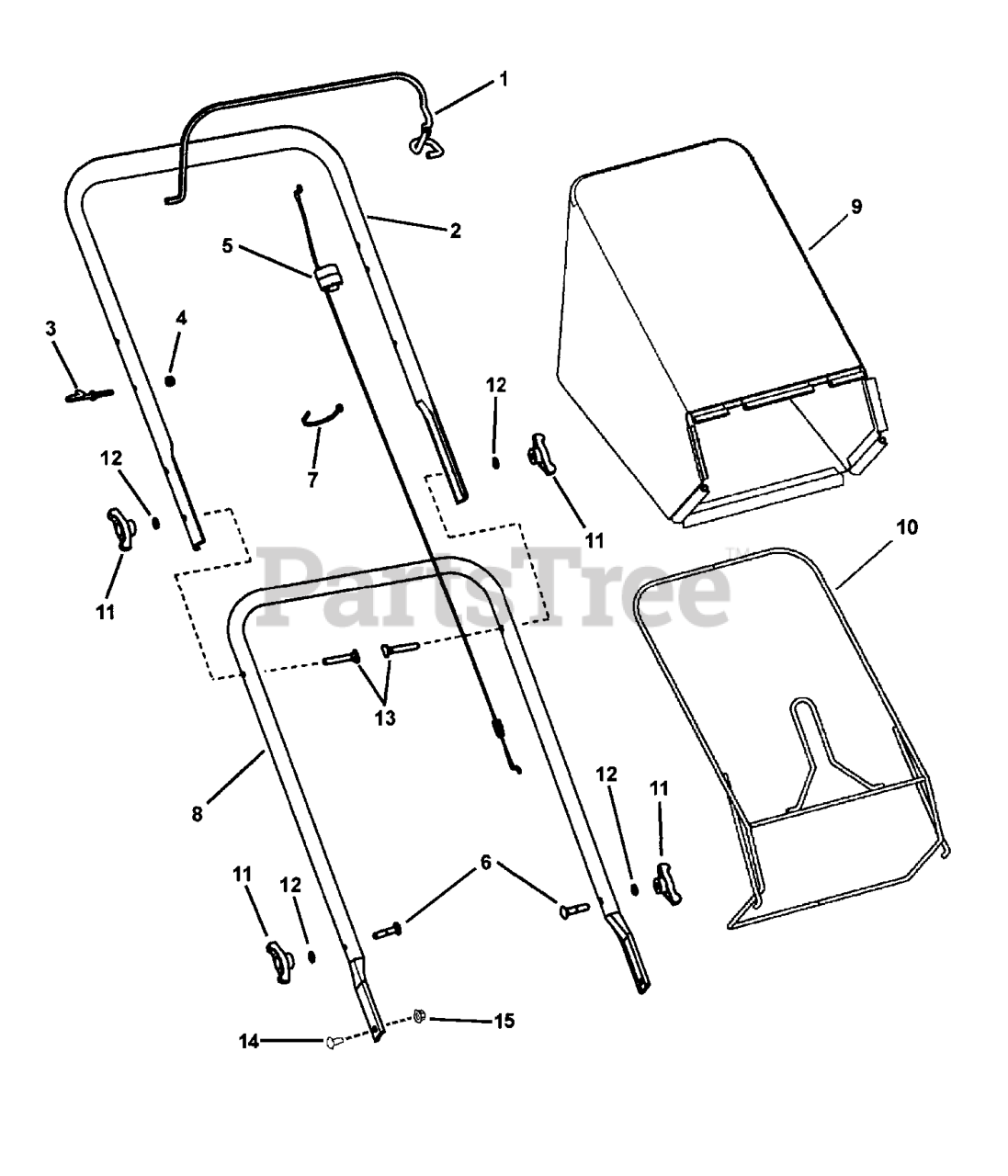

Handles & Controls - Push Parts Diagram

  • Title

1

Murray 7101675AYP

BAIL, OPC Push

$46.99

$

Usually ships in 2-12 days

0

2

Murray 7300705AMA

HANDLE, Upper

$51.99

$

Usually ships in 2-12 days

0

3

Murray 071530MA

GUIDE, Rope - 1/4-20 thread

$5.99

$

Usually ships in 2-12 days

0

4

Murray 7076978SM

NUT, 1/4-20 Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

5

Murray 7101330YP

CABLE, Bail, 22" WBM, - 41-1/2

$16.99

$

Usually ships in 2-12 days

0

6

Murray 7091714YP

BOLT, Carriage, 5/16-18 x 1, GR 5
(Superseded to 703483)

$3.99

$

In Stock, only 3 left!

0

7

Murray 7024649YP

WIRE TIE, 11 Inch Std Black Nylon

$5.49

$

Usually ships in 2-12 days

0

8

Murray 7301013AYP

HANDLE, Lower

$143.99

$

Usually ships in 2-12 days

0

9

Murray 7102573YP

BAG, Cloth, Grass Bag

$128.99

$

Usually ships in 2-12 days

0

10

Murray 7101230AYP

FRAME, Grass Bag

$222.99

$

Usually ships in 2-12 days

0

11

Murray 071294MA

KNOB, Wing, 5/16-18
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

12

Murray 7090391SM

WASHER, Internal Tooth Lock, 5/16
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

13

Murray 7091189YP

BOLT, Carriage, 5/16-18 x 2, GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 14

0

14

Murray 340720MA

BOLT, Carriage 5/16-18 x .75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

15

Murray 7090951SM

NUT, Hex Flange, Center Lock, 5/16-18
(Superseded to 704001)

$4.49

$

In Stock, Qty 19

0
