M 22550 FC (7800890) - Murray 22" Walk-Behind Mower, Canada (2012) Deck Group (7503007) Parts Diagram

22" Walk-Behind Mower, Canada

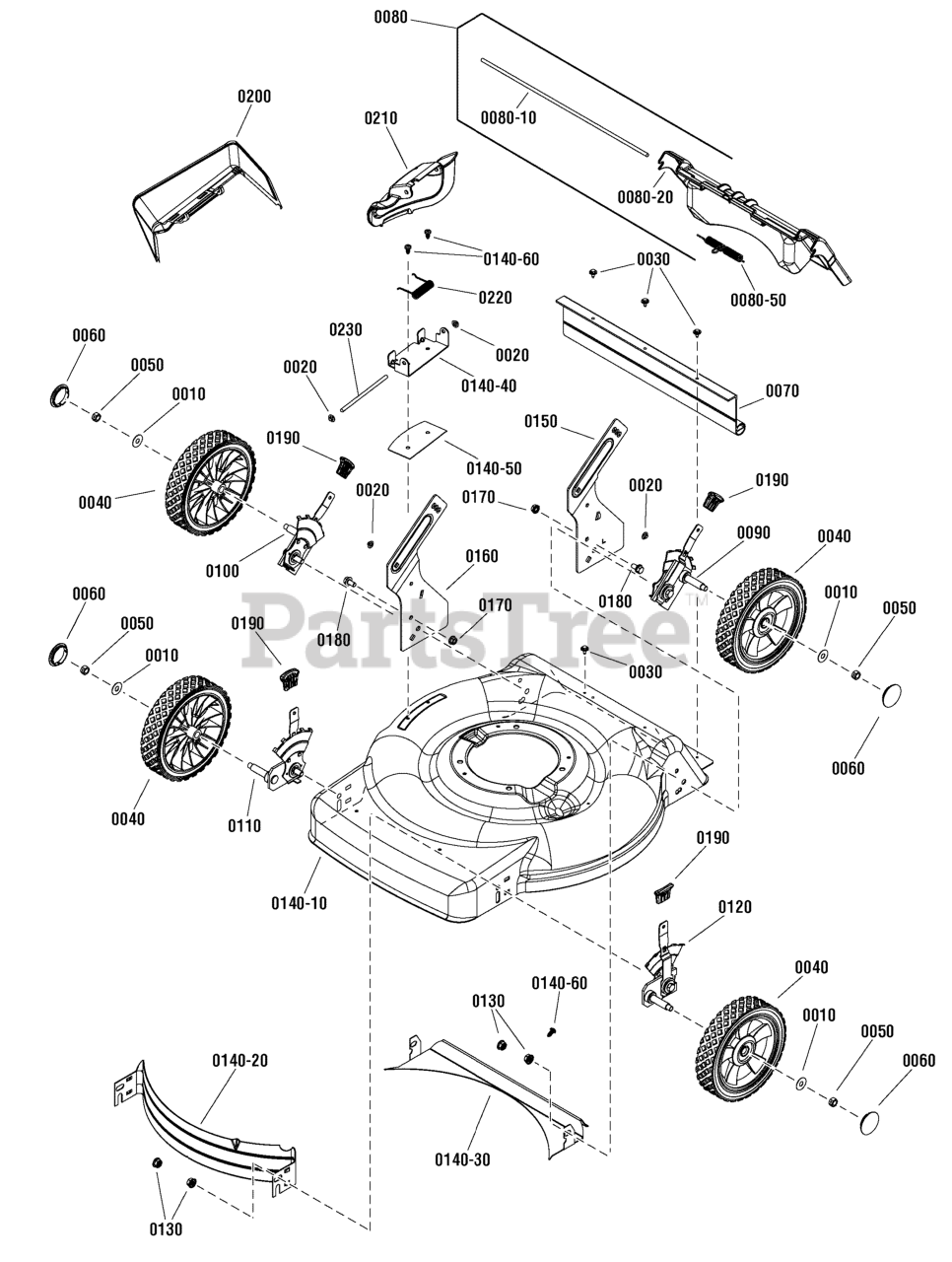

Deck Group (7503007) Parts Diagram

  • Title

0010

Murray 17X169MA

WASHER, Flat, 3/8
(Superseded to 703966)

$4.49

$

In Stock, only 4 left!

0

0020

Murray 7091020YP

NUT, Push, 1/4
(Superseded to 704005)

$4.49

$

In Stock, Qty 6

0

0030

Murray 7091286YP

SCREW, Self Tap, SEMS, 10-24 x 1/2

$4.99

$

In Stock, Qty 12

0

0040

Murray 7502378YP

WHEEL, 8 x 2 Diamond-Pewter

$37.99

$

Usually ships in 2-12 days

0

0050

Murray 7091585SM

NUT, Hex Center Lock, 3/8-16, GR 5
(Superseded to 703347)

$4.99

$

In Stock, only 4 left!

0

0060

Murray 1751539YP

HUBCAP, P290-Black

$4.99

$

Usually ships in 2-12 days

0

0070

Murray 7103347YP

GUARD, Rear, 22" Deck Mower

$

$

Not available

0080

Murray 7500416YP

DOOR ASSEMBLY

$79.99

$

Usually ships in 2-12 days

0

0080-10

Murray 7101070YP

ROD, Pivot, Rear Door

$6.99

$

Usually ships in 2-12 days

0

0080-20

Murray 7101243YP

DOOR, Rear Discharge, 22" Walk Mower

$54.99

$

Usually ships in 2-12 days

0

0080-50

Murray 7101461YP

SPRING, Torsion, Rear Door, 22" Walk Mower

$6.99

$

Usually ships in 2-12 days

0

0090

Murray 7501055YP

ASSEMBLY, Height-Of-Cut, 22", 7 Position, Left Rear

$

$

Not available

0100

Murray 7501056YP

ASSEMBLY, Height-Of-Cut, 22", 7 Position, Right Rear

$27.99

$

Usually ships in 2-12 days

0

0110

Murray 7501293YP

ASSEMBLY, Height-of-Cut, 22" WBM, Right Front

$40.99

$

Usually ships in 2-12 days

0

0120

Murray 7501294YP

ASSEMBLY, Height-of-Cut, 22" WBM, Left Front

$

$

Not available

0130

Murray 7900053MA

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

$4.99

$

In Stock, Qty 5

0

0140

DECK, 22" Walk Mower

$

$

Not available

0140-10

Murray 7300401BIYP

DECK, 22" Walk, Push

$229.99

$

Usually ships in 2-12 days

0

0140-20

Murray 7300440BIYP

BAFFLE, Front, 22" WBM

$141.99

$

Usually ships in 2-12 days

0

0140-30

Murray 7300854BIYP

BAFFLE, Rear, 22" Deck

$

$

Not available

0140-40

Murray 7300855BIYP

BRACKET, Chute

$9.99

$

Usually ships in 2-12 days

0

0140-50

Murray 7300856BIYP

PLATE, Mulch

$5.99

$

Usually ships in 2-12 days

0

0140-60

Murray 7900067YP

SCREW, Pan Head, Self Tap, Torx, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 16

0

0150

Murray 7300668AYP

BRACKET, Lower Handle, Left

$32.99

$

Usually ships in 2-12 days

0

0160

Murray 7300669AYP

BRACKET, Lower Handle, Right

$32.99

$

In Stock, only 1 left!

0

0170

Murray 7090585MA

NUT, Hex Flange Lock, 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

0180

Murray 7090606SM

BOLT, Hex Flange, 5/16-18 x 5/8
(Superseded to 703823)

$3.99

$

In Stock, only 2 left!

0

0190

Murray 7103793YP

GRIP, Height Latch, Black

$4.49

$

In Stock, Qty 20+

0

0200

Murray 1101097MA

SIDE CHUTE, Plastic, Black

$40.99

$

In Stock, only 2 left!

0

0210

Murray 1101098MA

COVER, Mulch, Plastic, Black

$35.99

$

In Stock, only 1 left!

0

0220

Murray 166X38MA

SPRING, Torsion, Chute

$5.49

$

In Stock, only 1 left!

0

0230

Murray 7101067YP

ROD, Pivot

$7.49

$

Usually ships in 2-12 days

0
