M 230 - Shindaiwa Multi-Tool Powerhead Fuel Tank Parts Diagram

Multi-Tool Powerhead

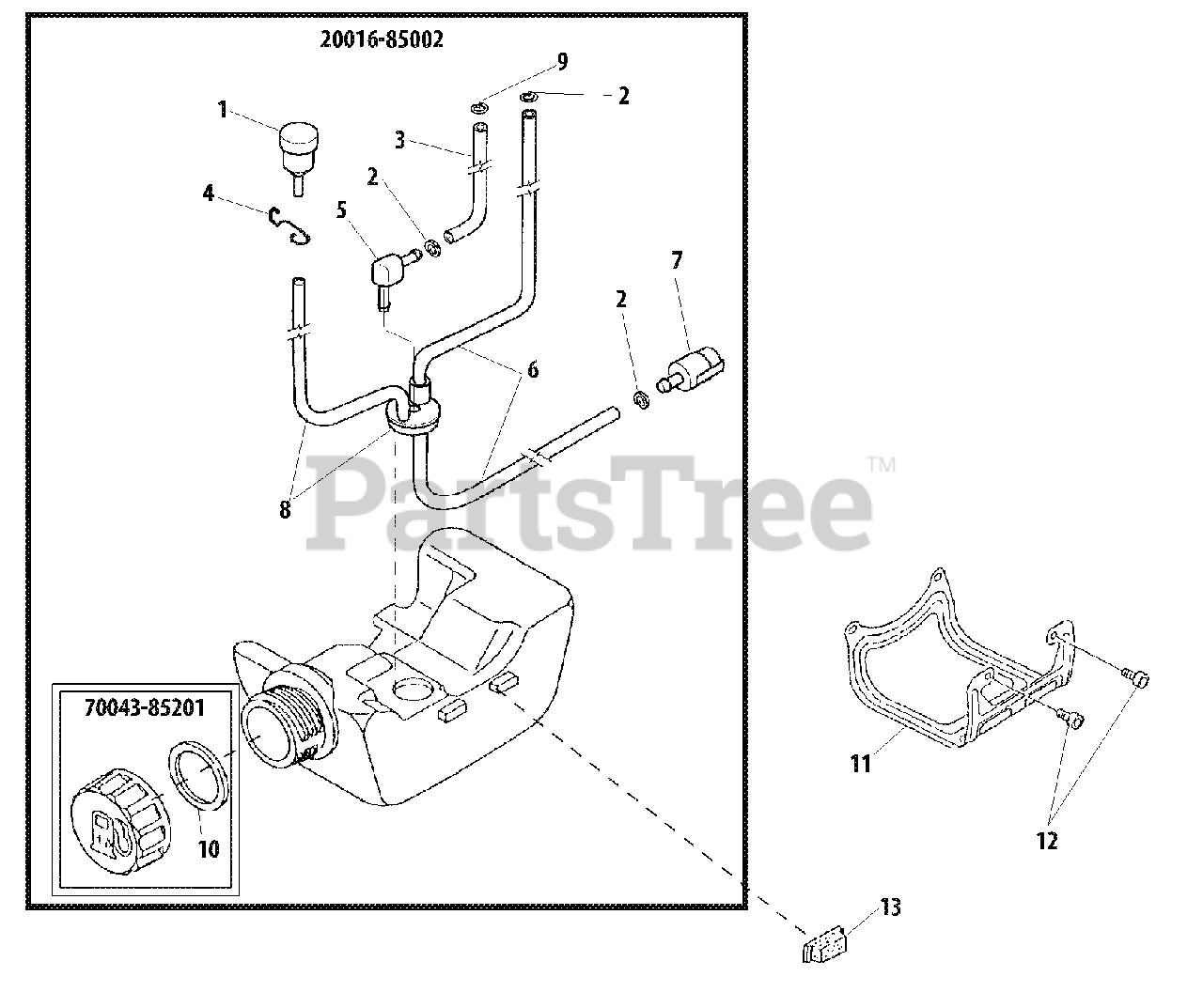

Fuel Tank Parts Diagram

  • Title

Echo 20016-85003

TANK ASSY, FUEL
(Superseded to A038000430)

$55.99

$

In Stock, Qty 5

0

1

Echo 20035-85522

VENT ASSY
(Superseded to A356000040)

$7.49

$

In Stock, Qty 20+

0

2

Echo 20020-85540

CLIP Ø6
(Superseded to V490000500)

$1.49

$

In Stock, Qty 8

0

3

Echo 20089-83311

PIPE, FUEL RETURN
(Superseded to V471002790)

$1.99

$

In Stock, Qty 17

0

4

Echo 20016-12310

CLIP, VENT ASSY
(Superseded to A358000040)

$1.49

$

In Stock, only 4 left!

0

5

Echo 20087-85340

CONNECTOR, PIPE
(Superseded to V186000270)

$3.49

$

In Stock, only 3 left!

0

6

Echo 70064-85311

PIPE, FUEL
(Superseded to 20016-85310)

$4.99

$

In Stock, Qty 13

0

7

Echo 20016-85400

FILTER, FUEL 125-528
(Superseded to A369000070)

$9.99

$

In Stock, Qty 20+

0

8

Echo 20089-85350

GROMMET
(Superseded to V470001140)

$6.49

$

In Stock, Qty 12

0

9

Echo 37013-85310

CLIP, SPRING Ø5.2
(Superseded to V490000510)

$1.49

$

In Stock, Qty 6

0

70043-85201

Echo 70043-85201

CAP ASSY, FUEL
(Superseded to A033000070)

$4.99

$

In Stock, Qty 11

0

10

Echo 20000-85221

GASKET, FUEL CAP
(Superseded to V107000010)

$1.99

$

In Stock, Qty 18

0

11

Echo 70135-86130

GUARD, METAL FUEL TANK
(Superseded to 62902-85320)

$14.99

$

In Stock, only 2 left!

0

12

Echo 11022-05120

BOLT M5×12
(Superseded to V203000700)

$1.49

$

In Stock, Qty 20+

0

13

Echo 20024-86120

CUSHION, FUEL TANK
(Superseded to V420002630)

$1.99

$

In Stock, Qty 11

0

20016-85002

Echo 20016-85002

FUEL TANK ASSY
(Superseded to 20016-85003)

$55.99

$

In Stock, Qty 5

0
