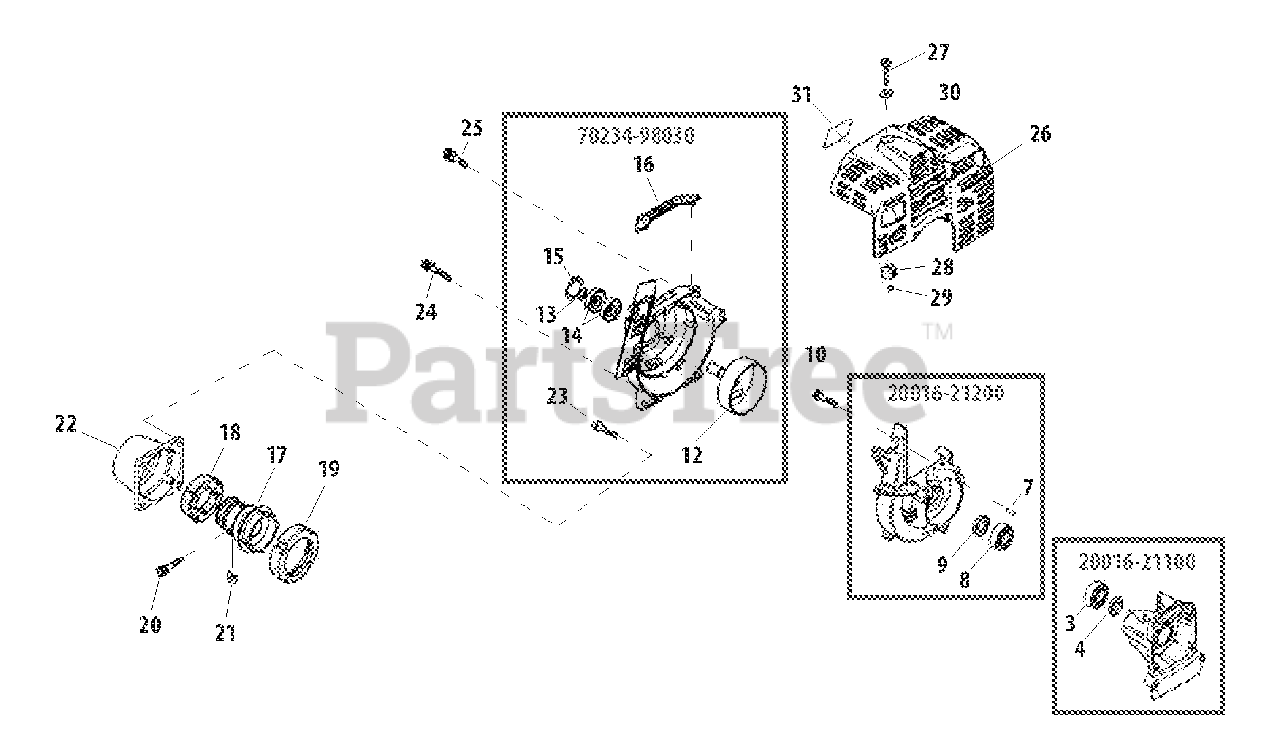

M 231 - Shindaiwa Multi-Tool Powerhead Crankcase, Fan Cover Parts Diagram

Multi-Tool Powerhead

Crankcase, Fan Cover Parts Diagram

  • Title

20016-21100

Echo 20016-21100

CRANKCASE ASSY - REAR
(Superseded to P021017910)

$41.99

$

Usually ships in 2-4 days

0

3

Echo 12900-60010

BEARING, BALL - 6001C3
(Superseded to V592000310)

$6.49

$

In Stock, Qty 13

0

4

Echo 22150-21250

SEAL, OIL
(Superseded to V505000140)

$3.49

$

In Stock, Qty 20+

0

20016-21200

Echo 20016-21200

CRANKCASE ASSY - FRONT
(Superseded to P021017920)

$47.99

$

Usually ships in 2-4 days

0

7

Echo 12492-40080

PIN - LOCATING
(Superseded to V622000040)

$1.49

$

In Stock, Qty 16

0

8

Echo 12900-60010

BEARING, BALL - 6001C3
(Superseded to V592000310)

$6.49

$

In Stock, Qty 13

0

9

Echo 20000-21211

SEAL, OIL - 12
(Superseded to V505000080)

$3.49

$

In Stock, Qty 20+

0

10

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 5

0

70234-98030

Echo 70234-98030

FAN CASE ASSY
(Superseded to P021030520)

$62.99

$

In Stock, only 1 left!

0

12

Echo 20087-31210

DRUM, CLUTCH
(Superseded to 20087-31211)

$23.99

$

In Stock, only 2 left!

0

13

Echo 22000-13320

RING, RETAINING
(Superseded to V583000160)

$1.49

$

In Stock, Qty 20+

0

14

Echo 02002-06000

BEARING, BALL - 6000
(Superseded to 90080406000)

$10.99

$

In Stock, Qty 9

0

15

Echo 02432-26120

RING, RETAINING - 26
(Superseded to 9242426000)

$1.49

$

In Stock, Qty 5

0

16

Echo 70140-31130

CUSHION
(Superseded to V420002620)

$2.49

$

Usually ships in 2-4 days

0

23

Echo 11022-05160

SCREW - 5X16
(Superseded to V203000590)

Note: Package of (4) 11022-05160 bolts included in 70234-98030 Fan Cover Assy.

$1.49

$

In Stock, only 4 left!

0

17

Echo 20018-31410

CLAMP, MAIN PIPE
(Superseded to 20018-31411)

$21.99

$

In Stock, only 2 left!

0

18

Echo 20018-31420

CUSHION - FRONT
(Superseded to V420002640)

$3.99

$

Usually ships in 2-4 days

0

19

Echo 20018-31430

CUSHION - REAR
(Superseded to V420002650)

$4.99

$

In Stock, only 2 left!

0

20

Echo 11023-05250

SCREW - 5X25
(Superseded to V203000560)

$1.99

$

In Stock, only 3 left!

0

21

Echo 20018-31460

SHIM
(Superseded to V340000240)

$

$

Not available

22

Echo 70135-31470

CAP
(Superseded to A575000460)

$8.99

$

Usually ships in 2-4 days

0

24

Echo 11022-05350

SCREW - 5X35
(Superseded to V203000600)

$1.49

$

In Stock, Qty 20+

0

25

Echo 11022-05160

SCREW - 5X16
(Superseded to V203000590)

$1.49

$

In Stock, only 4 left!

0

26

Echo 62023-32110

COVER, ENGINE - RED
(Superseded to A160001390)

$24.99

$

Usually ships in 2-4 days

0

27

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 5

0

28

Echo 20018-31260

INSULATOR
(Superseded to V353000430)

$1.99

$

In Stock, only 4 left!

0

29

Echo 20018-31270

CLIP
(Superseded to V490000680)

$1.49

$

In Stock, only 4 left!

0

30

Echo 01613-05080

WASHER - 5
(Superseded to 90060300005)

$0.99

$

In Stock, Qty 20+

0

31

Echo 65004-91020

LABEL - MODEL

$2.99

$

Usually ships in 2-4 days

0
