M 235 - Shindaiwa Multi-Tool Powerhead (SN: V04613001001 - V04613999999) CARBURETOR - GL-3A Parts Diagram

Multi-Tool Powerhead

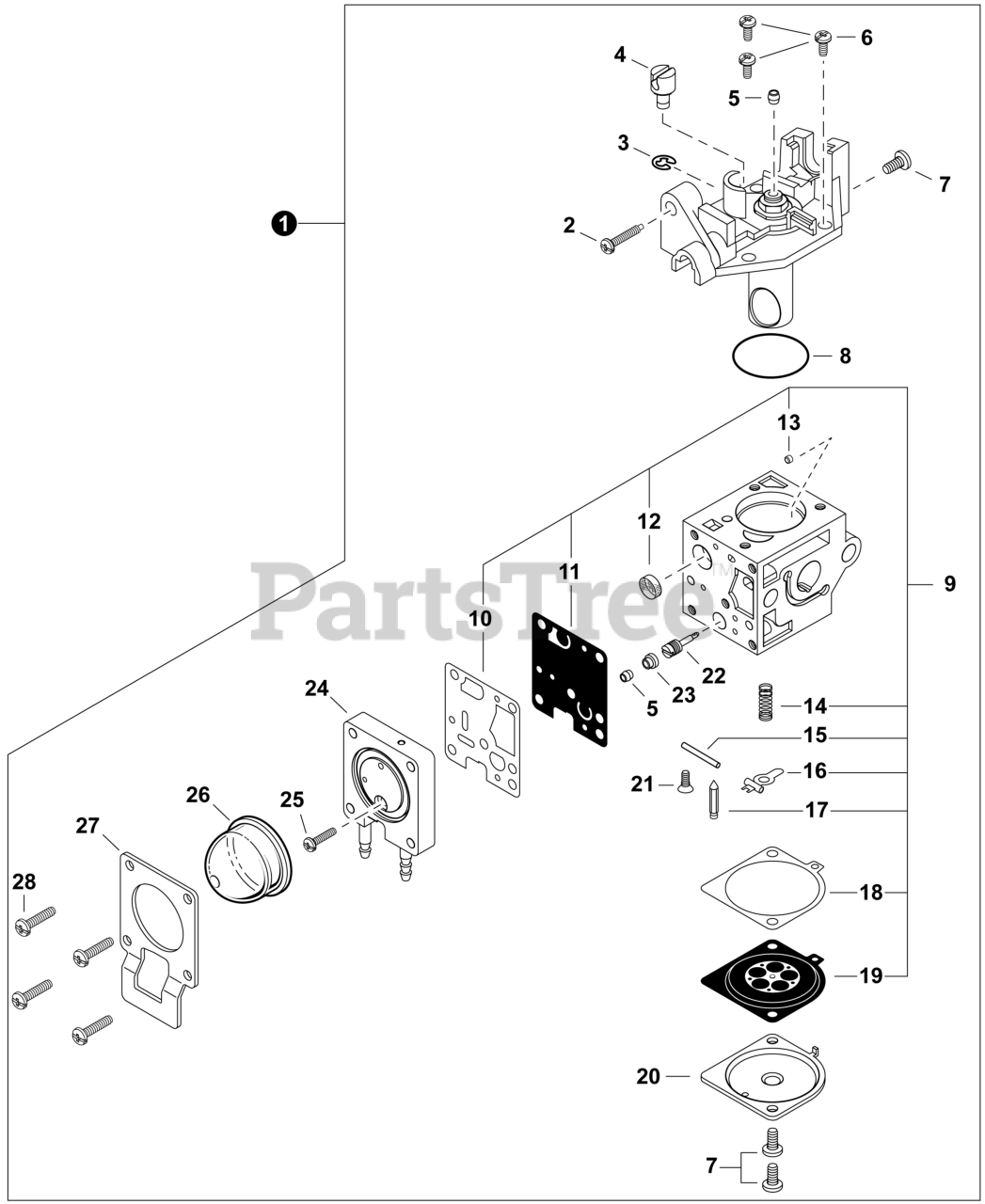

CARBURETOR - GL-3A Parts Diagram

  • Title

1

Echo A021004801

CARBURETOR - GL-3A

Note: Includes Items 2-28

$70.99

$

In Stock, Qty 6

0

2

Echo A941000010

SCREW, THROTTLE ADJUST

Note: +

$4.99

$

Usually ships in 2-4 days

0

3

Echo A928000000

E-RING

Note: +

$2.99

$

Usually ships in 2-4 days

0

4

Echo A927000010

SWIVEL

Note: +

$3.99

$

Usually ships in 2-4 days

0

5

Echo A259000060

PLUG
(Superseded to P006000220)

Note: +

$

$

Not available

6

Echo A913000060

SCREW

Note: +

$2.49

$

Usually ships in 2-4 days

0

7

Echo A913000090

SCREW

Note: +

$2.49

$

Usually ships in 2-4 days

0

8

Echo A937000000

O-RING

Note: +

$3.49

$

Usually ships in 2-4 days

0

9

Echo P021052570

REPAIR KIT, CARBURETOR

Note: Includes Items 10-19+

$19.99

$

In Stock, only 3 left!

0

10

--

GASKET, PUMP

Note: ++

$

$

Not available

11

--

DIAPHRAGM, PUMP

Note: ++

$

$

Not available

12

--

SCREEN, FUEL INLET

Note: ++

$

$

Not available

13

--

GUIDE, ROLLER

Note: ++

$

$

Not available

14

--

SPRING, METERING LEVER

Note: ++

$

$

Not available

15

--

PIN, METERING LEVER

Note: ++

$

$

Not available

16

--

LEVER, METERING

Note: ++

$

$

Not available

17

--

VALVE, INLET NEEDLE

Note: ++

$

$

Not available

18

--

GASKET, METERING DIAPHRAGM

Note: ++

$

$

Not available

19

--

DIAPHRAGM, METERING

Note: ++

$

$

Not available

20

Echo A936000010

COVER, METERING DIAPHRAGM

Note: +

$11.99

$

Usually ships in 2-4 days

0

21

Echo A913000050

SCREW

Note: +

$3.49

$

Usually ships in 2-4 days

0

22

Echo A939000010

NEEDLE, HIGH SPEED

Note: +

$5.49

$

Usually ships in 2-4 days

0

23

Echo A940000010

CAP, LIMITER

Note: +

$3.49

$

Usually ships in 2-4 days

0

24

Echo A944000020

BODY ASSY, PURGE

Note: +

$15.99

$

Usually ships in 2-4 days

0

25

Echo A913000070

SCREW

Note: +

$2.49

$

Usually ships in 2-4 days

0

26

Echo A914000010

BULB, PURGE

Note: +

$4.99

$

In Stock, Qty 8

0

27

Echo A915000000

RETAINER, PURGE BULB

Note: +

$2.49

$

Usually ships in 2-4 days

0

28

Echo A913000080

SCREW

Note: +

$2.99

$

Usually ships in 2-4 days

0
