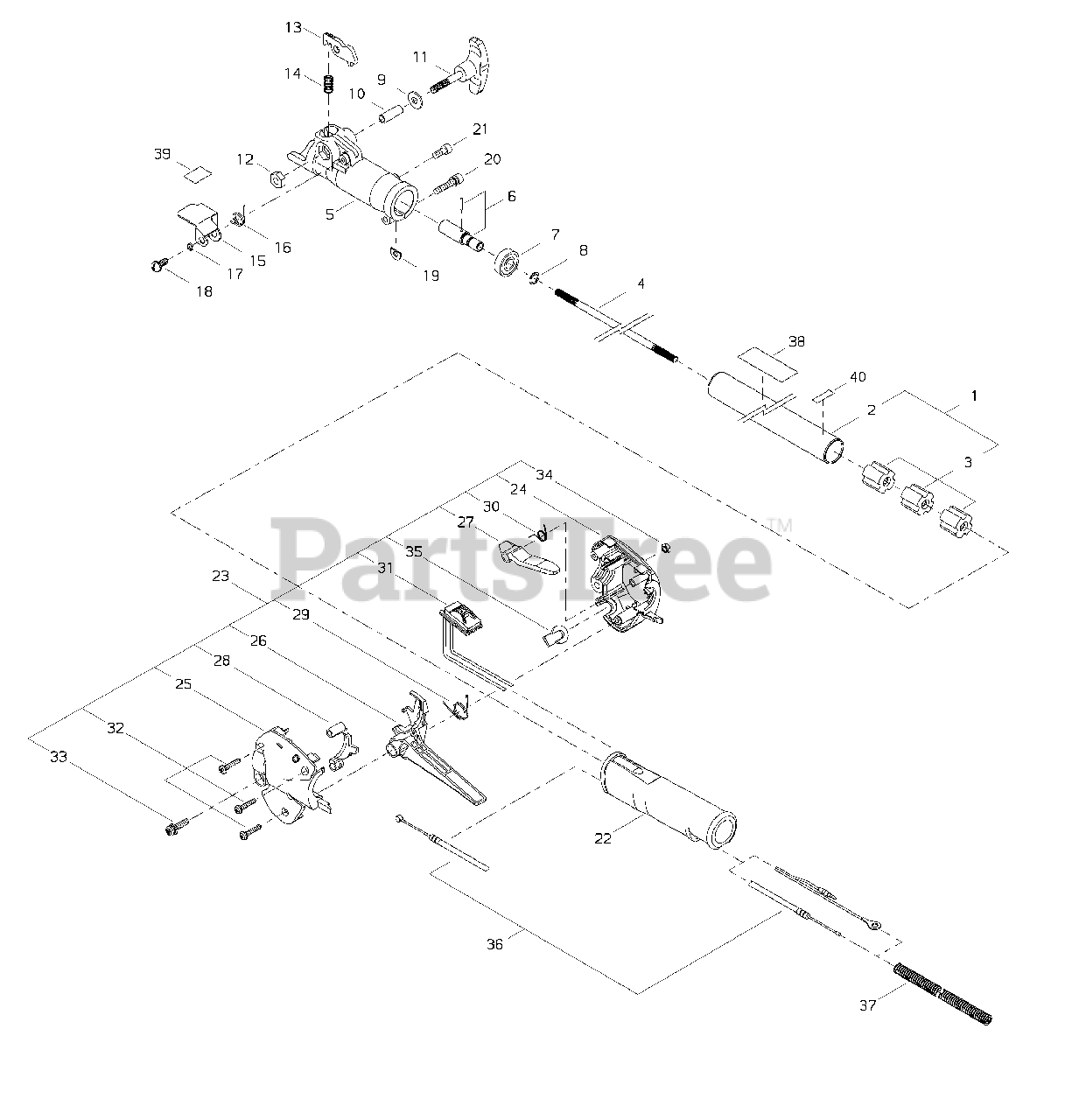

M 242 - Shindaiwa Multi-Tool Powerhead (Original Version) Coupler, Throttle Asy Parts Diagram

Multi-Tool Powerhead

Coupler, Throttle Asy Parts Diagram

  • Title

1

Echo 65005-62010

MAIN PIPE ASSY
(Superseded to C050001500)

Note: Includes ITEMS 2-3

$57.99

$

Usually ships in 2-4 days

0

2

Echo 63880-64320

PIPE, MAIN
(Superseded to C500000480)

$37.99

$

Usually ships in 2-4 days

0

3

Echo 22035-12121

BUSHING
(Superseded to C501000010)

$4.49

$

In Stock, Qty 6

0

4

Echo 63880-64340

PIPE, MAIN
(Superseded to C504000550)

$20.99

$

In Stock, only 3 left!

0

5

Echo 37000-62220

COUPLER
(Superseded to C510000200)

$35.99

$

Usually ships in 2-4 days

0

6

Echo 63880-64360

CONNECTOR, SHAFT
(Superseded to P021028880)

$34.99

$

In Stock, only 3 left!

0

7

Echo 02002-00609

BEARING, BALL - 609ZZ
(Superseded to 90080400609)

$16.99

$

In Stock, only 4 left!

0

8

Echo 22420-13350

RING, RETAINING
(Superseded to V582000130)

$1.49

$

In Stock, Qty 17

0

9

Echo 72030-14130

WASHER
(Superseded to V304000160)

$1.49

$

In Stock, Qty 12

0

10

Echo 1790106220

COLLAR
(Superseded to V354000260)

$1.49

$

In Stock, only 3 left!

0

11

Echo 63880-64380

KNOB
(Superseded to V299000350)

$6.99

$

In Stock, Qty 7

0

12

Echo 63880-64410

NUT
(Superseded to V264000120)

$1.49

$

In Stock, Qty 12

0

13

Echo 37000-62310

LEVER, LOCK
(Superseded to C661000050)

$15.99

$

In Stock, only 2 left!

0

14

Echo 1750006001

SPRING
(Superseded to V450000860)

$1.49

$

In Stock, Qty 7

0

15

Echo 37000-62340

COVER
(Superseded to C516000020)

$5.49

$

Usually ships in 2-4 days

0

16

Echo 17520-12400

SPRING
(Superseded to V452000510)

$1.49

$

In Stock, only 3 left!

0

17

Echo 15401-00004

COLLAR
(Superseded to V353000330)

$1.99

$

In Stock, only 1 left!

0

18

Echo 11207-05120

SCREW - 5X12
(Superseded to 9157705012)

$1.49

$

In Stock, only 4 left!

0

19

Echo 22000-13420

SHIM
(Superseded to V340000300)

$1.49

$

In Stock, Qty 6

0

20

Echo 11023-05250

SCREW - 5X25
(Superseded to V203000560)

$1.99

$

In Stock, Qty 5

0

21

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 15

0

22

Echo 63901-62142

GRIP - REAR
(Superseded to C412000260)

$11.99

$

In Stock, only 2 left!

0

23

Echo 63076-62021

THROTTLE ASSY
(Superseded to C044000350)

Note: Includes ITEMS 24-35

$55.99

$

In Stock, only 2 left!

0

24

Echo 63002-62320

HANDLE, CONTROL - RIGHT
(Superseded to C401000140)

$10.99

$

In Stock, only 1 left!

0

25

Echo 63002-62330

HANDLE, CONTROL - LEFT
(Superseded to C401000150)

$9.99

$

Usually ships in 2-4 days

0

26

Echo 63002-62340

TRIGGER, THROTTLE
(Superseded to C450000480)

$8.99

$

In Stock, Qty 18

0

27

Echo 63901-62352

LEVER, TRIGGER LOCKOUT
(Superseded to C460000190)

$4.99

$

Usually ships in 2-4 days

0

28

Echo 63002-62350

LOCKOUT, THROTTLE
(Superseded to C461000020)

$3.99

$

In Stock, only 2 left!

0

29

Echo 63880-65350

SPRING
(Superseded to V452000700)

$1.99

$

In Stock, Qty 8

0

30

Echo 63901-62370

SPRING
(Superseded to V452000500)

$1.99

$

In Stock, only 1 left!

0

31

Echo 63076-62311

SWITCH, IGNITION
(Superseded to A440001390)

$22.99

$

In Stock, Qty 6

0

32

Echo 63880-65360

SCREW - 4X20 -- TAPPING
(Superseded to V252000380)

$1.99

$

Usually ships in 2-4 days

0

33

Echo 11206-05201

SCREW - 5X20
(Superseded to 9157505020)

$1.49

$

In Stock, only 1 left!

0

34

Echo 01501-05030

NUT - 5
(Superseded to 9201705000)

$1.49

$

In Stock, Qty 12

0

35

Echo 63880-65411

PLUG
(Superseded to V162000350)

$1.99

$

In Stock, only 1 left!

0

36

Echo 37015-98010

CABLE, THROTTLE
(Superseded to V043000690)

$6.99

$

In Stock, only 2 left!

0

37

Echo 63901-62440

TUBE
(Superseded to V475006830)

$1.49

$

In Stock, only 2 left!

0

38

Echo 19402-00303

LABEL - CAUTION
(Superseded to X505003490)

$3.49

$

Usually ships in 2-4 days

0

39

Echo 19401-00168

LABEL - LATCH INSTRUCTION
(Superseded to X505002880)

$1.49

$

In Stock, Qty 9

0

40

Echo 19401-00269

LABEL - INSTRUCTION
(Superseded to X505002850)

$1.49

$

In Stock, only 2 left!

0
