M 242 - Shindaiwa Multi-Tool Powerhead (Original Version) Crankcase, Fan Cover Parts Diagram

Multi-Tool Powerhead

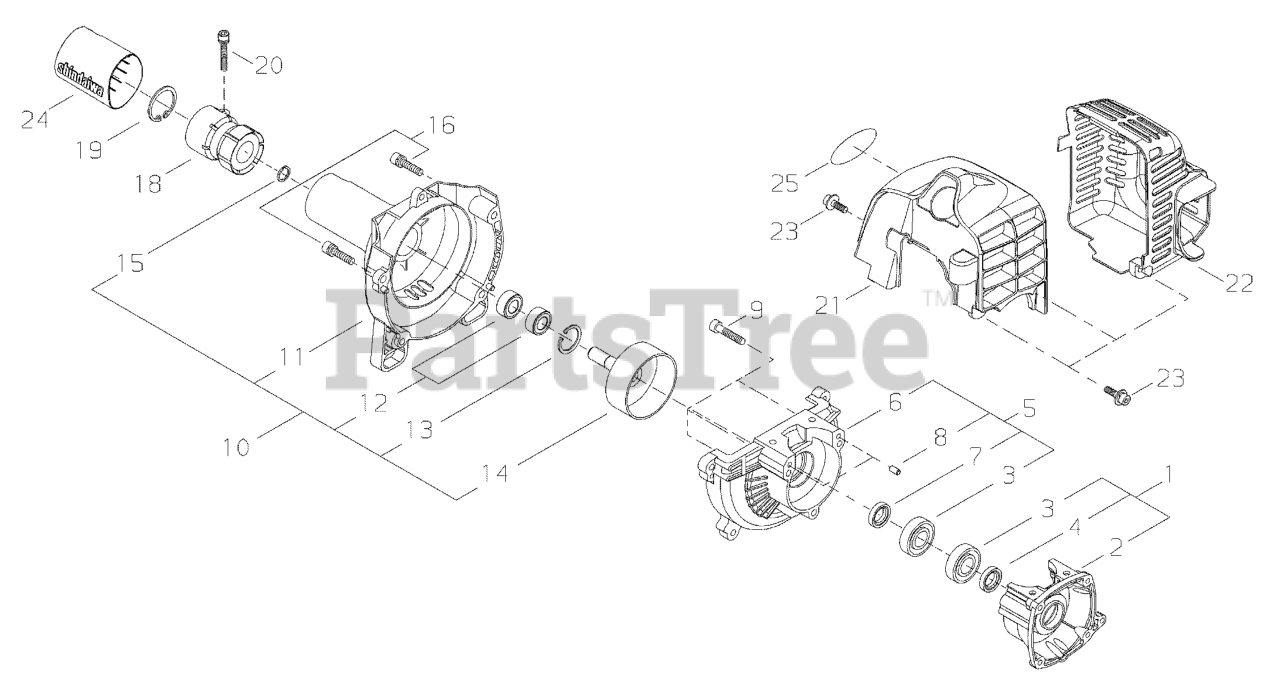

Crankcase, Fan Cover Parts Diagram

  • Title

1

Echo 62100-21010

CRANKCASE ASSY - REAR
(Superseded to P021028010)

Note: Includes ITEMS 2-4

$26.99

$

Usually ships in 2-4 days

0

2

Echo 62100-21111

CRANKCASE - REAR
(Superseded to A120000140)

$14.99

$

In Stock, only 2 left!

0

3

Echo 12900-60010

BEARING, BALL - 6001C3
(Superseded to V592000310)

$6.99

$

In Stock, Qty 9

0

4

Echo 37013-21120

SEAL, OIL - 12
(Superseded to V505000070)

$6.99

$

Usually ships in 2-4 days

0

5

Echo 62100-21020

CRANKCASE ASSY - FRONT
(Superseded to P021028020)

Note: Includes ITEMS 3, 6-8

$29.99

$

Usually ships in 2-4 days

0

6

Echo 62100-21211

CRANKCASE - FRONT
(Superseded to A120000130)

$18.99

$

Usually ships in 2-4 days

0

3

Echo 12900-60010

BEARING, BALL - 6001C3
(Superseded to V592000310)

$6.99

$

In Stock, Qty 9

0

7

Echo 20000-21211

SEAL, OIL - 12
(Superseded to V505000080)

$3.49

$

In Stock, only 2 left!

0

8

Echo 12492-40080

PIN - LOCATING
(Superseded to V622000040)

$1.49

$

In Stock, Qty 13

0

9

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 11

0

10

Echo 62100-31013

FAN CASE ASSY
(Superseded to P021028040)

Note: Includes ITEMS 11-15

$101.99

$

In Stock, Qty 7

0

11

Echo 62100-31111

CASE, FAN
(Superseded to A172001700)

$36.99

$

Usually ships in 2-4 days

0

12

Echo 37004-63310

BEARING, BALL - 6000
(Superseded to 02006-06000)

$16.99

$

In Stock, Qty 16

0

13

Echo 02432-26120

RING, RETAINING - 26
(Superseded to 9242426000)

$1.49

$

In Stock, Qty 5

0

14

Echo 20087-31210

DRUM, CLUTCH
(Superseded to 20087-31211)

$25.99

$

In Stock, only 2 left!

0

15

Echo 22000-13320

RING, RETAINING
(Superseded to V583000160)

$1.49

$

In Stock, Qty 20+

0

16

Echo 11022-05180

SCREW - 5X18
(Superseded to V203000540)

$1.49

$

In Stock, only 4 left!

0

18

Echo 20087-31411

CUSHION
(Superseded to A575000190)

$19.99

$

In Stock, only 2 left!

0

19

Echo 02432-40170

RING, RETAINING - 40
(Superseded to 9242440000)

$1.99

$

In Stock, only 4 left!

0

20

Echo 11020-05220

SCREW - 5X22
(Superseded to V203000620)

$0.99

$

Usually ships in 2-4 days

0

21

Echo 62100-32111

COVER, ENGINE
(Superseded to A160001290)

$39.99

$

In Stock, only 2 left!

0

22

Echo 62100-32311

COVER, EXHAUST
(Superseded to 62100-32312)

$10.99

$

Usually ships in 2-4 days

0

23

Echo 11024-04160

SCREW - 4X16
(Superseded to V202000300)

$1.49

$

In Stock, Qty 6

0

24

Echo 62100-31311

PROTECTOR
(Superseded to A413000000)

$1.99

$

In Stock, Qty 5

0

25

Echo 62100-91320

LABEL - MODEL 242

$2.49

$

Usually ships in 2-4 days

0
