M 242 - Shindaiwa Multi-Tool Powerhead (SN: T17313001001 - T17313999999) COUPLER Parts Diagram

Multi-Tool Powerhead

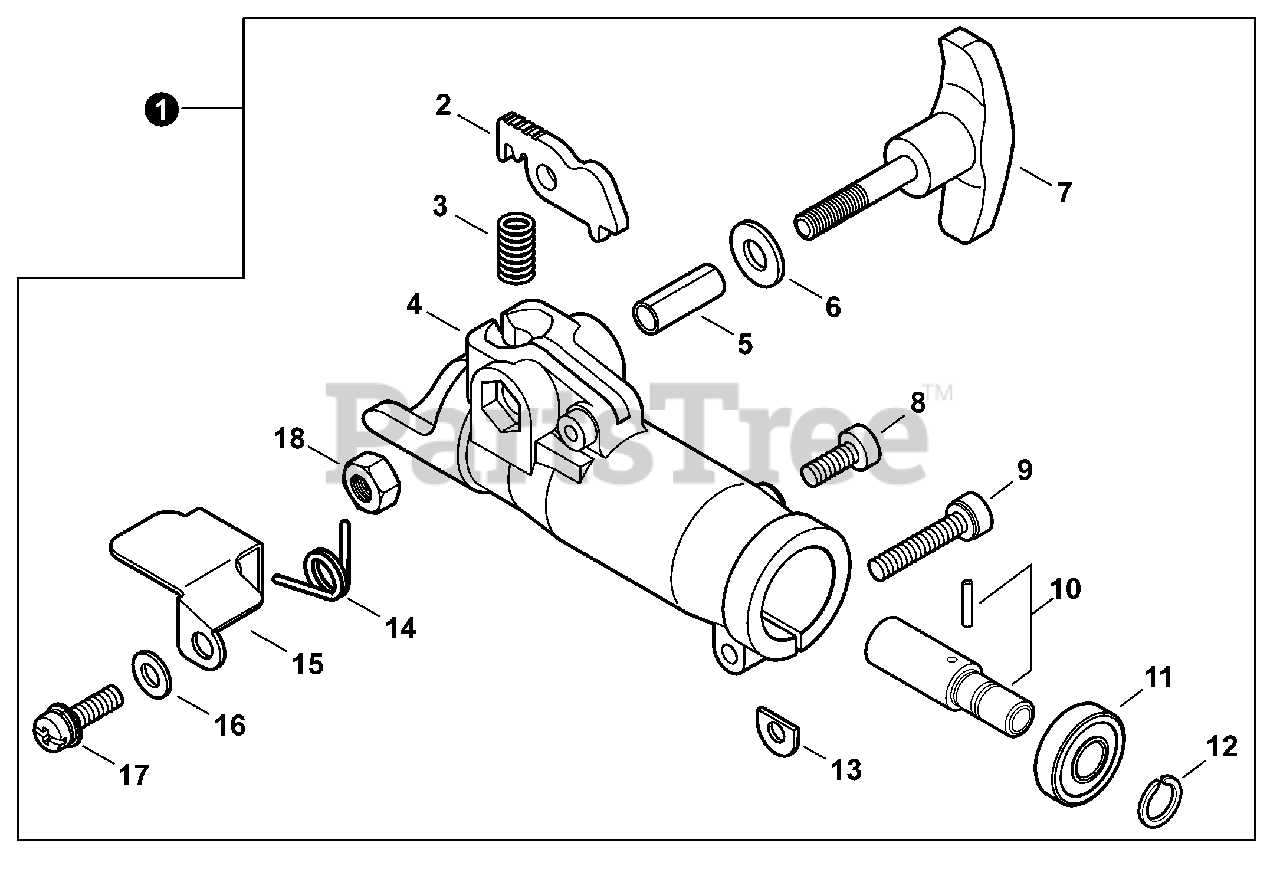

COUPLER Parts Diagram

  • Title

1

Echo P021028870

COUPLER ASSY

Note: Includes ITEMS 2-18

$115.99

$

Usually ships in 2-4 days

0

2

Echo C661000050

LATCH

$13.99

$

Usually ships in 2-4 days

0

3

Echo V450000860

SPRING, COIL

$0.99

$

In Stock, only 2 left!

0

4

Echo C510000200

HOUSING, COUPLER

$31.99

$

Usually ships in 2-4 days

0

5

Echo V354000260

SLEEVE, KNOB 6×L= 22

$0.99

$

In Stock, Qty 5

0

6

Echo V304000160

WASHER 6

$0.99

$

In Stock, Qty 5

0

7

Echo V299000350

KNOB, COUPLER SCREW

$6.49

$

In Stock, only 3 left!

0

8

Echo 90010505012

BOLT 5×12

$1.49

$

In Stock, Qty 20+

0

9

Echo V203000560

BOLT M5×25

$1.99

$

In Stock, Qty 8

0

10

Echo P021028880

SHAFT, COUPLER

$31.99

$

In Stock, only 1 left!

0

11

Echo 90080400609

BEARING, BALL 609ZZ

$15.99

$

In Stock, Qty 6

0

12

Echo 90070600009

RING, SNAP Ø9

$1.49

$

In Stock, Qty 17

0

13

Echo V340000300

D-WASHER

$0.99

$

In Stock, Qty 10

0

14

Echo V452000510

SPRING, TORSION

$0.99

$

In Stock, Qty 5

0

15

Echo C516000020

PROTECTOR, LATCH

$4.99

$

Usually ships in 2-4 days

0

16

Echo V353000330

WASHER 5

$1.99

$

In Stock, only 2 left!

0

17

Echo 9157705012

SCREW M5×12

$0.99

$

In Stock, Qty 5

0

18

Echo V264000120

NUT 6

$0.99

$

In Stock, Qty 5

0
