M 2500 - Shindaiwa Multi-Tool Powerhead Cylinder Block, Muffler, Reed Valve Parts Diagram

Multi-Tool Powerhead

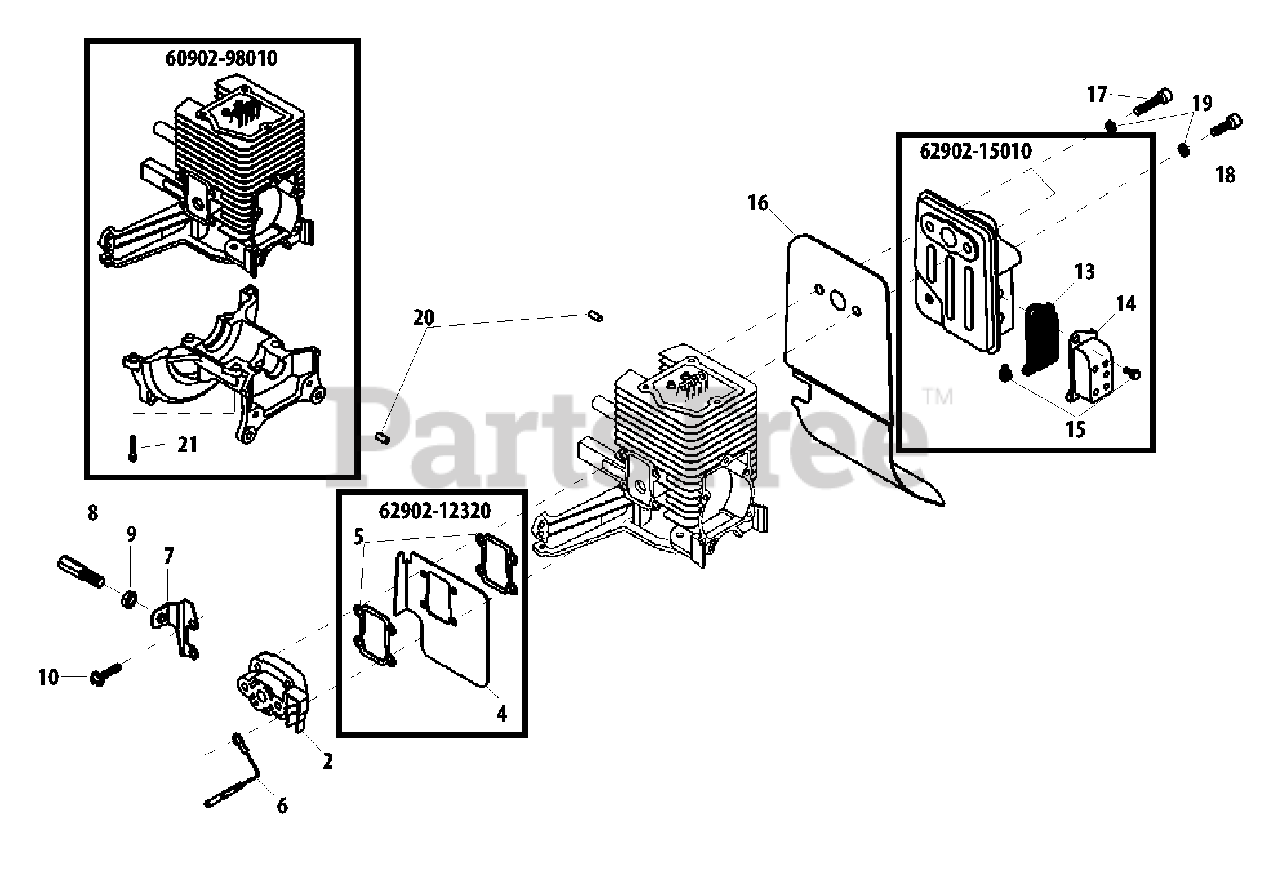

Cylinder Block, Muffler, Reed Valve Parts Diagram

  • Title

60902-98010

Echo 60902-98010

CYLINDER BLOCK SET
(Superseded to 60902-98011)

$

$

Not available

21

Echo 01020-05160

SCREW - 5X16
(Superseded to 90010505016)

$1.49

$

In Stock, Qty 10

0

2

Echo 62902-12310

INSULATOR
(Superseded to A024000050)

$43.99

$

Usually ships in 2-4 days

0

62902-12320

Echo 62902-12320

HEAT DEFLECTOR ASSY
(Superseded to A209000250)

$5.99

$

In Stock, only 1 left!

0

4

Echo 62901-12320

DEFLECTOR, HEAT
(Superseded to A209000260)

$5.49

$

Usually ships in 2-4 days

0

5

Echo 62901-12220

SHIELD, INTAKE
(Superseded to V103001130)

$1.49

$

In Stock, Qty 5

0

6

Echo 14350-01101

LEAD - GROUND
(Superseded to V485001260)

$3.49

$

Usually ships in 2-4 days

0

7

Echo 62901-83310

BRACKET, THROTTLE CABLE

$2.99

$

Usually ships in 2-4 days

0

8

Echo 62902-83310

NUT, CABLE ADJUST
(Superseded to C486000030)

$16.99

$

In Stock, only 1 left!

0

9

Echo 01501-06048

LOCKNUT - 6
(Superseded to 9201806000)

$0.99

$

Usually ships in 2-4 days

0

10

Echo 11206-05220

SCREW - 5X22

$

$

Not available

62902-15010

Echo 62902-15010

MUFFLER ASSY

$72.99

$

In Stock, only 1 left!

0

13

Echo 62902-15130

SCREEN, SPARK ARRESTOR
(Superseded to A310000390)

$3.49

$

Usually ships in 2-4 days

0

14

Echo 62902-15160

GUIDE, EXHAUST
(Superseded to 62902-15161)

$5.99

$

Usually ships in 2-4 days

0

15

Echo 11204-04060

SCREW - 4X6
(Superseded to 9157204006)

$0.99

$

Usually ships in 2-4 days

0

16

Echo 62901-15210

SHIELD, EXHAUST
(Superseded to V104001431)

$8.99

$

Usually ships in 2-4 days

0

17

Echo 62901-15310

SCREW - 5X25
(Superseded to V203001000)

$1.99

$

Usually ships in 2-4 days

0

18

Echo 01020-05160

SCREW - 5X16
(Superseded to 90010505016)

$1.49

$

In Stock, Qty 10

0

19

Echo 01610-05080

WASHER - 5
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

20

Echo 12492-40080

PIN - LOCATING
(Superseded to V622000040)

$0.99

$

In Stock, Qty 20+

0
