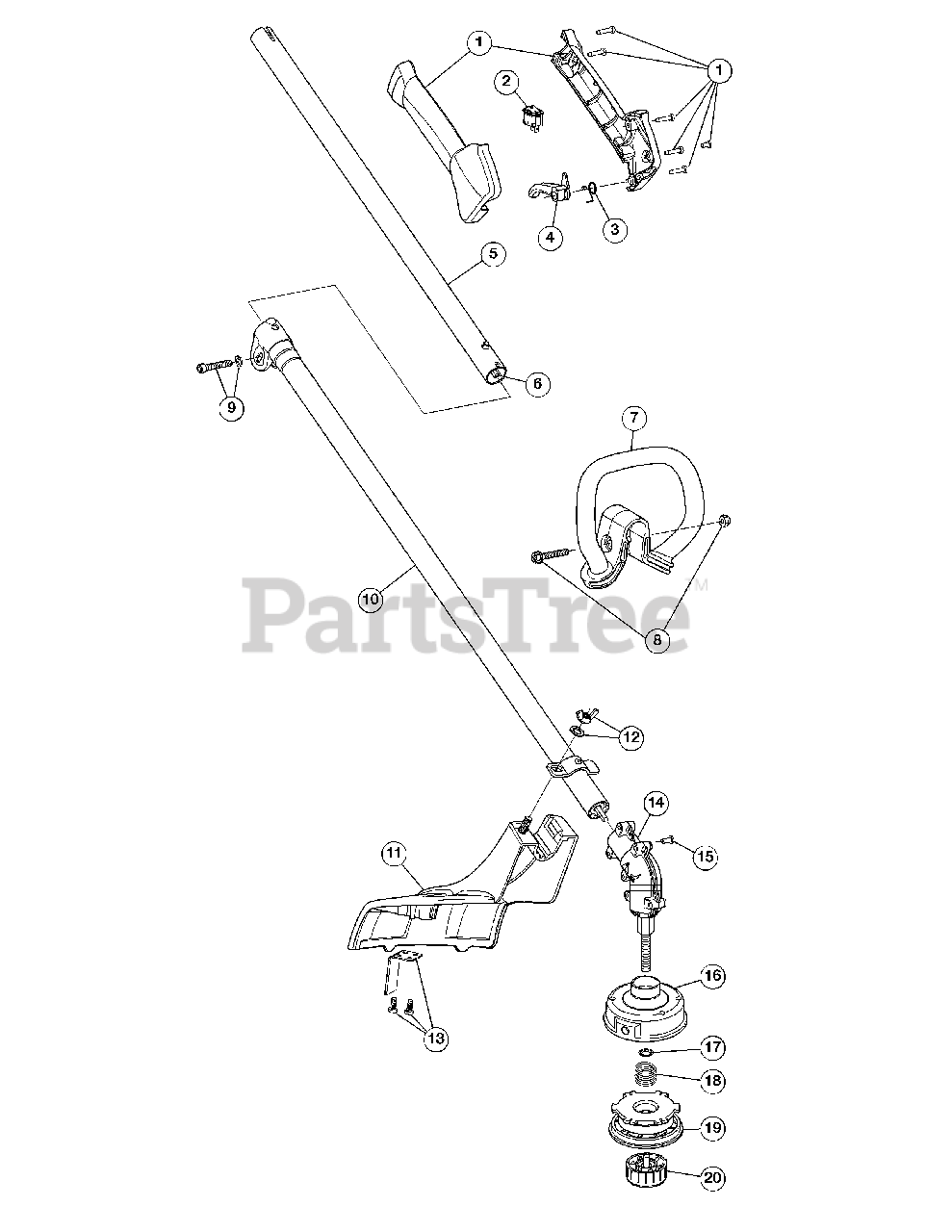

M 2510 (41BDZ03C758) - Murray String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly (Incl. 2 - 4)

$21.99

$

In Stock, Qty 18

0

2

MTD 791-182405

Throttle Switch Assembly

$10.99

$

In Stock, Qty 20+

0

3

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, Qty 14

0

4

MTD 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 20+

0

5

MTD 753-06217

Upper Shaft Housing Assembly (Incl. 6)

$14.99

$

In Stock, only 1 left!

0

6

MTD 753-06216

Upper Flexible Drive Shaft

$7.49

$

In Stock, Qty 9

0

7

MTD 753-08042

D-Handle (Incl. 8)

$4.99

$

In Stock, Qty 5

0

8

MTD 753-06040

D-Handle Bolt

$6.99

$

In Stock, Qty 7

0

9

MTD 753-06215

Clamp Hardware

$2.99

$

Usually ships in 3-6 days

0

10

MTD 753-06330

Lower Shaft Housing Assembly

$22.99

$

In Stock, only 3 left!

0

11

MTD 753-08360

Shield Assembly (Incl. 12 & 13)

$15.99

$

In Stock, Qty 7

0

12

MTD 753-04282

Shield Mounting Hardware

$25.99

$

In Stock, only 3 left!

0

13

MTD 753-08355

Blade Assembly

$4.49

$

In Stock, Qty 19

0

14

MTD 753-06165

Gearbox Assembly (Incl. 15 - 20)

$50.99

$

In Stock, Qty 7

0

15

MTD 7039

Anti-Rotation Screw

$4.99

$

In Stock, Qty 9

0

16

MTD 753-04284

Outer Spool Assembly (Incl. 17)

$28.99

$

In Stock, Qty 20+

0

17

MTD 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

18

MTD 791-610317B

Spring

$10.99

$

In Stock, Qty 20+

0

19

MTD 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

20

MTD 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 20+

0

MTD 791-153577B

Reel & Line Assembly

Note: (Optional Accessory)

$28.99

$

In Stock, only 3 left!

0

MTD 753-06276

Allen Wrench

Note: (Optional Accessory)

$2.49

$

In Stock, only 2 left!

0

MTD OL-216-OM

Oil, 2-Cycle 16 OZ.

Note: (Optional Accessory)

$10.99

$

In Stock, Qty 9

0

MTD 22216

32 oz. Sta-Bil fuel Additive
(Superseded to 22287)

Note: (Optional Accessory)

$16.99

$

Usually ships in 3-6 days

0

MTD 791-610375

Replacement Line-.080, 50 ft. packet

Note: (Optional Accessory)

$

$

Not available
