M 254 - Shindaiwa Multi-Tool Powerhead (SN: T76414001001 - T76414999999) CARBURETOR Parts Diagram

Multi-Tool Powerhead

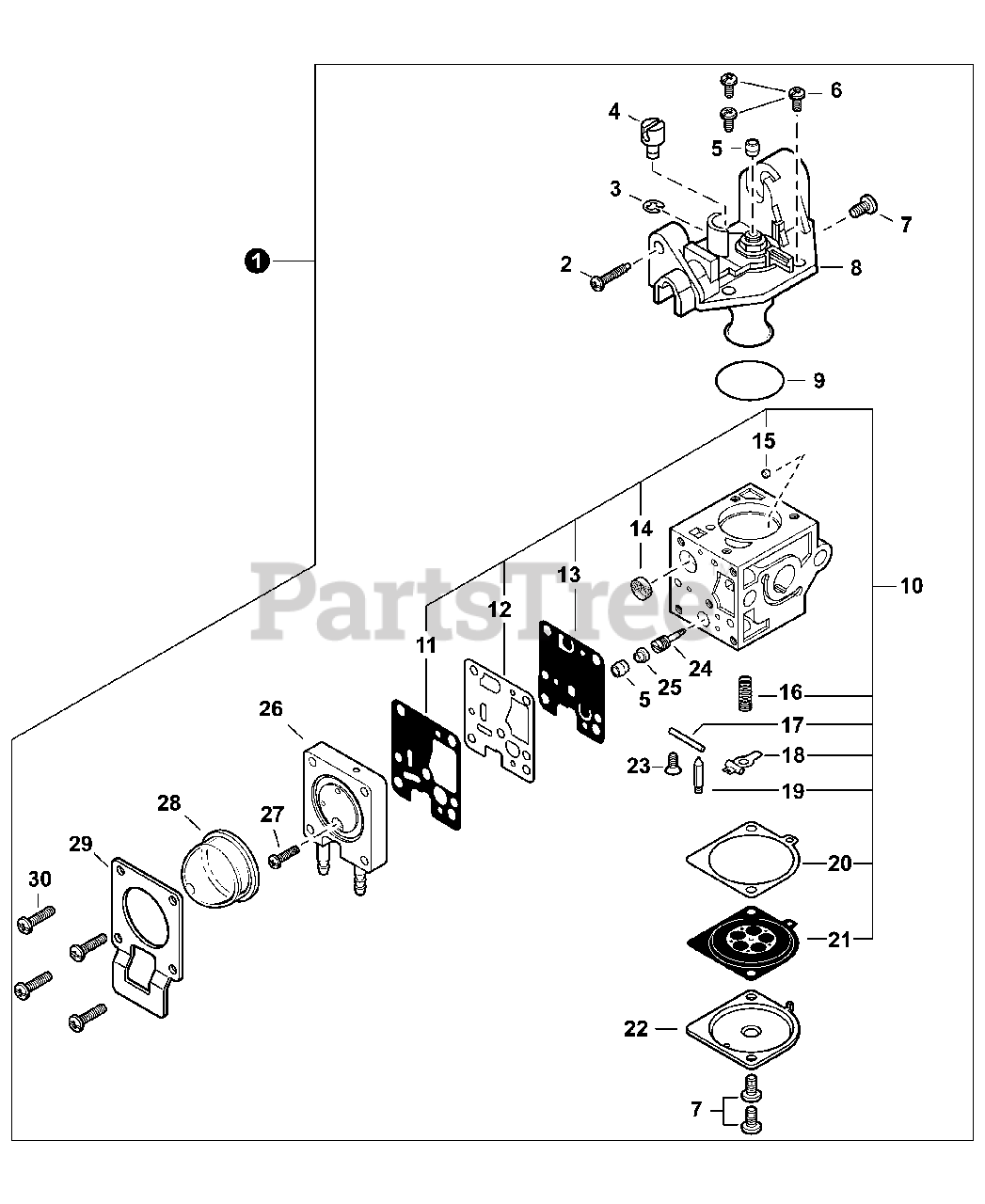

CARBURETOR Parts Diagram

  • Title

1

Echo A021003292

CARBURETOR - RB-K99

Note: Includes Items 2-30

$106.99

$

Usually ships in 2-4 days

0

2

Echo P005002110

SCREW, THROTTLE ADJUST

$4.99

$

Usually ships in 2-4 days

0

3

Echo P005000190

E-RING

$0.99

$

In Stock, Qty 9

0

4

Echo P005002090

SWIVEL

$4.99

$

Usually ships in 2-4 days

0

5

Echo P005001270

PLUG

$1.49

$

In Stock, Qty 20+

0

6

Echo 12534413931

SCREW

$2.49

$

In Stock, Qty 10

0

7

Echo 12534452130

SCREW

$0.99

$

In Stock, Qty 8

0

8

Echo P005002100

COVER ASSY, ROTOR

$29.99

$

Usually ships in 2-4 days

0

9

Echo P005000280

O-RING

$3.49

$

In Stock, Qty 20+

0

10

Echo P005002510

REPAIR KIT, CARBURETOR

Note: Includes Items 11-21

$25.99

$

In Stock, only 1 left!

0

11

Echo P005000230

DIAPHRAGM, SURGE

$3.99

$

In Stock, only 2 left!

0

12

Echo P005000220

GASKET, PUMP

$2.99

$

In Stock, only 3 left!

0

13

Echo P005000210

DIAPHRAGM, PUMP

$4.49

$

In Stock, only 3 left!

0

14

Echo P005000010

SCREEN, FUEL INLET

$0.99

$

Usually ships in 2-4 days

0

15

Echo P005001000

GUIDE, ROLLER

$1.99

$

In Stock, only 4 left!

0

16

Echo P005000940

SPRING, METERING LEVER

$0.99

$

Usually ships in 2-4 days

0

17

Echo 12533813930

PIN, METERING LEVER

$2.99

$

Usually ships in 2-4 days

0

18

Echo 12532308260

LEVER, METERING

$6.49

$

Usually ships in 2-4 days

0

19

Echo 12533708260

VALVE, INLET NEEDLE

$16.99

$

Usually ships in 2-4 days

0

20

Echo P005000200

GASKET, METERING DIAPHRAGM

$2.99

$

In Stock, only 2 left!

0

21

Echo P005002230

DIAPHRAGM, METERING

$12.99

$

Usually ships in 2-4 days

0

22

Echo 12534252130

COVER, METERING DIAPHRAGM

$3.99

$

Usually ships in 2-4 days

0

23

Echo 12533942030

SCREW

$0.99

$

In Stock, Qty 12

0

24

Echo P005001260

NEEDLE, HIGH SPEED

$5.99

$

In Stock, only 3 left!

0

25

Echo P005001250

CAP, LIMITER

$1.49

$

Usually ships in 2-4 days

0

26

Echo P005002130

BODY ASSY, PURGE

$19.99

$

Usually ships in 2-4 days

0

27

Echo P005000270

SCREW

$1.49

$

In Stock, Qty 20+

0

28

Echo P005003110

BULB, PURGE

$6.99

$

In Stock, Qty 20+

0

29

Echo P005000250

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 20+

0

30

Echo P005001900

SCREW

$0.99

$

In Stock, Qty 20+

0
