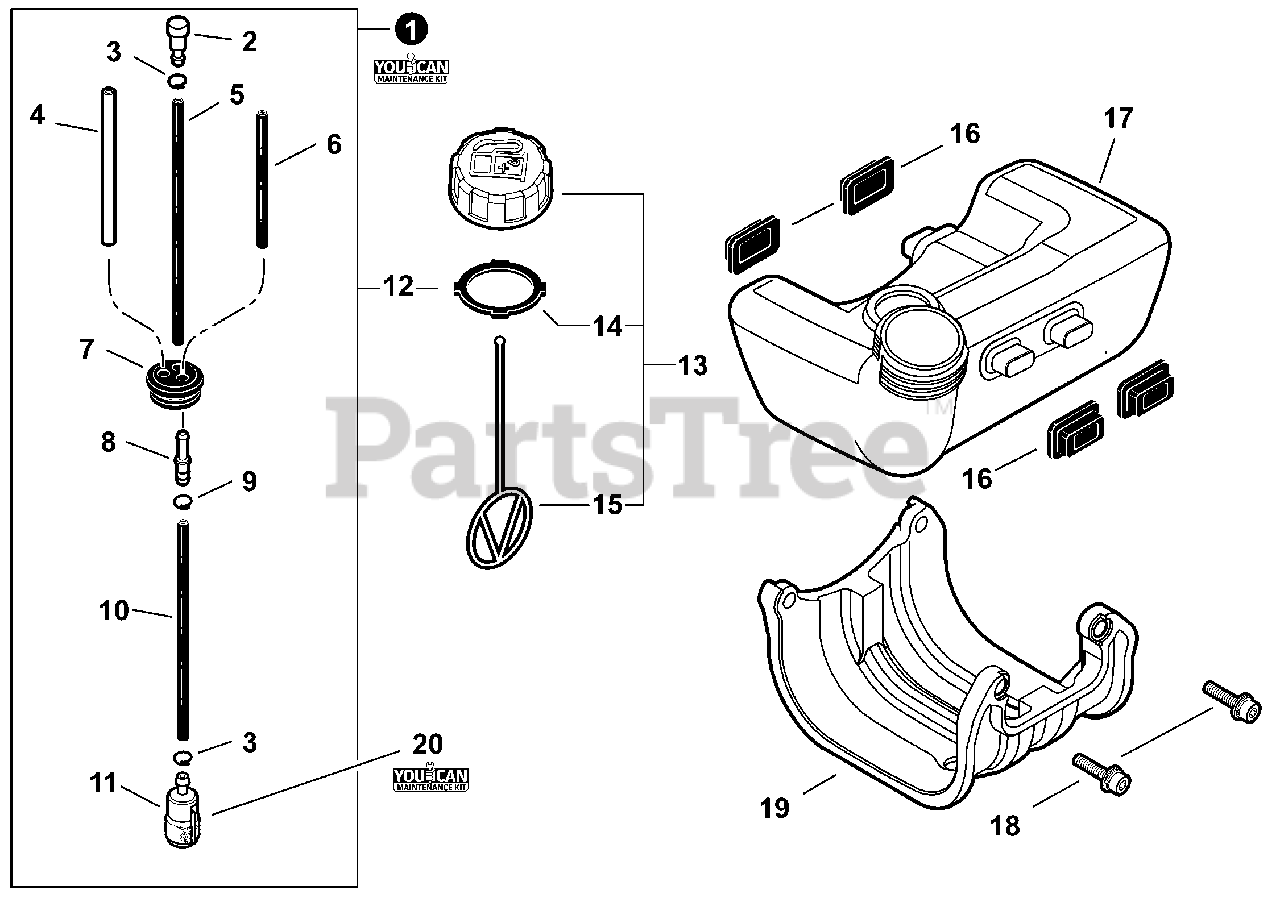

M 254 - Shindaiwa Multi-Tool Powerhead (SN: T76414001001 - T76414999999) FUEL SYSTEM Parts Diagram

Multi-Tool Powerhead

FUEL SYSTEM Parts Diagram

  • Title

1

Echo 84008Y

FUEL SYSTEM KIT - YOUCANT
(Superseded to Discontinued)

Note: Includes Items 2-12 See Maintenance Kits

$

$

Not available

2

Echo A356000050

VENT ASSY

$9.49

$

In Stock, Qty 10

0

3

Echo V490000500

CLIP 6

$1.49

$

In Stock, Qty 20+

0

4

Echo 13201256030

PIPE, FUEL 3x6x80 YELLOW

$3.49

$

In Stock, Qty 20+

0

5

Echo V471000760

PIPE 3x6x90 MM
(Superseded to V471000761)

$1.99

$

In Stock, only 4 left!

0

6

Echo V471003710

PIPE, FUEL - 3x5x67 - BLACK
(Superseded to V471005600)

$3.49

$

In Stock, only 3 left!

0

7

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.99

$

In Stock, Qty 20+

0

8

Echo V186000520

CONNECTOR, PIPE 5x3.5

$0.99

$

In Stock, Qty 12

0

9

Echo V490001230

CLIP 6.5 MM

$0.99

$

In Stock, Qty 20+

0

10

Echo V470001970

PIPE, FUEL 3x6x120 BLACK

$6.49

$

Usually ships in 2-4 days

0

11

Echo A369000440

FILTER, FUEL

$7.99

$

In Stock, Qty 20+

0

12

Echo V107000150

GASKET, FUEL CAP

$4.99

$

In Stock, Qty 20+

0

13

Echo P021041930

CAP ASSY, FUEL

Note: Includes Items 14-15

$6.49

$

In Stock, Qty 20+

0

14

Echo V107000150

GASKET, FUEL CAP

$4.99

$

In Stock, Qty 20+

0

15

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 20+

0

16

Echo V420002220

CUSHION, FUEL TANK

$1.49

$

In Stock, Qty 20+

0

17

Echo A350001980

TANK, FUEL

$51.99

$

In Stock, only 1 left!

0

18

Echo V203000800

BOLT M5x20

$1.49

$

In Stock, only 1 left!

0

19

Echo A175000220

GUARD, PLASTIC FUEL TANK

$13.99

$

In Stock, only 2 left!

0

20

Echo 84019Y

TUNE-UP KIT - YOUCANT

Note: See Maintenance Kits

$27.99

$

Usually ships in 2-4 days

0
