M 48 (953534501) - Husqvarna Walk-Behind Mower (2004-06) FRAME 2 Parts Diagram

Walk-Behind Mower

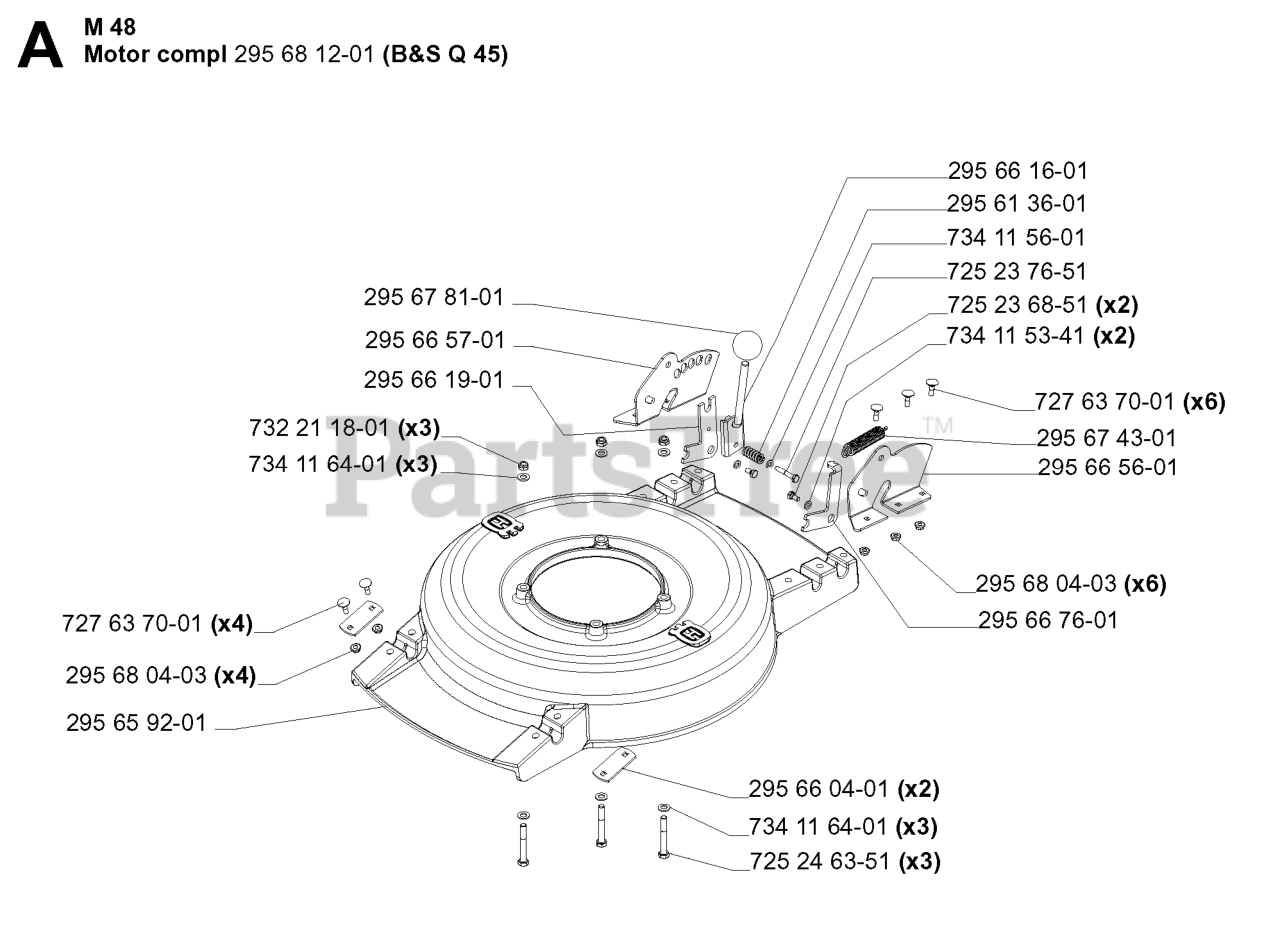

FRAME 2 Parts Diagram

  • Title

295 61 36-01

Husqvarna 295613601

SPRING M53 / M48

$5.99

$

Usually ships in 3-10 days

0

725 23 68-51

Husqvarna 725236851

Screw

$

$

Not available

295 65 92-01

Husqvarna 295659201

CHASSIS M48

$

$

Not available

725 23 76-51

Husqvarna 725237651

BOLT FLANGE

$7.49

$

In Stock, only 1 left!

0

727 63 70-01

Husqvarna 727637001

REPL BY 515 71 16-20
(Superseded to 515711620)

$

$

Not available

732 21 18-01

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

295 66 16-01

Husqvarna 295661601

LEVER ASSY M53 / M48 M48

$

$

Not available

734 11 56-01

Husqvarna 734115601

WASHER
(Superseded to 734492601)

$

$

Not available

295 66 19-01

Husqvarna 295661901

LINK ARM M48

$

$

Not available

295 66 56-01

Husqvarna 295665601

NEEDS DESCRIPTION

$

$

Not available

734 11 53-41

Husqvarna 734115341

Washer

$

$

Not available

295 66 04-01

Husqvarna 295660401

NEEDS DESCRIPTION

$

$

Not available

295 66 76-01

Husqvarna 295667601

LEVER M48

$

$

Not available

295 68 04-03

Husqvarna 295680403

LOCKING NUT FLANGE

$

$

Not available

295 68 04-03

Husqvarna 295680403

LOCKING NUT FLANGE

$

$

Not available

734 11 64-01

Husqvarna 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

295 67 43-01

Husqvarna 295674301

SPRING M53 / M48

$

$

Not available

295 67 81-01

Husqvarna 295678101

BALL M53 / M48

$

$

Not available

727 63 70-01

Husqvarna 727637001

REPL BY 515 71 16-20
(Superseded to 515711620)

$

$

Not available

295 66 57-01

Husqvarna 295665701

NEEDS DESCRIPTION

$

$

Not available

725 24 63-51

Husqvarna 725246351

SCREW

$5.99

$

In Stock, only 4 left!

0
