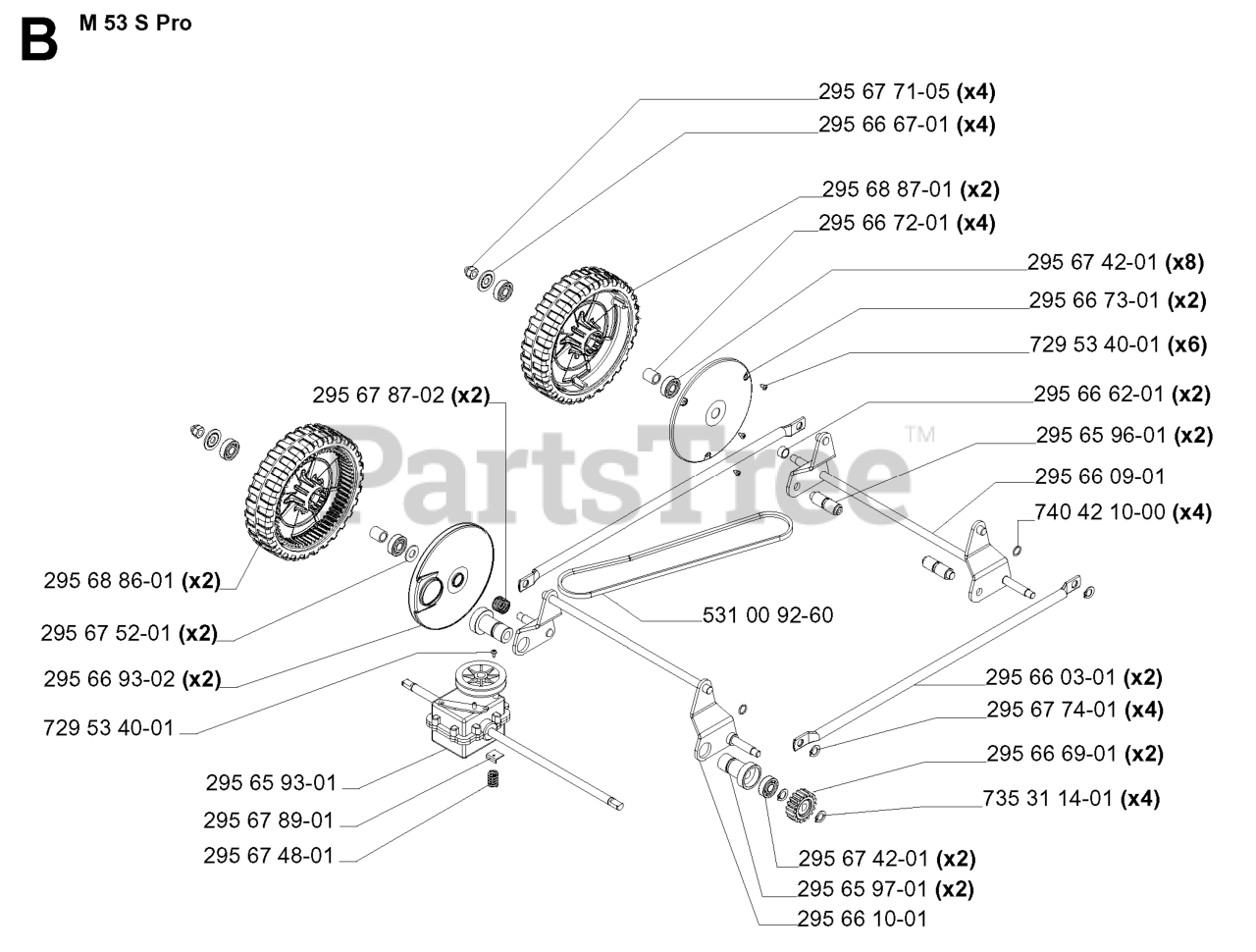

M 53 S Pro (953534801) - Husqvarna Walk-Behind Mower (2004-06) WHEELS & TIRES 2 Parts Diagram

Walk-Behind Mower

WHEELS & TIRES 2 Parts Diagram

  • Title

295 66 73-01

Husqvarna 295667301

SHIELD PRO

$

$

Not available

295 68 86-01

Husqvarna 295688601

WHEEL ASSY PRO, DRIVING

$

$

Not available

295 67 74-01

Husqvarna 295677401

RING M53S / M48S

$

$

Not available

295 67 52-01

Husqvarna 295675201

SPACER WASHER M53S / M48S

$

$

Not available

295 66 62-01

Husqvarna 295666201

SPACER M53 L=9

$

$

Not available

295 67 71-05

Husqvarna 295677105

NUT M53S / M48S

$

$

Not available

295 65 93-01

Husqvarna 295659301

GEAR BOX M53S

$

$

Not available

295 67 87-02

Husqvarna 295678702

SPRING M53 / M48

$

$

Not available

295 67 89-01

Husqvarna 295678901

BRACKET M53 / M48

$

$

Not available

295 67 48-01

Husqvarna 295674801

SPRING M53S / M48S

$

$

Not available

295 66 69-01

Husqvarna 295666901

PINION PRO

$

$

Not available

729 53 40-01

Husqvarna 729534001

SCREW RXS B8X9.5

$4.99

$

In Stock, Qty 11

0

295 66 03-01

Husqvarna 295660301

ROD M53

$

$

Not available

729 53 40-01

Husqvarna 729534001

SCREW RXS B8X9.5

$4.99

$

In Stock, Qty 11

0

295 65 96-01

Husqvarna 295659601

SHAFT M53 / M48

$

$

Not available

735 31 14-01

Husqvarna 735311401

NEEDS DESCRIPTION

$

$

Not available

295 67 42-01

Husqvarna 295674201

BALL BEARING 6201-2RS/C3 W10

$

$

Not available

295 68 87-01

Husqvarna 295688701

WHEEL ASSY PRO

$

$

Not available

531 00 92-60

Husqvarna 531009260

NEEDS DESCRIPTION

$

$

Currently unavailable

295 66 93-02

Husqvarna 295669302

SHIELD PRO

$

$

Not available

295 66 67-01

Husqvarna 295666701

WASHER M48

$

$

Not available

295 67 42-01

Husqvarna 295674201

BALL BEARING 6201-2RS/C3 W10

$

$

Not available

740 42 10-00

Husqvarna 740421000

RETAINING RING

$6.49

$

In Stock, Qty 9

0

295 66 72-01

Husqvarna 295667201

SPACER PRO

$

$

Not available

295 66 10-01

Husqvarna 295661001

AXLE ASSY M53S PRO

$

$

Not available

295 65 97-01

Husqvarna 295659701

SHAFT M53S / M48S

$

$

Not available

295 66 09-01

Husqvarna 295660901

AXLE ASSY M53 PRO

$

$

Not available
