M 924E (1696172-02) - Snapper 24" Snow Thrower, 9hp Engine & Frame Group - 9TP Parts Diagram

24" Snow Thrower, 9hp

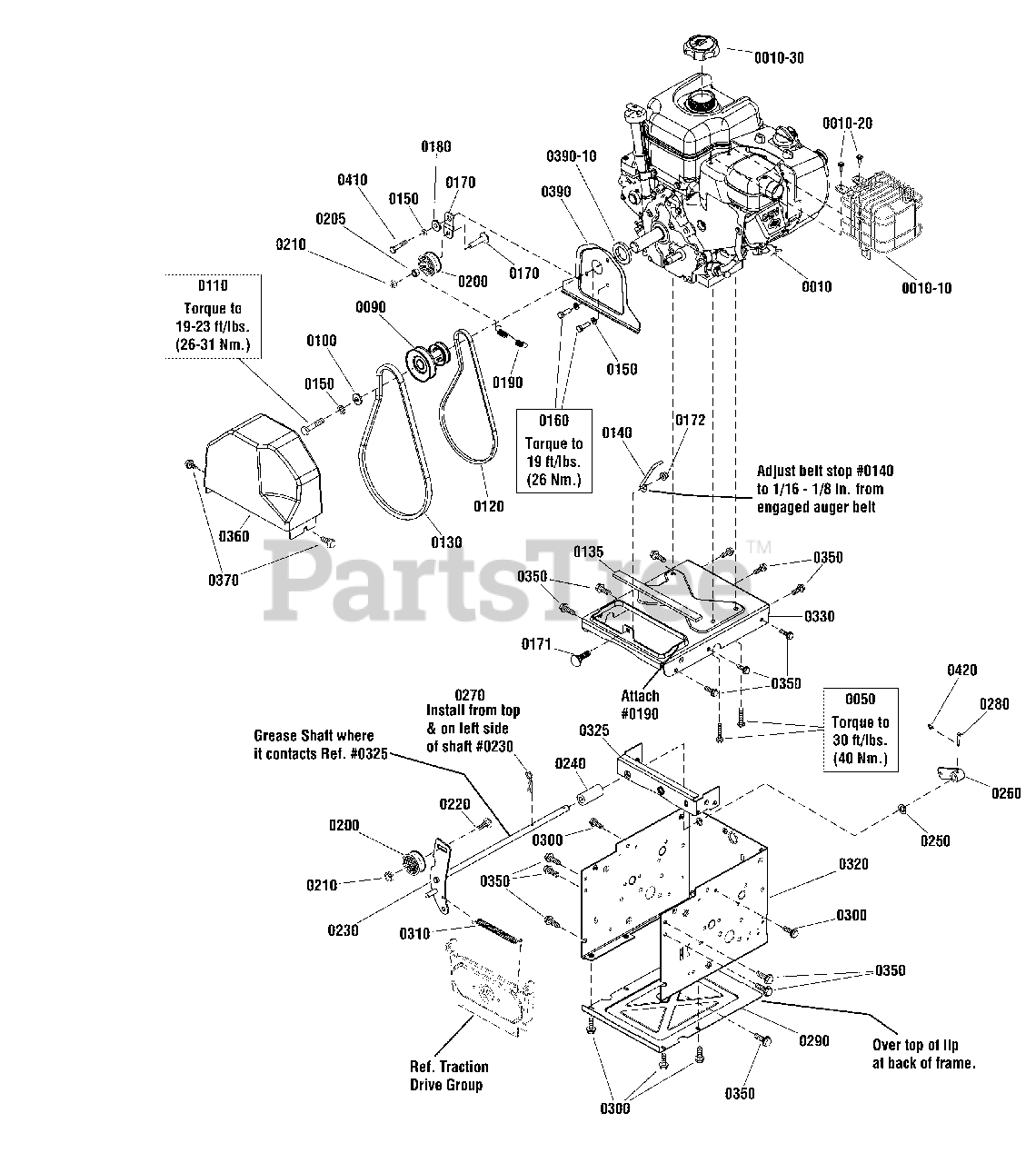

Engine & Frame Group - 9TP Parts Diagram

  • Title

0010

Snapper 12D107-0163-F8

* ENGINE, 9TP Briggs & Stratton, Model: 12D107-0163-F8

$

$

Not available

0010-10

Snapper 797003

* GUARD, Muffler

$45.99

$

In Stock, only 1 left!

0

0010-20

Snapper 699854

* SCREW, Muffler Guard

$3.99

$

In Stock, Qty 18

0

0010-30

Snapper 792647

* CAP, Fuel
(Superseded to 795027)

$10.99

$

In Stock, only 3 left!

0

0050

Snapper 75246

SCREW, Hex Head, Trilobular, 3/8-16 x 1-1/4
(Superseded to 75246GS)

$3.99

$

Usually ships in 2-12 days

0

0090

Snapper 1739514

PULLEY
(Superseded to 1739514YP)

$42.99

$

Usually ships in 2-12 days

0

0100

Snapper 1919381

WASHER, 5/16
(Superseded to 1919381SM)

$4.49

$

In Stock, Qty 9

0

0110

Snapper 722041

CAPSCREW, Hex Head, 5/16-24, 1-3/4, G5
(Superseded to 7091513YP)

$4.49

$

In Stock, Qty 14

0

0120

Snapper 1733324

V-BELT, Traction Drive, 3L, 33.13
(Superseded to 1733324SM)

$19.99

$

In Stock, Qty 20+

0

0130

Snapper 724801

BELT, Auger Drive, V4L 38.10
(Superseded to 585416MA)

$22.99

$

In Stock, Qty 12

0

0135

Snapper 1750314

SEAL, Strip
(Superseded to 1750314YP)

$8.99

$

Usually ships in 2-12 days

0

0140

Snapper 1737377

STOP, Belt
(Superseded to 1737377YP)

$11.99

$

In Stock, only 1 left!

0

0150

LOCKWASHER, Spring, 5/16

$

$

Not available

0160

Snapper 1921515

CAPSCREW, Hex Head, 5/16-24 x 3/4 G5
(Superseded to 1921515SM)

$3.99

$

Usually ships in 2-12 days

0

0170

Snapper 1739846

IDLER BRACKET
(Superseded to 1739846YP)

$8.99

$

Usually ships in 2-12 days

0

0171

Snapper 1931335

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

0172

Snapper 1960684

NUT, Hex Keps Conical Washer, 5/16-18
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

0180

BUSHING, Idler Bracket

$

$

Not available

0190

Snapper 722457

SPRING, Extension, Idler
(Superseded to 165X164MA)

$7.49

$

In Stock, Qty 6

0

0200

Snapper 722378

IDLER
(Superseded to 1502120MA)

$21.99

$

In Stock, only 1 left!

0

0205

Snapper 7091299

NUT, Hex, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0210

Snapper 1960251

NUT, Hex Center Lock, Jam, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, only 2 left!

0

0220

Snapper 724823

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2, G5
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

0230

Snapper 1739574

AUGER IDLER
(Superseded to 1739574YP)

$38.99

$

Usually ships in 2-12 days

0

0240

Snapper 1739964

SPACER, Auger Bracket
(Superseded to 1739964YP)

$9.49

$

Usually ships in 2-12 days

0

0250

Snapper 80003590

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0260

Snapper 1733451

ARM, Control
(Superseded to 1733451SM)

$20.99

$

In Stock, Qty 5

0

0270

Snapper 725367

PIN, Hair, 3/8
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0280

Snapper 1736381

PIN, Clevis
(Superseded to 703313)

$4.99

$

In Stock, Qty 8

0

0290

Snapper 1737221BM

PANEL, Bottom
(Superseded to 1737221BMYP)

$43.99

$

Usually ships in 2-12 days

0

0300

Snapper 1927429

SCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0

0310

Snapper 722455

SPRING, Extension, Auger
(Superseded to 165X159MA)

$6.99

$

In Stock, Qty 10

0

0320

Snapper 1739107D

FRAME
(Superseded to 1739107DYP)

$90.99

$

Usually ships in 2-12 days

0

0325

Snapper 1739093A

BRACKET, Auger & Traction Rod Mounting
(Superseded to 1739093BMYP)

$19.99

$

Usually ships in 2-12 days

0

0330

Snapper 1754138D

PLATE, Engine
(Superseded to 1754138DYP)

$67.99

$

Usually ships in 2-12 days

0

0350

Snapper 1664847

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0360

Snapper 1750551

COVER, Belt
(Superseded to 1750551YP)

$26.99

$

In Stock, only 1 left!

0

0370

Snapper 1751355

SCREW, Hex Washer Head, Tap, SEMS, 1/4-20 x 3/4
(Superseded to 1751355YP)

$6.49

$

Usually ships in 2-12 days

0

0390

Snapper 1733868A

PLATE, Seal
(Superseded to 1733868BMYP)

$13.99

$

In Stock, only 1 left!

0

0390-10

Snapper 1733898

SEAL, Foam
(Superseded to 1733898SM)

$6.49

$

Usually ships in 2-12 days

0

0410

Snapper 725996

BOLT, Hex, 5/16-24 x 1
(Superseded to 703301)

$3.99

$

In Stock, Qty 6

0

0420

Snapper 7023590

PIN, Cotter, Self Lockkng, 1/4
(Superseded to 7023590SM)

$3.99

$

In Stock, Qty 20+

0
