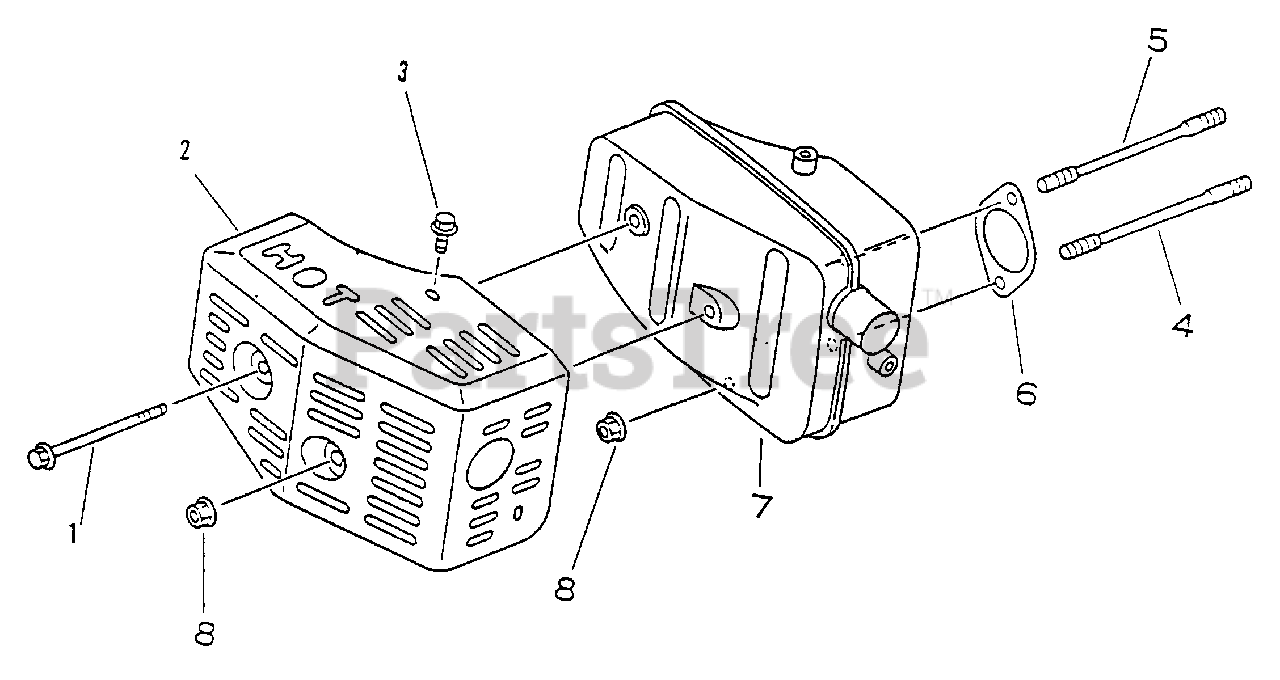

M14V A1Z0 - Echo Lawn Mower Engine Exhaust Parts Diagram

Lawn Mower Engine

Exhaust Parts Diagram

  • Title

1

Echo 90010306080

BOLT - 6×80
(Superseded to Discontinued)

$

$

Not available

2

Echo 14562111720

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

3

Echo 90010706010

SCREW - 6×10

$0.99

$

Usually ships in 2-4 days

0

4

Echo 10101411720

BOLT, STUD

Note: SOME EARLY MODELS LME-140 USED MUFFLER 14561011620 (NOT AVAILABLE), USE 14561011720. WHEN REPLACING WITH 14561011720, LOWER STUD (KEY 5) SHOULD BE REPLACED WITH KEY 12.

$3.49

$

Usually ships in 2-4 days

0

5

Echo 10101411620

BOLT, STUD
(Superseded to Discontinued)

$

$

Not available

6

Echo 14551011621

GASKET, MUFFLER

$7.99

$

Usually ships in 2-4 days

0

7

Echo 14561011720

MUFFLER
(Superseded to Discontinued)

Note: SOME EARLY MODELS LME-140 USED MUFFLER 14561011620 (NOT AVAILABLE), USE 14561011720. WHEN REPLACING WITH 14561011720, LOWER STUD (KEY 5) SHOULD BE REPLACED WITH KEY 12.

$

$

Not available

8

Echo 90051500008

NUT, FLANGE M8

$1.99

$

In Stock, Qty 5

0
