M14V B2Z0 - Echo Lawn Mower Engine Starter, Ignition, Engine Brake Parts Diagram

Lawn Mower Engine

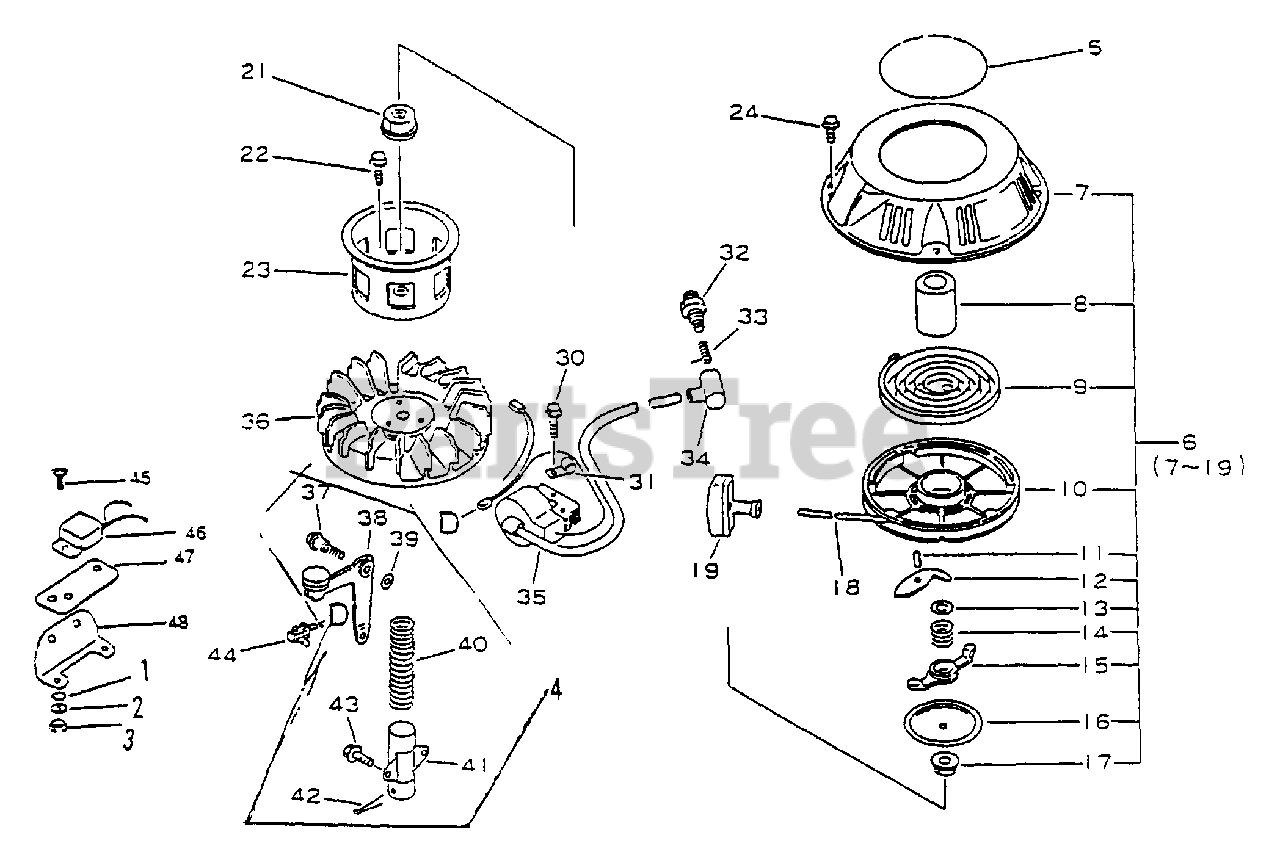

Starter, Ignition, Engine Brake Parts Diagram

  • Title

1

Echo 90060000004

WASHER 4 MM

Note: NOT USED ON MODEL C3X0 AND D1X0

$0.99

$

In Stock, Qty 9

0

2

Echo 900605-00004

WASHER, SPRING 4 MM

Note: NOT USED ON MODEL C3X0 AND D1X0

$0.99

$

In Stock, Qty 20+

0

3

Echo 900500-00004

NUT M4

Note: NOT USED ON MODEL C3X0 AND D1X0

$0.99

$

In Stock, Qty 20+

0

4

Echo 19000011620

CHAIN BRAKE ASSY
(Superseded to Discontinued)

Note: INCL 37 - 43; NOT USED ON MODEL C3X0 AND D1X0

$

$

Not available

5

Echo 89011811720

LABEL - ECHO

$2.49

$

Usually ships in 2-4 days

0

6

Echo 17720011621

STARTER ASSY

Note: INCL 7 - 19 ROTATE TO CORRECT PULLING DIRECTION. DEPENDING ON APPLICATION CUT ROPE FOR BBC MODELS - SEE ENGINE APPLICATION MANUAL

$181.99

$

Usually ships in 2-4 days

0

7

Echo 17723211621

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

8

Echo 17721611620

BUSHING
(Superseded to Discontinued)

$

$

Not available

9

Echo 17722011620

SPRING, RECOIL

$21.99

$

Usually ships in 2-4 days

0

10

Echo 17721511620

REEL, ROPE

$19.99

$

Usually ships in 2-4 days

0

11

Echo 17721911620

PIN
(Superseded to Discontinued)

$

$

Not available

12

Echo 17721811620

PAWL, STARTER
(Superseded to Discontinued)

$

$

Not available

13

Echo 17721411620

WASHER
(Superseded to Discontinued)

$

$

Not available

14

Echo 17723311620

SPRING
(Superseded to Discontinued)

$

$

Not available

15

Echo 17727711620

GUIDE, PAWL

$2.49

$

Usually ships in 2-4 days

0

16

Echo 17721111620

PLATE, FRICTION
(Superseded to Discontinued)

$

$

Not available

17

Echo 90051800006

NUT, FLANGE M6

$1.99

$

In Stock, Qty 20+

0

18

Echo 17722611620

ROPE, STARTER

$6.49

$

Usually ships in 2-4 days

0

19

Echo 17722811620

GRIP, STARTER

$13.99

$

In Stock, only 3 left!

0

20

Echo 17724411620

CAP
(Superseded to Discontinued)

$

$

Not available

21

Echo 90051700010

NUT, 10 L-H

$2.99

$

Usually ships in 2-4 days

0

22

Echo 90010306010

BOLT - 6×10
(Superseded to 90010706010)

$0.99

$

Usually ships in 2-4 days

0

23

Echo 17721011620

CATCHER, PAWL
(Superseded to Discontinued)

$

$

Not available

24

Echo 90010706010

SCREW - 6×10

$0.99

$

Usually ships in 2-4 days

0

30

Echo 90010306025

BOLT - 6×25
(Superseded to Discontinued)

$

$

Not available

31

Echo 15911011620

CLIP
(Superseded to Discontinued)

$

$

Not available

32

Echo 15901012330

SPARK PLUG - BPM6A
(Superseded to Discontinued)

$

$

Not available

33

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

34

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 19

0

35

Echo 15662611621

COIL, IGNITION

Note: THIS IS A UNIVERSAL MODULE (LEADS PROVIDED FOR CHUTE, CARB & BRAKE SHUT OFF).

$150.99

$

Usually ships in 2-4 days

0

36

Echo 15680011620

FLYWHEEL

$126.99

$

Usually ships in 2-4 days

0

37

Echo 19001511620

SHAFT, BRAKE ARM
(Superseded to Discontinued)

Note: NOT USED ON MODEL C3X0 AND D1X0 AVAILABLE IN KIT FORM, ORDER P/N 19000011620

$

$

Not available

38

Echo 19000511620

BRAKE ARM ASSY
(Superseded to Discontinued)

Note: NOT USED ON MODEL C3X0 AND D1X0 AVAILABLE IN KIT FORM, ORDER P/N 19000011620

$

$

Not available

39

Echo 17501404630

WASHER 6

Note: NOT USED ON MODEL C3X0 AND D1X0 AVAILABLE IN KIT FORM, ORDER P/N 19000011620

$2.49

$

In Stock, Qty 20+

0

40

Echo 19001611620

SPRING
(Superseded to Discontinued)

Note: NOT USED ON MODEL C3X0 AND D1X0 AVAILABLE IN KIT FORM, ORDER P/N 19000011620

$

$

Not available

41

Echo 19001811620

HOLDER, SPRING
(Superseded to Discontinued)

Note: NOT USED ON MODEL C3X0 AND D1X0 AVAILABLE IN KIT FORM, ORDER P/N 19000011620

$

$

Not available

42

Echo 90030030030

PIN, COTTER 3×30
(Superseded to Discontinued)

Note: NOT USED ON MODEL C3X0 AND D1X0 AVAILABLE IN KIT FORM, ORDER P/N 19000011620

$

$

Not available

43

Echo 90010306010

BOLT - 6×10
(Superseded to 90010706010)

Note: NOT USED ON MODEL C3X0 AND D1X0 AVAILABLE IN KIT FORM, ORDER P/N 19000011620

$0.99

$

Usually ships in 2-4 days

0

44

Echo 19005011620

SWITCH, IGNITION

$2.99

$

Usually ships in 2-4 days

0

45

Echo 90024204012

SCREW 4×12

Note: NOT USED ON MODEL C3X0 AND D1X0

$0.99

$

In Stock, Qty 20+

0

46

Echo 15260115130

COIL, IGNITION

Note: NOT USED ON MODEL C3X0 AND D1X0

$173.99

$

Usually ships in 2-4 days

0

47

Echo 15931811620

PLATE, EYE
(Superseded to Discontinued)

Note: NOT USED ON MODEL C3X0 AND D1X0

$

$

Not available

48

Echo 15931011620

BRACKET, IGNITION COIL
(Superseded to Discontinued)

Note: NOT USED ON MODEL C3X0 AND D1X0

$

$

Not available
