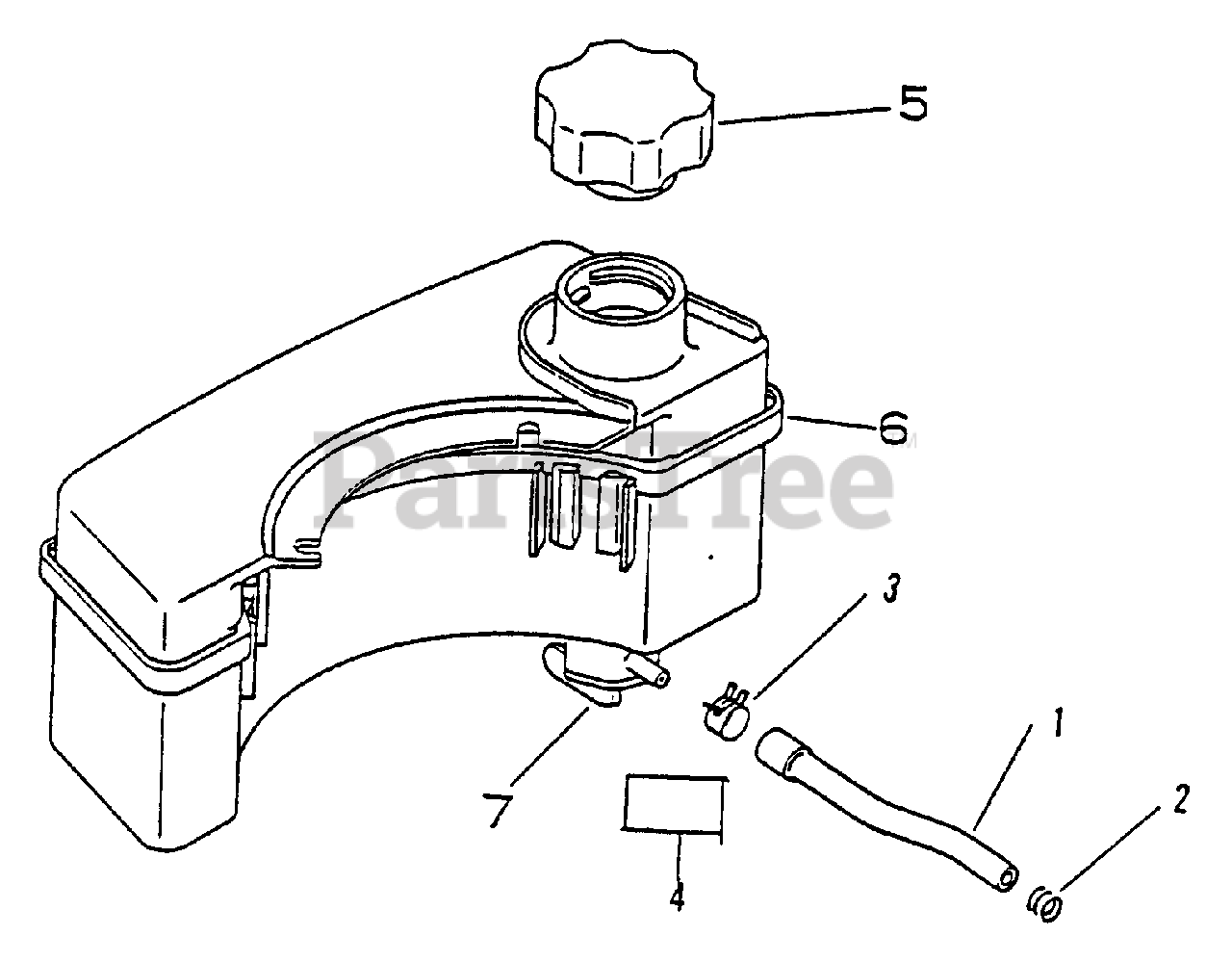

M14V C3X0 - Echo Lawn Mower Engine Fuel System Parts Diagram

Lawn Mower Engine

Fuel System Parts Diagram

  • Title

1

Echo 13201211620

PIPE - FUEL
(Superseded to Discontinued)

$

$

Not available

2

Echo 13201311620

CLIP
(Superseded to Discontinued)

$

$

Not available

3

Echo 13201311720

CLIP
(Superseded to Discontinued)

$

$

Not available

4

Echo 89015911620

LABEL - FUEL COCK
(Superseded to Discontinued)

$

$

Not available

5

Echo 13100611620

CAP, FUEL
(Superseded to Discontinued)

$

$

Not available

6

Echo 13100011620

FUEL TANK ASSY
(Superseded to Discontinued)

Note: INCL ITEM 7

$

$

Not available

7

Echo 13220411620

FUEL VALVE ASSY
(Superseded to Discontinued)

$

$

Not available

7

Echo 13220411621

FUEL VALVE ASSY

$13.99

$

Usually ships in 2-4 days
