M216KASPC - Exmark 21" Metro Self-Propelled Walk-Behind Mower, 6hp Kawasaki (SN: 370000 - 439999) (2003) Handle And Control Assembly Parts Diagram

21" Metro Self-Propelled Walk-Behind Mower, 6hp Kawasaki

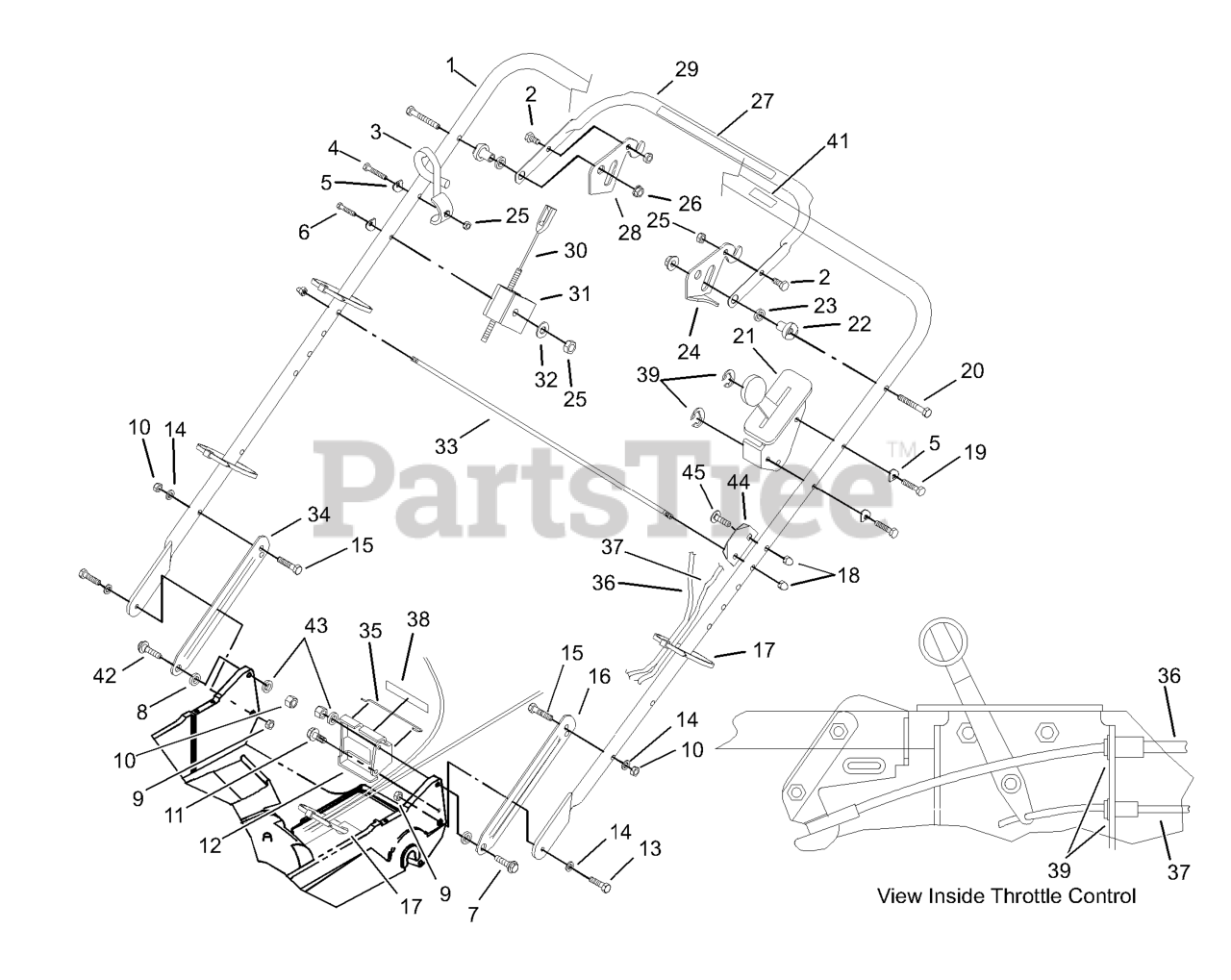

Handle And Control Assembly Parts Diagram

  • Title

1

Exmark 98-2000-03

HANDLE

$139.99

$

Usually ships in 3-6 days

0

2

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Exmark 46-8081

GUIDE-ROPE

$25.99

$

Usually ships in 3-6 days

0

4

Exmark 321-9

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

5

Exmark 3-7501

WASHER

$6.99

$

In Stock, Qty 6

0

6

Exmark 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

0

7

Exmark 27-7210

SCREW-SHOULDER

$8.49

$

In Stock, Qty 11

0

8

Exmark 3-3287

SPACER

$5.49

$

In Stock, Qty 13

0

9

Exmark 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

10

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

12

Exmark 74-1741

BRACKET-ADJUSTMENT, TRACT

$25.99

$

Usually ships in 3-6 days

0

13

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

14

Exmark 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

15

Exmark 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Exmark 103-0143

100-3298-03
(Superseded to 100-3298-03)

$20.99

$

In Stock, Qty 6

0

17

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

18

Exmark 32111-7

NUT-CAP

$8.49

$

In Stock, only 2 left!

0

19

Exmark 321-13

SCREW-HH

$4.99

$

In Stock, Qty 10

0

20

Exmark 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 20+

0

21

Exmark 103-3385

108-2645
(Superseded to 108-2645)

$128.99

$

In Stock, only 1 left!

0

22

Exmark 49-1630

SPACER-SUPPORT

$9.49

$

Usually ships in 3-6 days

0

23

Exmark 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

24

Exmark 66-5350

LEVER-CONTROL

$16.99

$

Usually ships in 3-6 days

0

25

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

26

Exmark 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, Qty 11

0

27

Exmark 1-213242

DISCONTINUED

$

$

Not available

28

Exmark 77-5270

LEVER-CONTROL

$32.99

$

Usually ships in 3-6 days

0

29

Exmark 61-8270-03

BAR-CONTROL

$115.99

$

Usually ships in 3-6 days

0

30

Exmark 103-2683

CABLE-BRAKE

$26.99

$

In Stock, only 2 left!

0

31

Exmark 46-6980

SUPPORT-CABLE

$17.99

$

In Stock, only 2 left!

0

32

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Exmark 48-2810

ROD-SUPPORT, BAG

$32.99

$

Usually ships in 3-6 days

0

34

Exmark 103-0142

100-3297-03
(Superseded to 100-3297-03)

$9.49

$

In Stock, only 4 left!

0

35

Exmark 46-7030

RETAINER-CABLE

$6.99

$

In Stock, only 2 left!

0

36

Exmark 74-1791

CABLE-TRACTION

$54.99

$

In Stock, Qty 6

0

37

Exmark 70-1061

106-0888
(Superseded to 106-0888)

$20.99

$

In Stock, Qty 7

0

38

Exmark 74-1970

DECAL-POSITION, GEAR

$7.49

$

In Stock, Qty 6

0

39

Exmark 32151-86

E-RING

$2.99

$

In Stock, Qty 20+

0

41

Exmark 104-1329

DECAL-PROTECTION, HEARING

$

$

Not available

42

Exmark 27-7211

SCREW-SHOULDER
(Superseded to 27-7211)

$5.49

$

In Stock, Qty 7

0

43

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

44

Exmark 104-1326

DISCONTINUED (EXMARK)
(Superseded to 104-8586)

$

$

Not available

45

Exmark 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0
